Product Number: 9269

93Ω RG-62A/U Type, #22 Sol BCCS, Semi-solid PE, BC Braid, PVC Jkt, CM

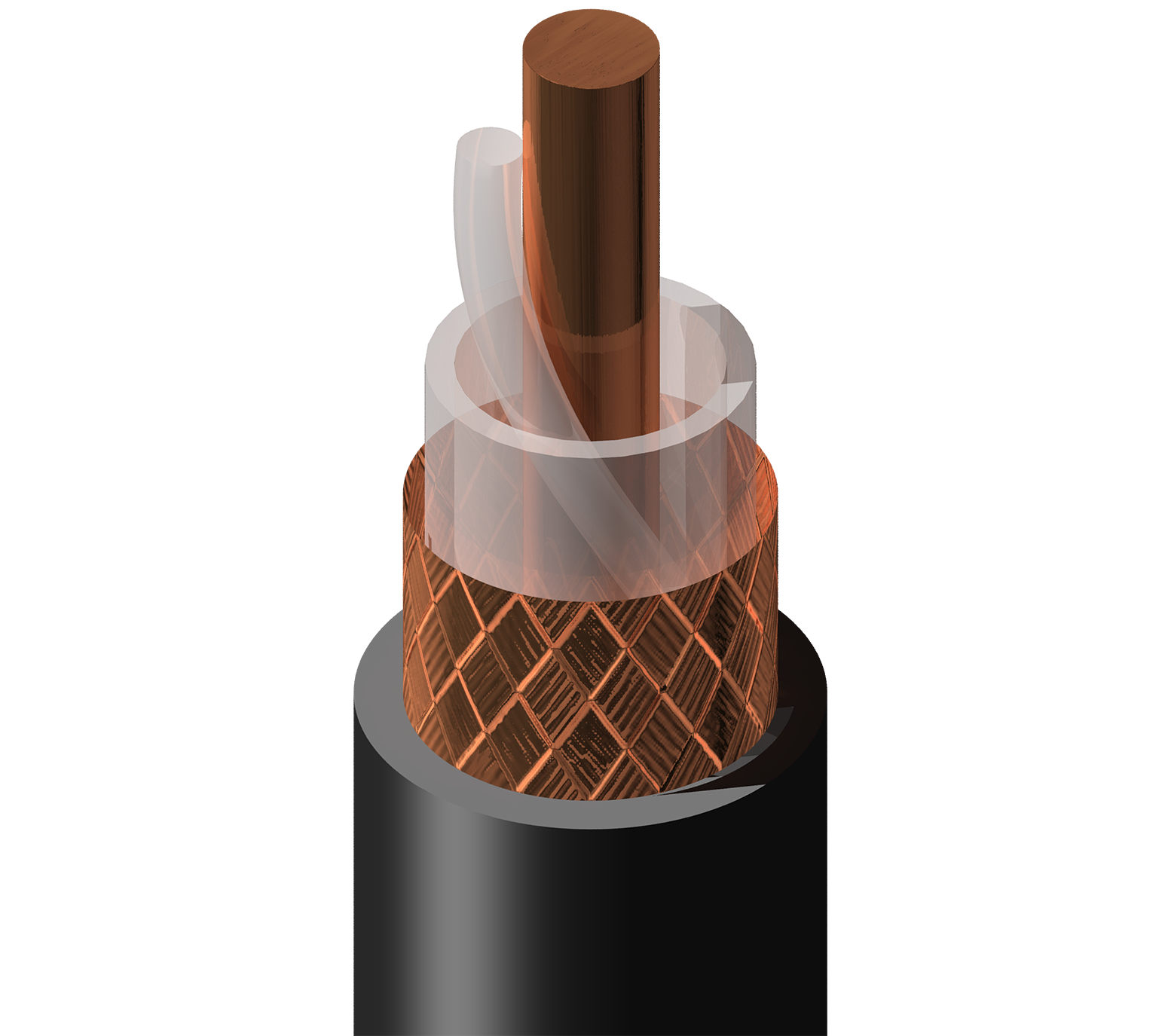

Coax 93Ω RG-62A/U Type, 22 AWG solid bare copper-covered steel, semi-solid polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket, CM

Availability: Global
Status: Active
Orderable items: 11

Ships from and sold by A5 IT.

Part numbers

9269 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
9269 A8RU1000	Beige	UnReel	1,000 ft	612825226079	Order online
9269 010500	Black	Reel	500 ft	612825226154	Order online
9269 010U500	Black	UnReel	500 ft	612825226109	Order online
9269 0101000	Black	Reel	1,000 ft	612825226116	Order online
9269 010U1000	Black	UnReel	1,000 ft	612825226093	Order online
9269 0101640	Black	Reel	1,640 ft	612825226123	Order online
9269 0102000	Black	Reel	2,000 ft	612825226130	Order online
9269 0103280	Black	Reel	3,280 ft	612825226147	Order online
9269 0105000	Black	Reel	5,000 ft	612825226161	Order online
9269 060U1000	Chrome	UnReel	1,000 ft	612825226178	Order online
9269 003U1000	Orange	UnReel	1,000 ft	612825226086	Order online

Specifications

Product Overview

Suitable Applications	Computer, Instrumentation

Construction Details

RG Type	62
Overall Cable Diameter (Nominal)	0.239 in (6.07 mm)

Conductor

Size	22 AWG
Stranding	Solid
Nom. Diameter	0.025 in
Material	BCCS - Bare Copper Covered Steel

Insulation

Material	PE - Polyethylene (Semi-Solid)
Nom. Insulation Diameter	0.146 in (3.71 mm)
Color Code	White
Notes	Solid PE monofilament spiral around conductor. Solid PE tube over monofilament

Outer Shield

Layer	1
Outer Shield Type	Braid
Material	Bare Copper (BC)
Coverage	95%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Diameter	0.239 in (6.07 mm)

Electrical Characteristics

Attenuation

Frequency	Nom. Attenuation
1 MHz	0.30 dB/100ft
10 MHz	0.90 dB/100ft
50 MHz	1.90 dB/100ft
100 MHz	2.70 dB/100ft
200 MHz	3.80 dB/100ft
400 MHz	5.30 dB/100ft
700 MHz	7.30 dB/100ft
900 MHz	8.20 dB/100ft
1000 MHz	8.70 dB/100ft

Electricals

Nom. Conductor DCR	41.2 Ohm/1000ft
Nom. Outer Shield DCR	2.9 Ohm/1000ft (9.5 Ohm/km)
Nom. Capacitance Cond-to-Shield	13.5 pF/ft (44.3 pF/m)
Nom. Characteristic Impedance	93 Ohm
Nom. Velocity of Prop.	84%

Voltage

UL Voltage Rating	300 V (CM), 30 V (UL AWM 1478)
Voltage Rating	300 V RMS

Mechanical Characteristics

Max. Pull Tension	88 lbs (40 kg)
Bulk Cable Weight	34 lbs/1000ft

Temperature

UL Temperature	60°C
Operating	-40°C to +60°C

Bend Radius

Installation Min.	2.4 in (61 mm)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Indoor, Sunlight Resistance - Black only, Aerial - When supported by messenger wire
Sustainability	CA Prop 65
Flammability / Reaction to Fire	UL1685 UL Loading
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	CL2, CM
AWM Compliance	AWM 1478
CEC / C(UL) Compliance	CM.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	P-MSHA-SC-182/3, IBM Part No. 323921
