Product Number: 9228

93Ω RG-62A/U Type, #22 Sol BCCS, Semi-solid PE, BC Braid, HDPE Jkt, Burial

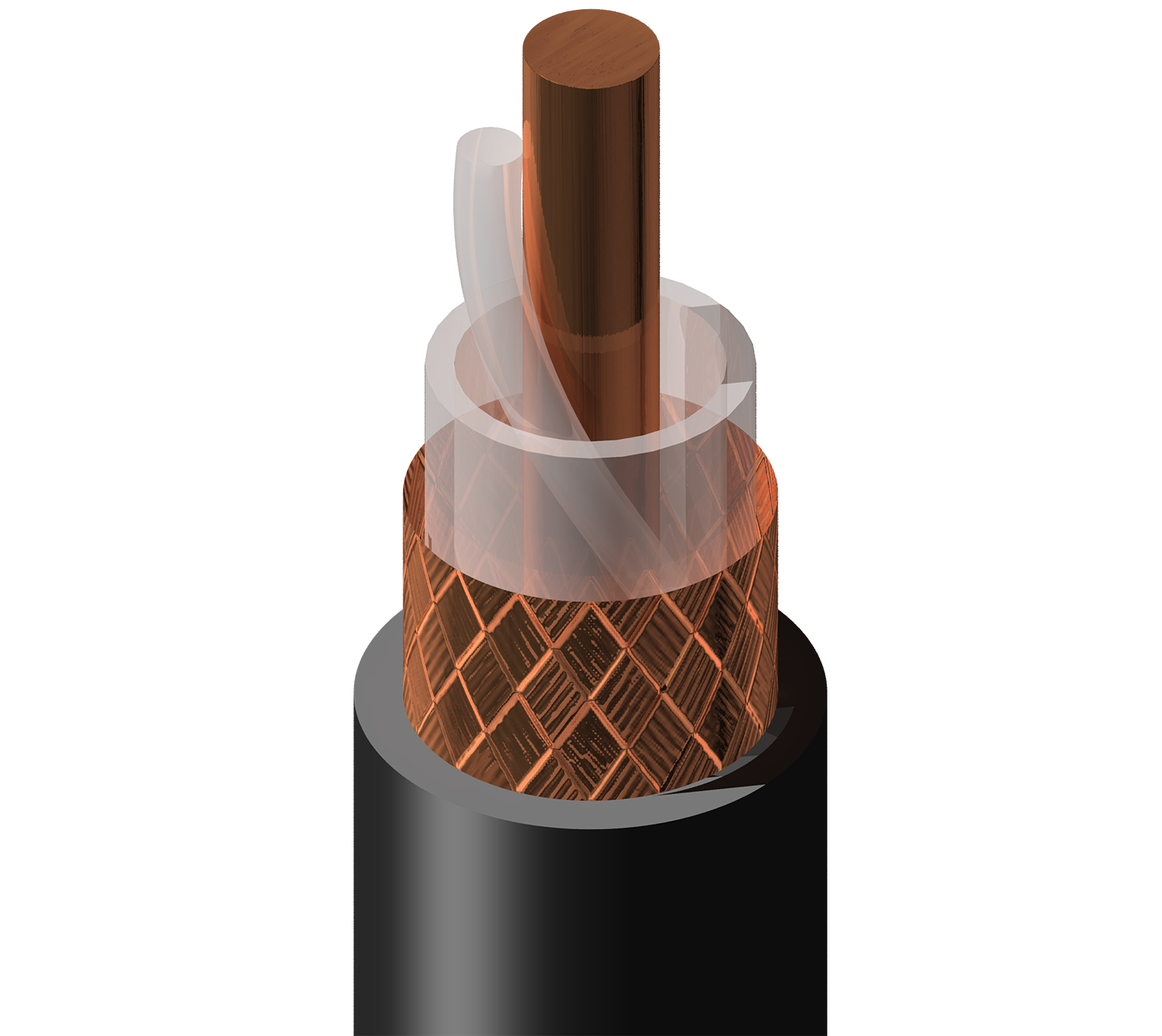

Coax 93Ω RG-62A/U Type, 22 AWG solid bare copper-covered steel, semi-solid polyethylene insulation, bare copper braid shield (95% coverage), high-density polyethylene jacket, Burial

Availability: Global
Status: Active
Orderable items: 4

Ships from and sold by A5 IT.

Part numbers

9228 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
9228 010500	Black	Reel	500 ft	612825225539	C	Order online
9228 0101000	Black	Reel	1,000 ft	612825225515	C	Order online
9228 0102000	Black	Reel	2,000 ft	612825225522	C	Order online
9228 0105000	Black	Reel	5,000 ft	612825225546	C	Order online

Specifications

Product Overview

Suitable Applications	Computer, Instrumentation

Construction Details

RG Type	62
Outer Jacket1 Table Notes	Flooding grease under jacket
Overall Cable Diameter (Nominal)	0.242 in (6.15 mm)

Conductor

Size	22 AWG
Stranding	Solid
Nom. Diameter	0.025 in
Material	BCCS - Bare Copper Covered Steel

Insulation

Material	PE - Polyethylene (Semi-Solid)
Nom. Insulation Diameter	0.146 in (3.71 mm)
Color Code	White
Notes	Solid PE monofilament spiral around conductor. Solid PE tube over monofilament

Outer Shield

Layer	1
Outer Shield Type	Braid
Material	Bare Copper (BC)
Coverage	95%

Outer Jacket

Material	PE - Polyethylene
Nom. Diameter	0.242 in (6.15 mm)

Electrical Characteristics

Attenuation

Frequency	Nom. Attenuation
1 MHz	0.25 dB/100ft
10 MHz	0.85 dB/100ft
50 MHz	1.90 dB/100ft
100 MHz	2.70 dB/100ft
200 MHz	3.80 dB/100ft
400 MHz	5.30 dB/100ft
700 MHz	7.30 dB/100ft
900 MHz	8.20 dB/100ft
1000 MHz	8.70 dB/100ft

Electricals

Nom. Conductor DCR	41.2 Ohm/1000ft
Nom. Outer Shield DCR	2.9 Ohm/1000ft (9.5 Ohm/km)
Nom. Capacitance Cond-to-Shield	13.5 pF/ft (44.3 pF/m)
Nom. Characteristic Impedance	93 Ohm
Nom. Velocity of Prop.	84%

Voltage

Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	88 lbs (40 kg)
Bulk Cable Weight	30 lbs/1000ft

Temperature

Operating	-55°C to +80°C

Bend Radius

Installation Min.	2.4 in (61 mm)

Standards and Compliance

Environmental Suitability	Outdoor - Aerial, Sunlight Resistance - Black only, Aerial - When supported by messenger wire
Sustainability	CA Prop 65
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
