Product Number: 9207

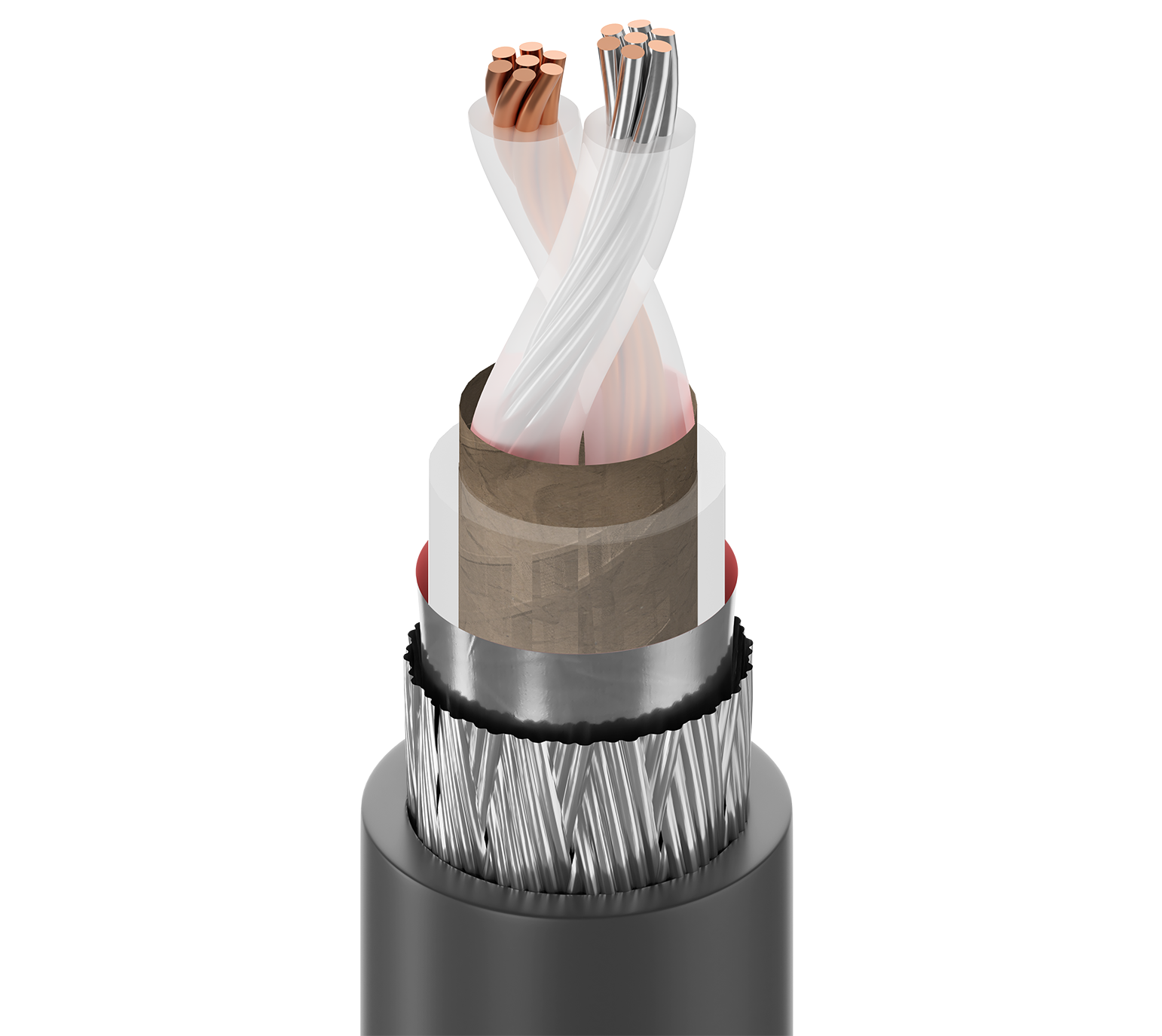

100Ω Twinax, 1 Pr #20 Str-1c TC/1c BC, PE Jkt, Duofoil®+TC Braid, PVC Jkt, CMG

Twinax 100Ω, 1 Pair, 20 AWG (7x28) one tinned copper, one bare copper conductor, polyethylene insulation, polyethylene inner jacket, Duofoil® (100% coverage) + a tinned copper braid shield (85% coverage), PVC outer jacket, CMG

Availability: Global
Status: Active
Orderable items: 7

Ships from and sold by A5 IT.

Part numbers

9207 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
9207 010100	Black	Reel	100 ft	612825225270	Order online
9207 010500	Black	Reel	500 ft	612825225324	Order online
9207 010U500	Black	UnReel	500 ft	612825225263	Order online
9207 0101000	Black	Reel	1,000 ft	612825225287	Order online
9207 0101640	Black	Reel	1,640 ft	612825225294	Order online
9207 0103280	Black	Reel	3,280 ft	612825225317	Order online
9207 0105000	Black	Reel	5,000 ft	612825225331	Order online

Specifications

Product Overview

Suitable Applications	Computer, Instrumentation

Construction Details

Overall Cable Diameter (Nominal)	0.330 in (8.38 mm)

Conductor

Size	Stranding	Nom. Diameter	Material
20 AWG	7x28	0.036 in	TC - Tinned Copper
20 AWG	7x28	0.036 in	BC - Bare Copper

Insulation

Material	Nom. Insulation Diameter	Color Code	Notes
PE - Polyethylene	0.083 in (2.1 mm)	Clear	PE on both conductors
PE - Polyethylene	0.236 in (5.99 mm)	Clear	PE over pair

Outer Shield

Layer	Outer Shield Type	Material	Material Trade Name	Coverage
1	Tape	Tri-Laminate (Alum+Poly+Alum)	Duofoil®	100%
2	Braid	Tinned Copper (TC)		85%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Diameter	0.330 in (8.38 mm)

Electrical Characteristics

Attenuation

Frequency	Nom. Attenuation
1 MHz	0.30 dB/100ft
10 MHz	1.20 dB/100ft
50 MHz	2.80 dB/100ft
100 MHz	4.10 dB/100ft
200 MHz	6.40 dB/100ft
400 MHz	10.20 dB/100ft

Electricals

Nom. Conductor DCR	9.5 Ohm/1000ft
Nom. Outer Shield DCR	2.0 Ohm/1000ft (6.6 Ohm/km)
Nom. Capacitance Cond-to-Shield	23.0 pF/ft (75.5 pF/m)
Nom. Characteristic Impedance	100 Ohm
Nom. Velocity of Prop.	66%

Voltage

UL Voltage Rating	300 V (CMG)

Mechanical Characteristics

Max. Pull Tension	112 lbs (50.8 kg)
Bulk Cable Weight	63 lbs/1000ft

Temperature

UL Temperature	75°C
Operating	-30°C to +75°C

Bend Radius

Installation Min.	3.5 in (89 mm)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Indoor, Aerial - Black only, When supported by messenger wire
Sustainability	CA Prop 65
Flammability / Reaction to Fire	UL1685 FT4 Loading, FT4
CPR Compliance	CPR Euroclass: Eca; CPR UKCA Class: Eca
NEC / UL Compliance	CL2, CMG
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	IBM Part No. 7362211
Plenum Number	89207
