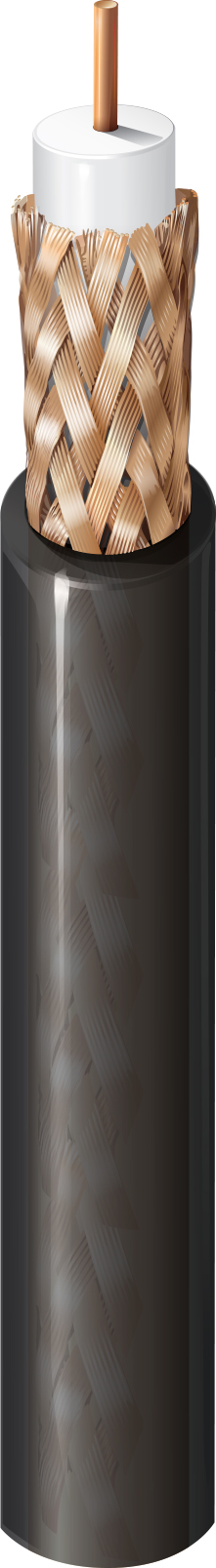

Surveillance CCTV, RG-59 #20 BC, 95% BC Braid, CMP-FHC 25/50
Surveillance & CCTV Cable, RG59, Plenum-CMP-FHC 25/50, 20 AWG bare copper foam FEP core, 95% bare copper braid, FEP jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
7986LC is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Put-Up Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 7986LC 010500 | Black | Reel | 500 ft | 612825192480 | Order online |
| 7986LC 0101000 | Black | Reel | 1,000 ft | 612825192473 | Order online |
Specifications
Product Overview
| Suitable Applications | Surveillance, CCTV Camera |
|---|
Physical Characteristics (Overall)
| Conductor Count | 1 |
|---|
Conductor
| AWG | 20 |
|---|---|
| Stranding | Solid |
| Material | BC - Bare Copper |
| Nominal Diameter | 0.032 in |
| No. of Coax | 1 |
Insulation
| Material | FEP - Fluorinated Ethylene Propylene (Foam) |
|---|---|
| Material Trade Name | Teflon® |
| Nominal Diameter | 0.133 in |
Outer Shield
| Type | Braid |
|---|---|
| Layer | 1 |
| Material | Bare Copper (BC) |
| Coverage [%] | 95% |
Outer Jacket
| Material | FEP - Fluorinated Ethylene Propylene |
|---|---|
| Material Trade Name | Teflon® |
| Nominal Diameter | 0.193 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | 10 Ohm/1000ft |
|---|---|
| Nominal Conductor DCR Conductor Resistance | 10 Ohm/1000ft |
| Nominal Outer Shield DCR | 2.5 Ohm/1000ft |
| Outer Conductor DCR | 2.5 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Shield | 16.1 pF/ft |
|---|
Inductance
| Nominal Inductance | 0.097 μH/ft |
|---|
Impedance
| Nominal Characteristic Impedance | 75 Ohm |
|---|
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 0.29 dB/100ft |
| 3 MHz | 0.58 dB/100ft |
| 5 MHz | 0.7 dB/100ft |
| 8 MHz | 0.87 dB/100ft |
| 10 MHz | 1.05 dB/100ft |
| 50 MHz | 1.8 dB/100ft |
| 100 MHz | 2.7 dB/100ft |
| 200 MHz | 3.9 dB/100ft |
| 400 MHz | 5.9 dB/100ft |
| 700 MHz | 8.5 dB/100ft |
| 900 MHz | 10 dB/100ft |
| 1000 MHz | 10.7 dB/100ft |
Delay
| Max. Delay Skew | 84 ns/100m |
|---|---|
| Nominal Delay | 1.21 ns/ft |
| Nominal Velocity of Propagation (VP) [%] | 84% |
Voltage
| UL Voltage Rating | 300 V RMS |
|---|
Temperature Range
| UL Temperature Rating | 200°C |
|---|---|
| Operating Temperature Range | -40°C To +200°C |
Mechanical Characteristics
| Bulk Cable Weight | 31 lbs/1000ft |
|---|---|
| Maximum Recommended Pulling Tension | 55 lbs |
| Min Bend Radius (Overall Cable) | 1.04 |
| Minimum Minor Axis Bend Radius | 1.9 in |
Standards
| NEC/(UL) Compliance | Limited Combustible FHC 25/50 CMP |
|---|---|
| RG Type | 59 |
| Series Type | 59 |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/11/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
| EU Directive Compliance | Yes |
| MII Order #39 (China RoHS) | Yes |
Suitability
| Suitability - Burial | No |
|---|---|
| Suitability - Hazardous Locations | No |
| Suitability - Indoor | Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability | UL723 (NFPA 255) |
|---|---|
| UL voltage rating | 300 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N) | Yes |
|---|
Related Part Numbers
| Footnote | C - CRATE REEL PUT-UP. |
|---|
Product Notes
| Notes | Print legend includes sequential footage marks. |
|---|
History
| Update and Revision | Revision Number: 0.399 Revision Date: 02-20-2026 |
|---|
