Product Number: 6539Y8

CCTV Applications

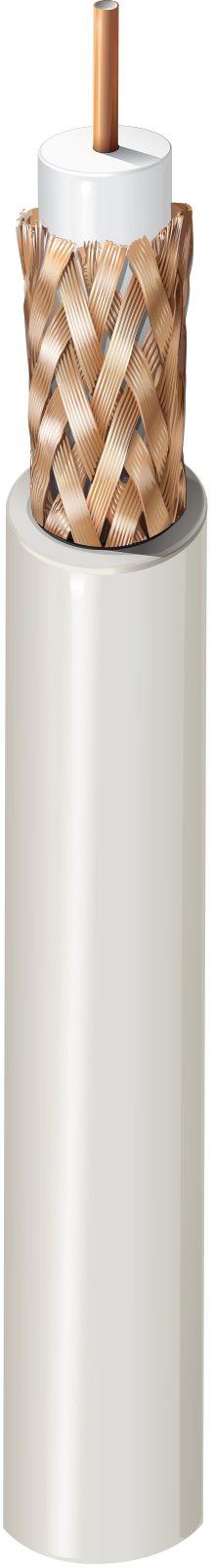

Surveillance, CCTV & Card Reader Cable, RG62, Plenum-CMP, 22 AWG solid bare copper-covered steel, foamed polyolefin core, 95% bare copper braid, Flamarrest® jacket

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

6539Y8 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
6539Y8 8771000	Natural	Reel	1,000 ft	612825178200	Order online

Specifications

Product Overview

Suitable Applications	Surveillance, CCTV Camera, Card Reader/Sensor

Construction Details

RG Type	62

Conductor

Size	22
Stranding	Solid
Nom. Diameter	0.025 in
Material	BCCS - Bare Copper Covered Steel

Insulation

Material	FEP - Fluorinated Ethylene Propylene (Foam)
Nom. Insulation Diameter	0.146 in (3.71 mm)

Outer Shield

Outer Shield Type	Braid
Material	Bare Copper (BC)
Coverage	95%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Diameter	0.204 in

Electrical Characteristics

Attenuation

Frequency	Nom. Attenuation
1 MHz	0.3 dB/100ft
10 MHz	0.9 dB/100ft
50 MHz	1.9 dB/100ft
100 MHz	2.7 dB/100ft
200 MHz	3.8 dB/100ft
400 MHz	5.3 dB/100ft
700 MHz	7.3 dB/100ft
900 MHz	8.2 dB/100ft
1000 MHz	8.7 dB/100ft

Electricals

Nom. Conductor DCR	41.2 Ohm/1000ft (135 Ohm/km)
Nom. Outer Shield DCR	3.4 Ohm/1000ft (11 Ohm/km)
Nom. Capacitance Cond-to-Shield	13.5 pF/ft (44.3 pF/m)
Nom. Characteristic Impedance	93 Ohm
Nom. Velocity of Prop.	84%

Voltage

UL Voltage Rating	300 V RMS

Mechanical Characteristics

Max. Pull Tension	67 lbs (30 kg)
Bulk Cable Weight	30 lbs/1000ft (45 kg/km)

Temperature

UL Temperature	75°C
Operating	0°C To +75°C

Standards and Compliance

Environmental Suitability	Indoor
Flammability / Reaction to Fire	NFPA 262, FT6
NEC / UL Compliance	CMP
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
