Product Number: 649948

PTZ, RG-59 #20, #18-2c, CMP, Siamese

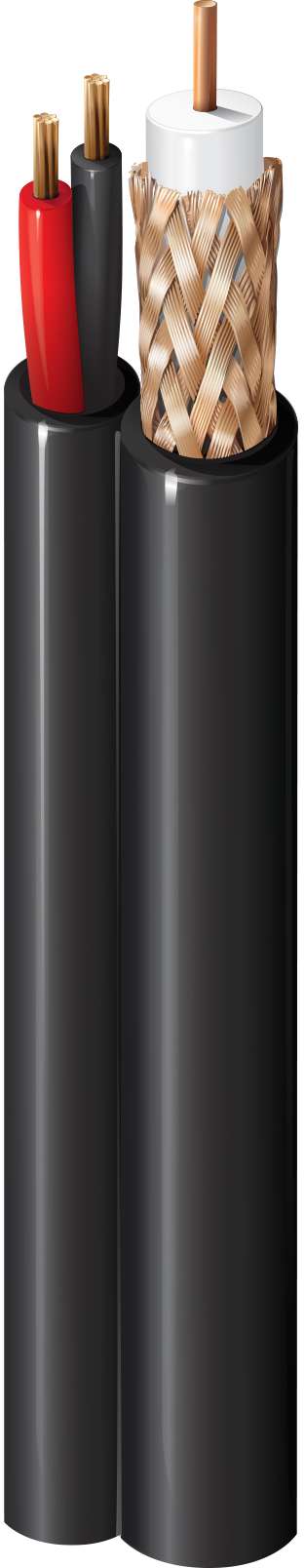

PTZ (CCTV + Power/Audio) Cable, Plenum-CMP, 1-RG59 20 AWG solid bare copper with foam FEP, 95% bare copper braid, 1-18 AWG stranded bare copper pair with Flamarrest® insulation, Siamese with Flamarrest® jacket

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

649948 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Put-Up Type	Length	UPC	Order
649948 877500	Natural	Reel	500 ft	612825177074	Order online
649948 8771000	Natural	Reel	1,000 ft	612825177067	Order online

Specifications

Product Overview

Suitable Applications	Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom)

Physical Characteristics (Overall)

Conductor Count	3
Insulation Table Notes	Gas Injected

Conductor

Element	AWG	Stranding	Material	Nominal Diameter	No. of Conductors	No. of Coax
Coax(es)	20	Solid	BC - Bare Copper			1
Pair1	18	7x26	BC - Bare Copper	0.047 in	2

Insulation

Element	Material	Nominal Diameter
Coax(es)	PE - Polyethylene (Foam)	0.133 in
Pair1	PVC - Polyvinyl Chloride	0.062 in

Color Chart

Number	Color
Coax Core	White
Pair1	Black & Red

Inner Shield

Element	Type	Material	Coverage [%]
Coax(es)	Braid	Bare Copper (BC)	95%
Pair1		No Shield

Inner Jacket

Nominal Diameter	0.192 in

Outer Jacket

Material	PVC - Polyvinyl Chloride
Material Trade Name	Flamarrest®
Nominal Diameter	0.192 in x 0.383 in

Electrical Characteristics

Conductor DCR

Element	Nominal Conductor DCR	Nominal Conductor DCR Conductor Resistance	Nominal Inner Shield DCR	Outer Conductor DCR
Coax(es)	10 Ohm/1000ft	10 Ohm/1000ft	2.5 Ohm/1000ft	2.5 Ohm/1000ft
Pair1

Capacitance

Element	Nom. Capacitance Conductor to Conductor
Coax(es)	16.1 pF/ft
Pair1

Impedance

Element	Coax(es)
Nominal Characteristic Impedance	75 Ohm

High Frequency (Nominal/Typical)

Frequency [MHz]	Nom. Insertion Loss
1 MHz	.29 dB/100ft
5 MHz	0.7 dB/100ft
10 MHz	1.1 dB/100ft
50 MHz	1.8 dB/100ft
100 MHz	2.7 dB/100ft
200 MHz	3.9 dB/100ft
400 MHz	5.9 dB/100ft
700 MHz	8.5 dB/100ft
900 MHz	10 dB/100ft
1000 MHz	10.7 dB/100ft

Delay

Element	Coax(es)
Max. Delay Skew	84 ns/100m
Nominal Delay	1.21 ns/ft

Current

Element
Coax(es)
Pair1

Temperature Range

Installation Temperature Range	0°C To +75°C
UL Temperature Rating	75°C
Operating Temperature Range	0°C To +75°C
Separation Temp Range	0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight	45 lbs/1000ft
Maximum Recommended Pulling Tension	75 lbs

Standards

NEC Articles	Article 800
NEC/(UL) Compliance	CMP
CEC/C(UL) Compliance	CMP
CPR Euroclass	Eca
RG Type	59

Applicable Environmental and Other Programs

Environmental Space	Indoor - Plenum
EU Directive 2000/53/EC (ELV)	Yes
EU Directive 2003/11/EC (BFR)	Yes
EU Directive 2011/65/EU (RoHS 2)	Yes
EU Directive 2012/19/EU (WEEE)	Yes
EU Directive 2015/863/EU (RoHS 2 amendment)	Yes
EU Directive Compliance	Yes
EU CE Mark	Yes
MII Order #39 (China RoHS)	Yes
