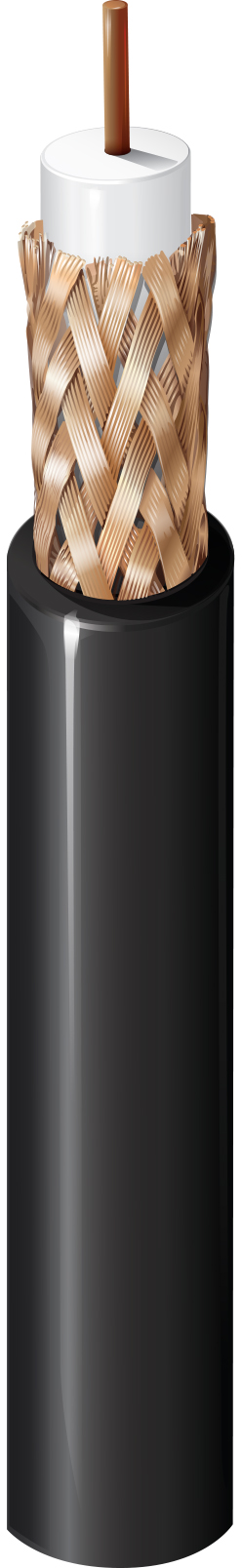

Surveillance CCTV, RG-59 #20 Sol BC, FFEP Core, BC Braid, Flamarrest® Jkt CMP
Surveillance, CCTV, RG-59, 20 AWG solid bare copper, foam FEP core, 95% bare copper braid, Low Smoke PVC jacket, CMP
- Availability
- Global
- Status
- Active
- Orderable items
- 7
Part numbers
643948 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 643948 010U500 | Black | UnReel | 500 ft | 612825176886 | Order online |
| 643948 0101000 | Black | Reel | 1,000 ft | 612825176893 | Order online |
| 643948 010U1000 | Black | UnReel | 1,000 ft | 612825176879 | Order online |
| 643948 877500 | Natural | — | — | — | Order online |
| 643948 877U500 | Natural | UnReel | 500 ft | 612825176916 | Order online |
| 643948 8771000 | Natural | Reel | 1,000 ft | 612825176923 | Order online |
| 643948 877U1000 | Natural | UnReel | 1,000 ft | 612825176909 | Order online |
Specifications
Product Overview
| Suitable Applications | Surveillance, CCTV Camera |
|---|
Construction Details
| RG Type | 59 |
|---|---|
| Overall Cable Diameter (Nominal) | 0.192 in (4.88 mm) |
Conductor
| Size | 20 AWG |
|---|---|
| Stranding | Solid |
| Nom. Diameter | 0.032 in |
| Material | BC - Bare Copper |
Insulation
| Material | FEP - Fluorinated Ethylene Propylene (Foam) |
|---|---|
| Nom. Insulation Diameter | 0.133 in (3.38 mm) |
| Color Code | White |
Outer Shield
| Outer Shield Type | Braid |
|---|---|
| Material | Bare Copper (BC) |
| Coverage | 95% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 0.192 in (4.88 mm) |
Electrical Characteristics
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.29 dB/100ft |
| 3 MHz | 0.58 dB/100ft |
| 5 MHz | 0.70 dB/100ft |
| 8 MHz | 0.87 dB/100ft |
| 10 MHz | 1.05 dB/100ft |
| 50 MHz | 1.80 dB/100ft |
| 100 MHz | 2.70 dB/100ft |
| 200 MHz | 3.90 dB/100ft |
| 400 MHz | 5.90 dB/100ft |
| 700 MHz | 8.50 dB/100ft |
| 900 MHz | 10.00 dB/100ft |
| 1000 MHz | 10.70 dB/100ft |
Electricals
| Nom. Conductor DCR | 10.0 Ohm/1000ft |
|---|---|
| Nom. Outer Shield DCR | 2.5 Ohm/1000ft (8.2 Ohm/km) |
| Nom. Capacitance Cond-to-Shield | 16.1 pF/ft (52.8 pF/m) |
| Nom. Characteristic Impedance | 75 Ohm |
| Nom. Velocity of Prop. | 84% |
Voltage
| UL Voltage Rating | 300 V (CMP) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 42 lbs (19 kg) |
|---|---|
| Bulk Cable Weight | 29 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C to +75°C |
Bend Radius
| Installation Min. | 1.75 in (44.5 mm) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor - Plenum, Indoor |
|---|---|
| Sustainability | CA Prop 65, Product LensTM, Environmental Product Declaration (EPD) Available |
| Flammability / Reaction to Fire | NFPA 262 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | CMP |
| CEC / C(UL) Compliance | CMP. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.557 Revision Date: 02-20-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
