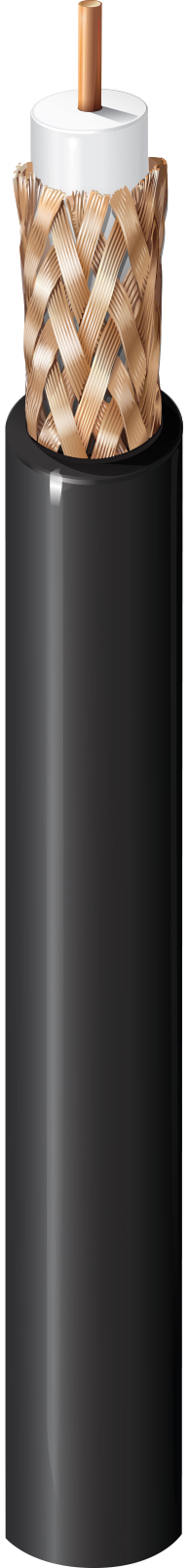

Surveillance CCTV, RG-6 #18 BC, 95% BC Braid, CMP
Surveillance & CCTV Cable, RG6, Plenum-CMP, 18 AWG solid bare copper, foam FEP core, 95% bare copper braid, Flamarrest® jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 8
Part numbers
633948 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 633948 010U1000 | Black | UnReel | 1,000 ft | 612825176176 | Order online |
| 633948 008U1000 | Gray | UnReel | 1,000 ft | 612825176152 | Order online |
| 633948 877500 | Natural | Reel | 500 ft | 612825176237 | Order online |
| 633948 877U500 | Natural | UnReel | 500 ft | 612825176213 | Order online |
| 633948 8771000 | Natural | Reel | 1,000 ft | 612825176220 | Order online |
| 633948 877U1000 | Natural | UnReel | 1,000 ft | 612825176206 | Order online |
| 633948 0071000 | Violet | Reel | 1,000 ft | 612825176145 | Order online |
| 633948 009U1000 | White | UnReel | 1,000 ft | 612825176169 | Order online |
Specifications
Product Overview
| Suitable Applications | Surveillance, CCTV Camera |
|---|
Construction Details
| RG Type | 6 |
|---|---|
| Series Type | 6 |
Conductor
| Element | Coax(es) |
|---|---|
| No. of Elements | 1 |
| Size | 18 AWG |
| Stranding | Solid |
| Nom. Diameter | 0.040 in |
| Material | BC - Bare Copper |
Insulation
| Element | Coax(es) |
|---|---|
| Material | FEP - Fluorinated Ethylene Propylene (Foam) |
| Nom. Insulation Diameter | 0.171 in (4.34 mm) |
| Color Code | White |
Outer Shield
| Layer | 1 |
|---|---|
| Outer Shield Type | Braid |
| Material | Bare Copper (BC) |
| Coverage | 95% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 0.231 in (5.87 mm) |
Electrical Characteristics
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.24 dB/100ft |
| 3 MHz | 0.45 dB/100ft |
| 5 MHz | 0.55 dB/100ft |
| 8 MHz | 0.7 dB/100ft |
| 10 MHz | 0.85 dB/100ft |
| 50 MHz | 1.5 dB/100ft |
| 100 MHz | 2.1 dB/100ft |
| 200 MHz | 3.1 dB/100ft |
| 400 MHz | 4.7 dB/100ft |
| 700 MHz | 6.8 dB/100ft |
| 900 MHz | 8 dB/100ft |
| 1000 MHz | 8.5 dB/100ft |
Electricals
| Nom. Conductor DCR | 6.4 Ohm/1000ft (21 Ohm/km) |
|---|---|
| Nom. Outer Shield DCR | 2.2 Ohm/1000ft (7.2 Ohm/km) |
| Nom. Capacitance Cond-to-Shield | 16.3 pF/ft (53.5 pF/m) |
| Nom. Characteristic Impedance | 75 Ohm |
| Nom. Velocity of Prop. | 83% |
Voltage
| UL Voltage Rating | 300 V RMS |
|---|
Mechanical Characteristics
| Max. Pull Tension | 84 lbs (38 kg) |
|---|---|
| Bulk Cable Weight | 38 lbs/1000ft (57 kg/km) |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C To +75°C |
Bend Radius
| Stationary Min. | 2.3 in (58 mm) |
|---|---|
| Installation Min. | 2.3 in (58 mm) |
Standards and Compliance
| Environmental Suitability | Indoor - Plenum, Indoor |
|---|---|
| Flammability / Reaction to Fire | NFPA 262 (UL 910), FT6 |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.660 Revision Date: 02-20-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
