Product Number: 6288US

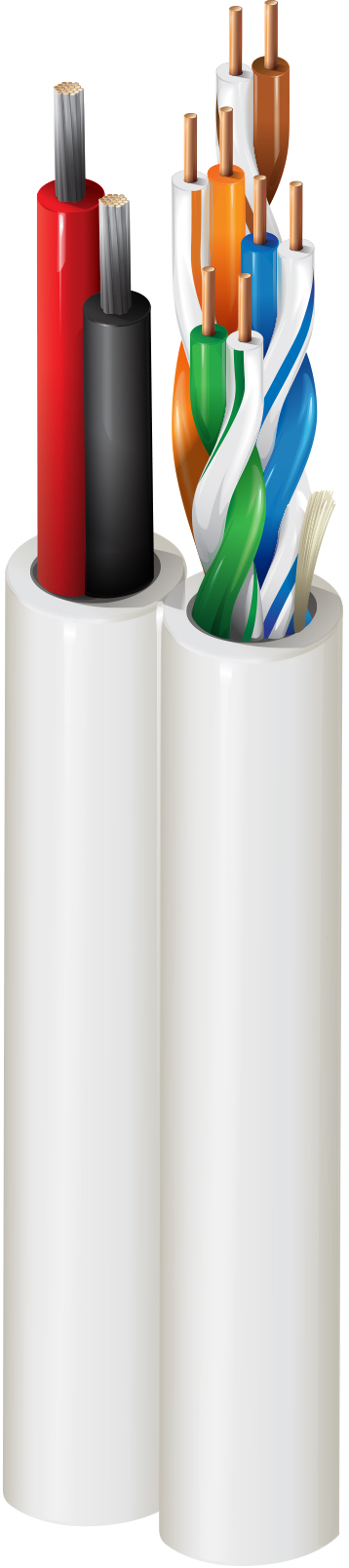

PTZ, Cat5e-4pr, #16-2c, UTP, Flamarrest Jkt, CMP, Siamese

PTZ (Control + Power) Cable, Plenum-CMP, Cat5e 4-24 AWG solid bare copper data pairs with FEP insulation, 2-16 AWG stranded bare copper conductors with FEP insulation, Siamese Flamarrest® jacket

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

6288US is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Order
6288US 0101000	Black	612825174639	Order online
6288US 010500	Black	612825174646	Order online
6288US 0091000	White	612825174622	Order online

Specifications

Product Overview

Suitable Applications	Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom), UTP-CCTV
Patent	This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents .

Physical Characteristics (Overall)

Conductor Count	10

Conductor

Element	AWG	Stranding	Material	Nominal Diameter	No. of Conductors	No. of Pairs
Cat 5e Pair	23	Solid	BC - Bare Copper	0.023 in		4
Pair1	16	19x29	TC - Tinned Copper	0.059 in	2

Insulation

Element	Material	Material Trade Name	Nominal Diameter
Cat 5e Pair	FEP - Fluorinated Ethylene Propylene	Beldfoil®	0.042 in
Pair1	PVC - Polyvinyl Chloride		0.077 in

Color Chart

Number	Color
Cat 5e Pair1	Blue and White/Blue
Cat 5e Pair2	Orange and White/Orange
Cat 5e Pair3	Green and White/Green
Cat 5e Pair4	Brown and White/Brown
Pair1	Black & Red

Inner Shield

Element	Material
Cat 5e Pair	No Shield
Pair1	No Shield

Outer Shield

Material	No Shield

Outer Jacket

Material	PVC - Polyvinyl Chloride
Material Trade Name	Flamarrest®
Nominal Diameter	0.222 x 0.45 in

Electrical Characteristics

Conductor DCR

Element	Max. Conductor DCR	Max. DCR Unbalance	Nominal Conductor DCR	Nominal Conductor DCR Conductor Resistance
Cat 5e Pair	13.716 Ohm/1000ft	5 %	9 Ohm/1000ft	9 Ohm/1000ft
Pair1

Capacitance

Element
Cat 5e Pair
Pair1

Delay

Element	Cat 5e Pair
Max. Delay	45 ns/ft
Max. Delay Skew	70 ns/100m
Nominal Velocity of Propagation (VP) [%]	70%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation)	Min. PSNEXT [dB]	Min. PSACR [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]	Max./Min. Fitted Impedance
1 MHz	2 dB/100m	62 dB	60 dB	61 dB	20 dB	100 ± 15%
4 MHz	4.1 dB/100m	53 dB	49 dB	49 dB	23 dB	100 ± 15%
8 MHz	5.8 dB/100m	48 dB	43 dB	43 dB	24.5 dB	100 ± 15%
10 MHz	6.5 dB/100m	47 dB	41 dB	41 dB	25 dB	100 ± 15%
16 MHz	8.2 dB/100m	44 dB	36 dB	37 dB	25 dB	100 ± 15%
20 MHz	9.3 dB/100m	42 dB	34 dB	35 dB	25 dB	100 ± 15%
25 MHz	10.4 dB/100m	41 dB	31 dB	33 dB	24.3 dB	100 ± 15%
31.25 MHz	11.7 dB/100m	39 dB	28 dB	31 dB	23.6 dB	100 ± 15%
62.5 MHz	17 dB/100m	35 dB	19 dB	24 dB	21.5 dB	100 ± 15%
100 MHz	22 dB/100m	32 dB	11 dB	21 dB	20.1 dB	100 ± 15%

Current

Element
Cat 5e Pair
Pair1

Voltage

UL Voltage Rating	300 V RMS

Temperature Range

Installation Temperature Range	0°C To +75°C
UL Temperature Rating	75°C
Separation Temp Range	0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight	73 lbs/1000ft
Maximum Recommended Pulling Tension	130 lbs

Standards

NEC Articles	Article 800
NEC/(UL) Compliance	CMP
CEC/C(UL) Compliance	CMP
ISO/IEC Compliance	ISO/IEC 11801, Category 5e for data pairs

Applicable Environmental and Other Programs

Environmental Space	Indoor - Plenum
EU Directive Compliance	Yes
MII Order #39 (China RoHS)	Yes

Flammability, LS0H, Toxicity Testing

UL Flammability	NFPA 262
UL voltage rating	300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)	Yes

Related Part Numbers

Non-Plenum Number	5288US
Footnote	C - CRATE REEL PUT-UP.

Product Notes

Notes	Overall jacket sequentially marked.

History

Update and Revision	Revision Number: 0.330 Revision Date: 04-02-2026

Resources

Belden 6288US technical datasheet Access Control Composite Cables Copper Catalog
