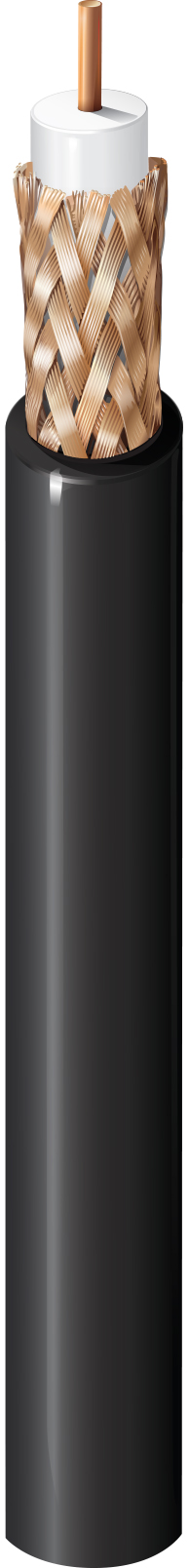

Surveillance CCTV, RG-6 #18 Sol BC, FPE Core, BC Braid, PVC Jkt, CMG
Surveillance, CCTV, RG-6, 18 AWG solid bare copper, foam PE core, 92% bare copper braid, PVC jacket, CMG
- Availability
- Global
- Status
- Active
- Orderable items
- 5
Part numbers
533945 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 533945 010500 | Black | Reel | 500 ft | 612825161066 | C | Order online |
| 533945 0101000 | Black | Reel | 1,000 ft | 612825161059 | C | Order online |
| 533945 010U1000 | Black | UnReel | 1,000 ft | 612825161042 | — | Order online |
| 533945 0091000 | White | Reel | 1,000 ft | 612825161035 | C | Order online |
| 533945 009U1000 | White | UnReel | 1,000 ft | 612825161028 | — | Order online |
Specifications
Product Overview
| Suitable Applications | Surveillance, CCTV Camera |
|---|
Construction Details
| RG Type | 6 |
|---|---|
| Overall Cable Diameter (Nominal) | 0.266 in (6.76 mm) |
Conductor
| Size | 18 AWG |
|---|---|
| Stranding | Solid |
| Nom. Diameter | 0.040 in |
| Material | BC - Bare Copper |
Insulation
| Material | PE - Polyethylene (Foam) |
|---|---|
| Nom. Insulation Diameter | 0.180 in (4.57 mm) |
| Color Code | White |
| Notes | Gas Injected |
Outer Shield
| Outer Shield Type | Braid |
|---|---|
| Material | Bare Copper (BC) |
| Coverage | 92% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 0.266 in (6.76 mm) |
Electrical Characteristics
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.24 dB/100ft |
| 10 MHz | 0.72 dB/100ft |
| 50 MHz | 1.50 dB/100ft |
| 100 MHz | 2.00 dB/100ft |
| 200 MHz | 2.90 dB/100ft |
| 400 MHz | 4.20 dB/100ft |
| 700 MHz | 5.60 dB/100ft |
| 900 MHz | 6.40 dB/100ft |
| 1000 MHz | 7.00 dB/100ft |
Electricals
| Nom. Conductor DCR | 6.4 Ohm/1000ft |
|---|---|
| Nom. Outer Shield DCR | 2.7 Ohm/1000ft (8.9 Ohm/km) |
| Nom. Capacitance Cond-to-Shield | 16.3 pF/ft (53.5 pF/m) |
| Nom. Characteristic Impedance | 75 Ohm |
| Nom. Velocity of Prop. | 83% |
Voltage
| UL Voltage Rating | 300 V (CMG) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 56 lbs (25 kg) |
|---|---|
| Bulk Cable Weight | 37 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -30°C to +75°C |
Bend Radius
| Installation Min. | 2.7 in (69 mm) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Indoor, Sunlight Resistance, Aerial - Black only, When supported by messenger wire |
|---|---|
| Sustainability | CA Prop 65, Product LensTM, Environmental Product Declaration (EPD) Available |
| Flammability / Reaction to Fire | UL1685 FT4 Loading, Limited Smoke |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | CMG |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | P-07-KA110035-MSHA |
History
| Update and Revision | Revision Number: 0.554 Revision Date: 02-20-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
