Product Number: H1001C1

H1001C1 - 50 Ohm Wireless Transmission Coax, H1000, RG8, 10 AWG Stranded BC, CU-Foil + 50% BC Braid, PE Jkt

50 Ohm Wireless Transmission Coax, H1000, RG8, 10 AWG Stranded Bare Copper Conductor, PE Insulation, Copper foil + 50% Bare Copper Braid Shield, PE Jacket

Availability: EMEA | Asia Pacific
Status: Discontinued

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications	Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

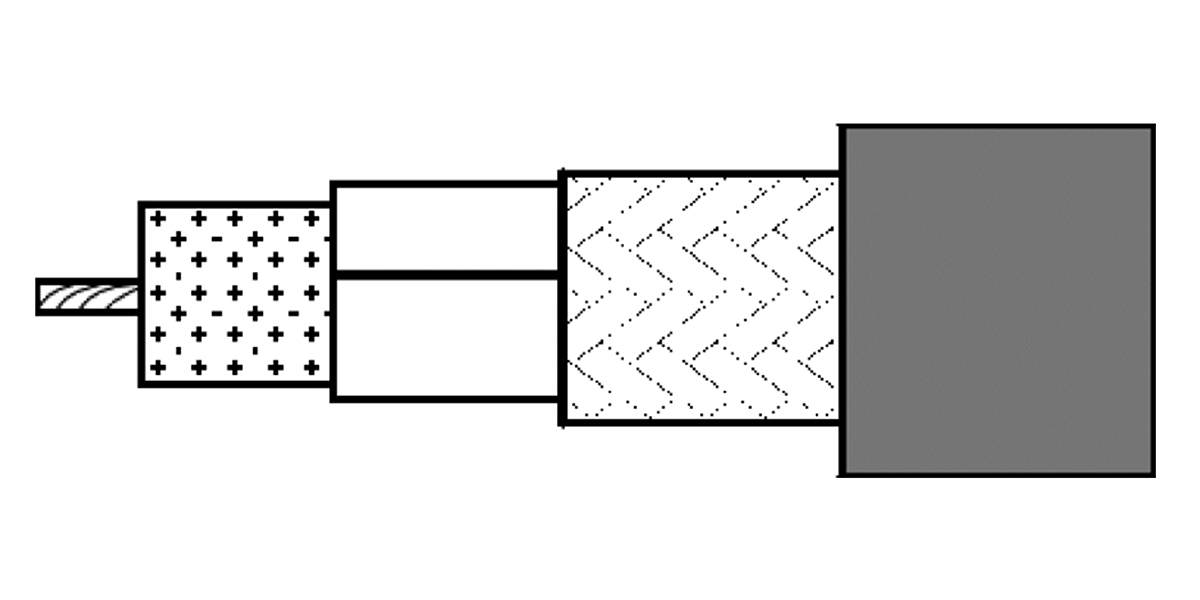

Construction Details

RG Type	8
Insulation Table Notes	Centricity min. 85%
Outer Jacket1 Table Notes	According to European Standard EN 50290-2-20

Conductor

No. of Elements	1
Size	10 AWG
Stranding	Stranded
Nom. Diameter	2.7 mm
Material	BC - Bare Copper

Insulation

Element	Insulated Conductor
Material	PE - Polyethylene (Foam)
Nom. Insulation Diameter	7.15 mm (0.281 in)

Outer Shield

Layer	Outer Shield Type	Material	Coverage
1	Tape	Bi-Laminate (Bare Copper+Poly)	100%
2	Braid	Bare Copper (BC)	50%

Outer Jacket

Material	PE - Polyethylene
Nom. Diameter	10.3 mm

Electrical Characteristics

Regularity of Impedance	Min. 46 dB
Attenuation Table Notes	Max. attenuation 10% higher

Attenuation

Frequency	Nom. Attenuation
5 MHz	1 dB/100m
50 MHz	3.3 dB/100m
100 MHz	4.7 dB/100m
200 MHz	6.7 dB/100m
400 MHz	9.8 dB/100m
600 MHz	12.2 dB/100m
800 MHz	14.4 dB/100m
1000 MHz	16.3 dB/100m
1350 MHz	19.3 dB/100m
1750 MHz	22.5 dB/100m
2150 MHz	25.4 dB/100m
2400 MHz	27.1 dB/100m
5000 MHz	42.4 dB/100m
10000 MHz	66.4 dB/100m

Electricals

Max. Conductor DCR	4.5 Ohm/km (1.4 Ohm/1000ft)
Nom. Outer Shield DCR	12 Ohm/km (3.7 Ohm/1000ft)
Nom. Capacitance Cond-to-Shield	80 pF/m (24 pF/ft)
Nom. Characteristic Impedance	50 Ohm
Nom. Velocity of Prop.	83%

Screening

Frequency	30 - 1000 MHz
Min. Screening Attenuation	100 dB

Mechanical Characteristics

Bulk Cable Weight	109 kg/km

Temperature

Operating	-40°C To +70°C
Installation	-5°C To +50°C
Storage	-40°C To +70°C

Bend Radius

Stationary Min.	100 mm (3.9 in)

Standards and Compliance

Environmental Suitability	Outdoor
ISO/IEC Compliance	IEC 61196
European Directive Compliance	EU CE Mark

History

Update and Revision	Revision Number: 0.201 Revision Date: 02-20-2026
