50 Ohm Coax Cable
Belden has set the worldwide broadcast cable standard for decades, getting its start with the award-winning digital precision video coax line in 1995. Our 50 Ohm Coax Cables offer excellent performance across longer distances as they carry power and voltage signals. Designed to make certain that data signals travel through the cable in the most efficient way possible, they can maintain signal strength while also ensuring reliable integrity and exceptional quality.
Features & Benefits
- Designed for Communication: Supports point-to-point and point-to-multipoint wireless antenna communication: wireless mics, two-way radios, etc.
- Suitable for a Variety of Applications: Available in outdoor, riser-rated and water-blocked options
87 product families

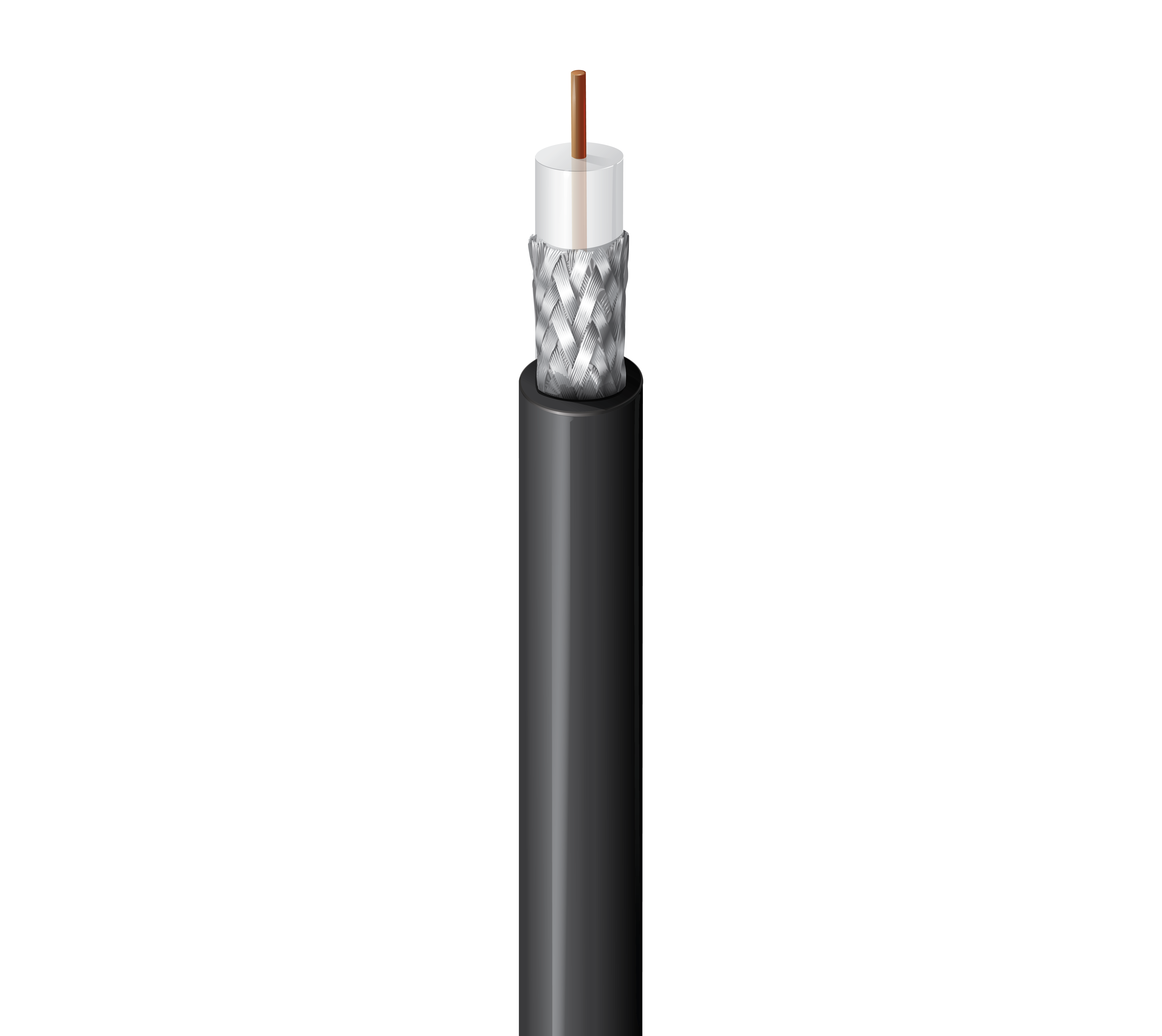

8240
50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Solid BC, 95% TC Braid, PVC Jkt, CMX
20 AWG · BC - Bare Copper · PE - Polyethylene · PVC - Polyvinyl Chloride
6 items
8259
50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Str TC, 95% TC Braid, PVC Jkt
20 AWG · TC - Tinned Copper · PE - Polyethylene · PVC - Polyvinyl Chloride
6 items

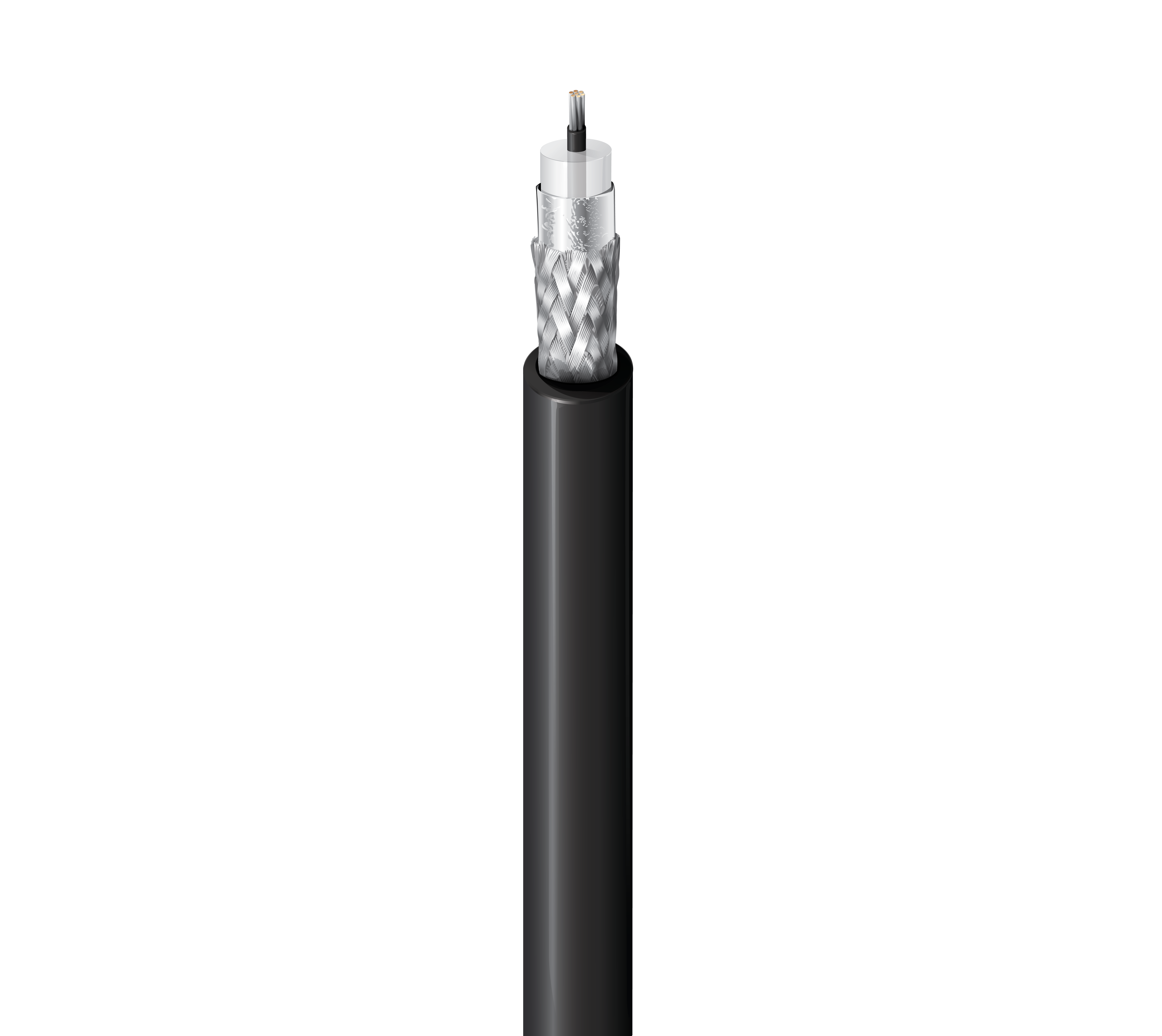

9223
Audio Coax, Low Noise, 22 AWG Str TC, Foil + 95% TC Brd, PVC Jkt
22 AWG · TC - Tinned Copper · PVC - Polyvinyl Chloride
6 items
1671A
Conformable Coax, 50 Ohm RG-405, 24 AWG Solid SCCS, Copper-Tin Composite Shield, Unjacketed
24 AWG · SCCS - Silvered Copper Covered Steel · PTFE - Polytetrafluoroethylene · No Jacket
4 items

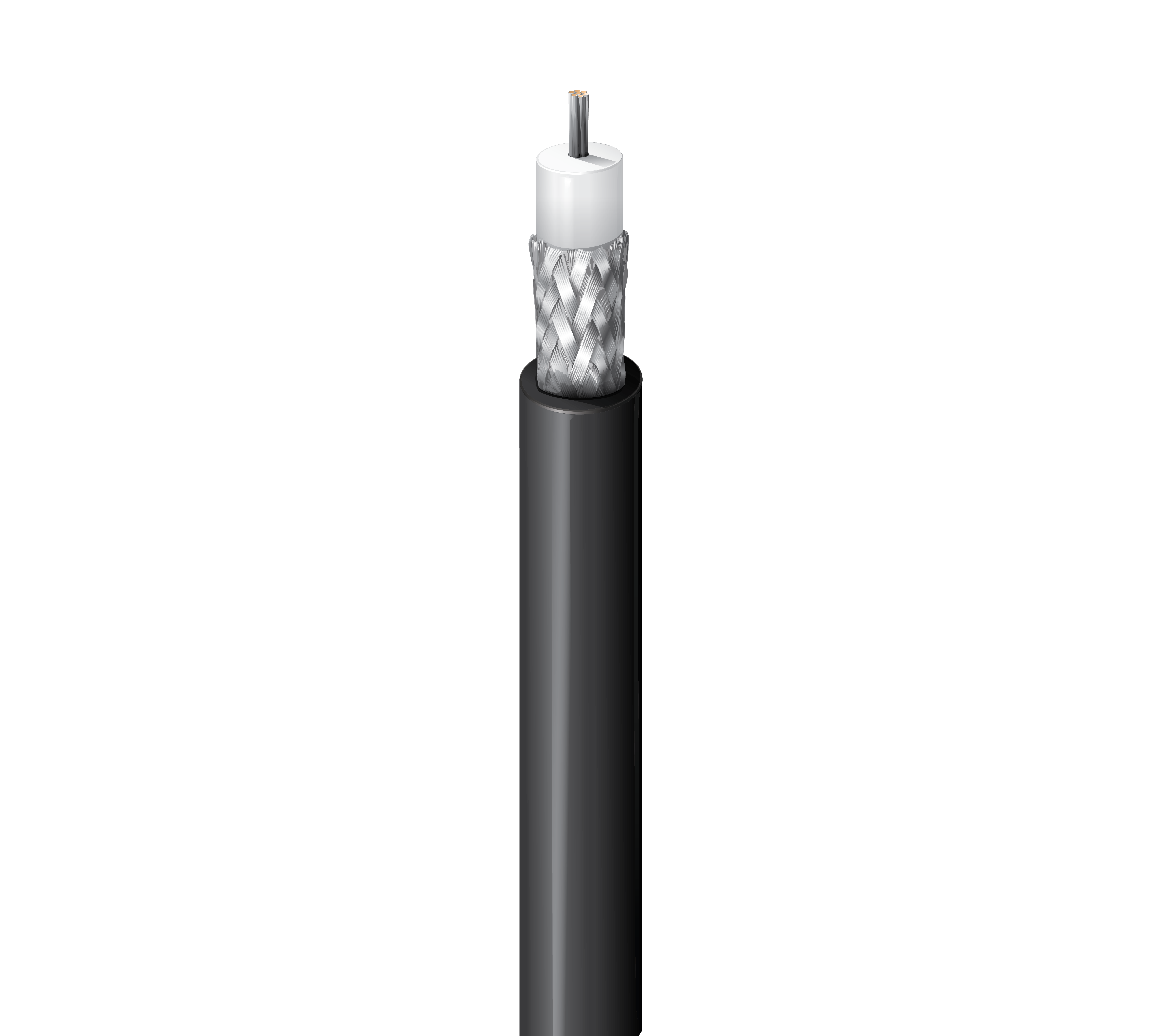

8219
50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Str TC, 95% TC Braid, PVC Jkt, CM
20 AWG · TC - Tinned Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
4 items
9258
50 Ohm Wireless Transmission Coax, RG-8, 16 AWG Str BC, 95% BC Braid, PVC Jkt, CM
16 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
4 items
9913
50 Ohm Wireless Transmission Coax, RG-8, 10 AWG Solid BC, Foil + 90% TC Braid, PVC Jkt
10 AWG · BC - Bare Copper · PE - Polyethylene (Semi-Solid) · PVC - Polyvinyl Chloride
4 items

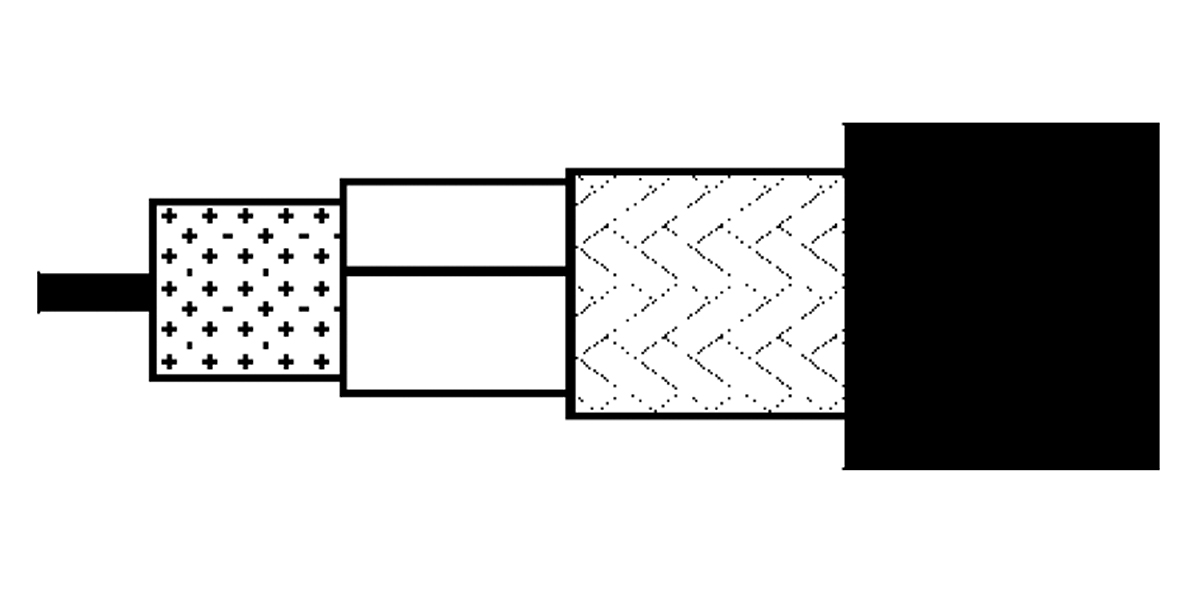

H1000C1
H1000C1 - 50 Ohm Wireless Transmission Coax, H1000, RG8, 10 AWG Solid BC, CU-Foil + 50% BC Braid, PE Jkt
1 · 10 AWG · BC - Bare Copper · PE - Polyethylene (Foam)
4 items
7805
50 Ohm Wireless Transmission Coax, RF 100, RG174, 25 AWG Solid BC, Foil + 90% TC Braid, PVC Jkt
25 AWG · BC - Bare Copper · PE - Polyethylene · PVC - Polyvinyl Chloride
3 items
7805R
50 Ohm Wireless Transmission Coax, RF 100, RG174, 25 AWG Solid BC, Foil + 90% TC Braid, PVC Jkt, CMR
25 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
3 items
8214
50 Ohm Wireless Transmission Coax, RG-8, 11 AWG Str BC, 95% BC Braid, PVC Jkt, CM
11 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
3 items

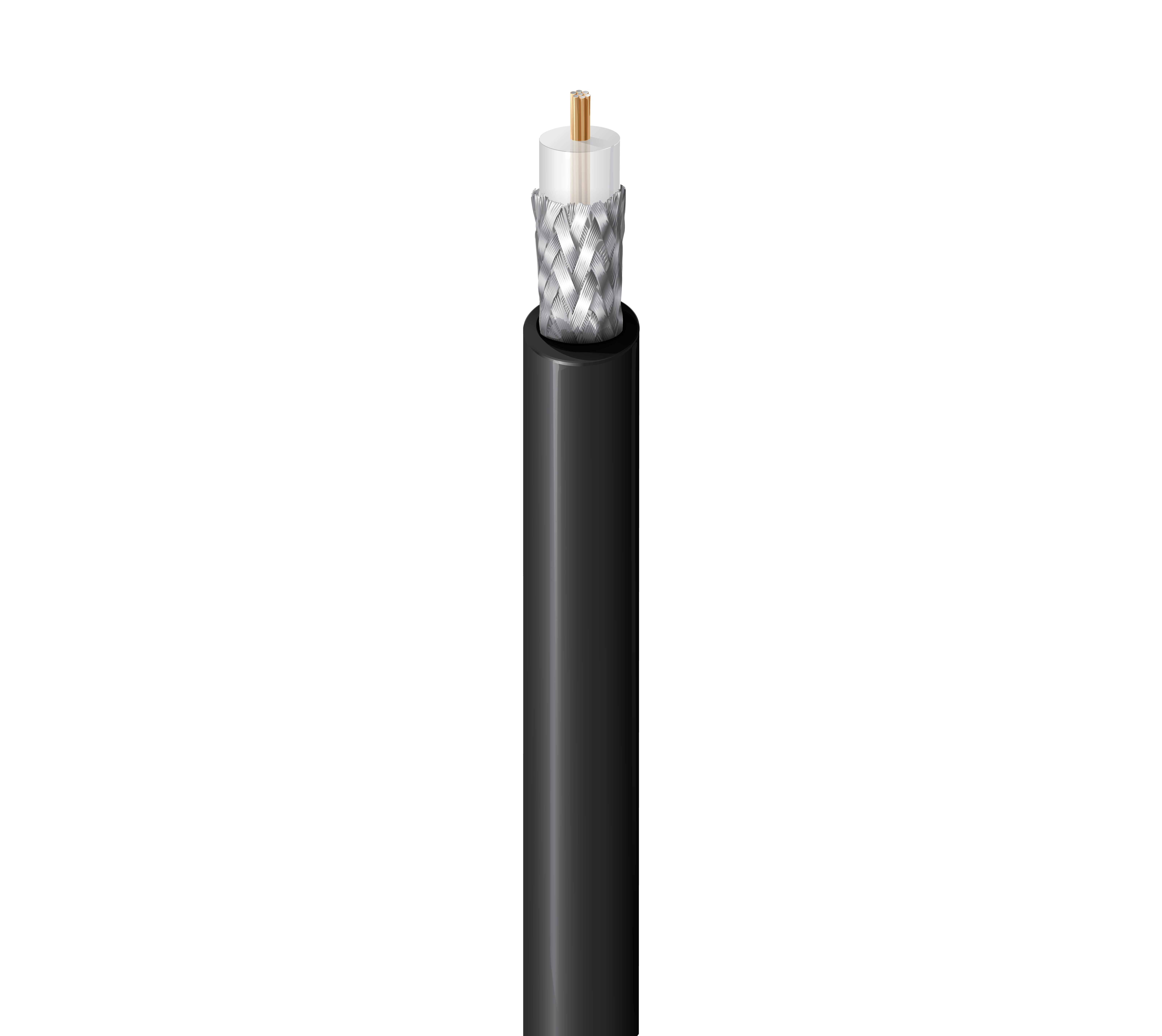

8216
50 Ohm Wireless Transmission Coax, RG-174, 26 AWG Str BCCS, 90% TC Braid, PVC Jkt
26 AWG · BCCS - Bare Copper Covered Steel · PE - Polyethylene · PVC - Polyvinyl Chloride
3 items

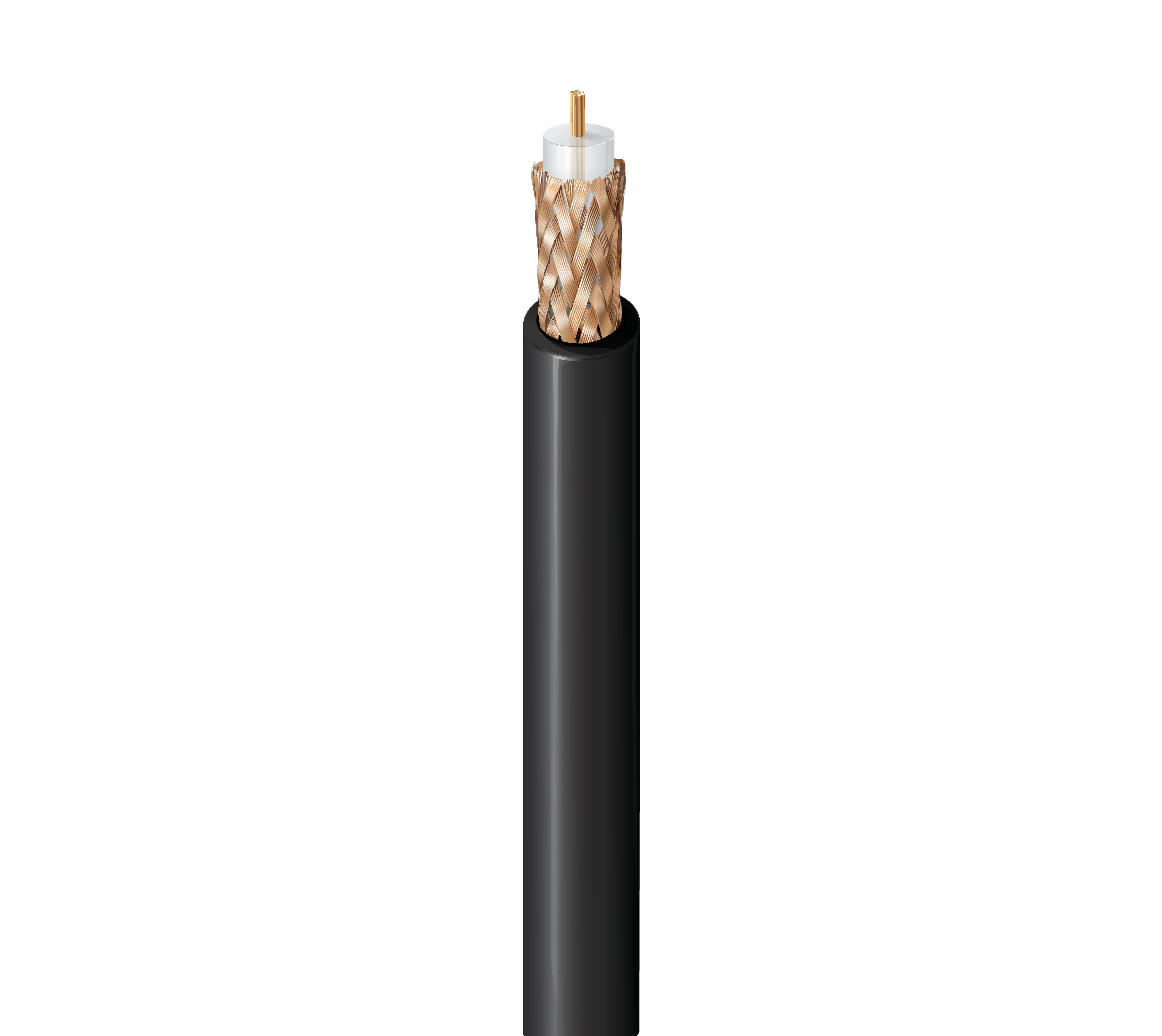

8237
50 Ohm Wireless Transmission Coax, RG-8, 13 AWG Str BC, 95% BC Braid, PVC Jkt, CMH
13 AWG · BC - Bare Copper · PE - Polyethylene · PVC - Polyvinyl Chloride
3 items

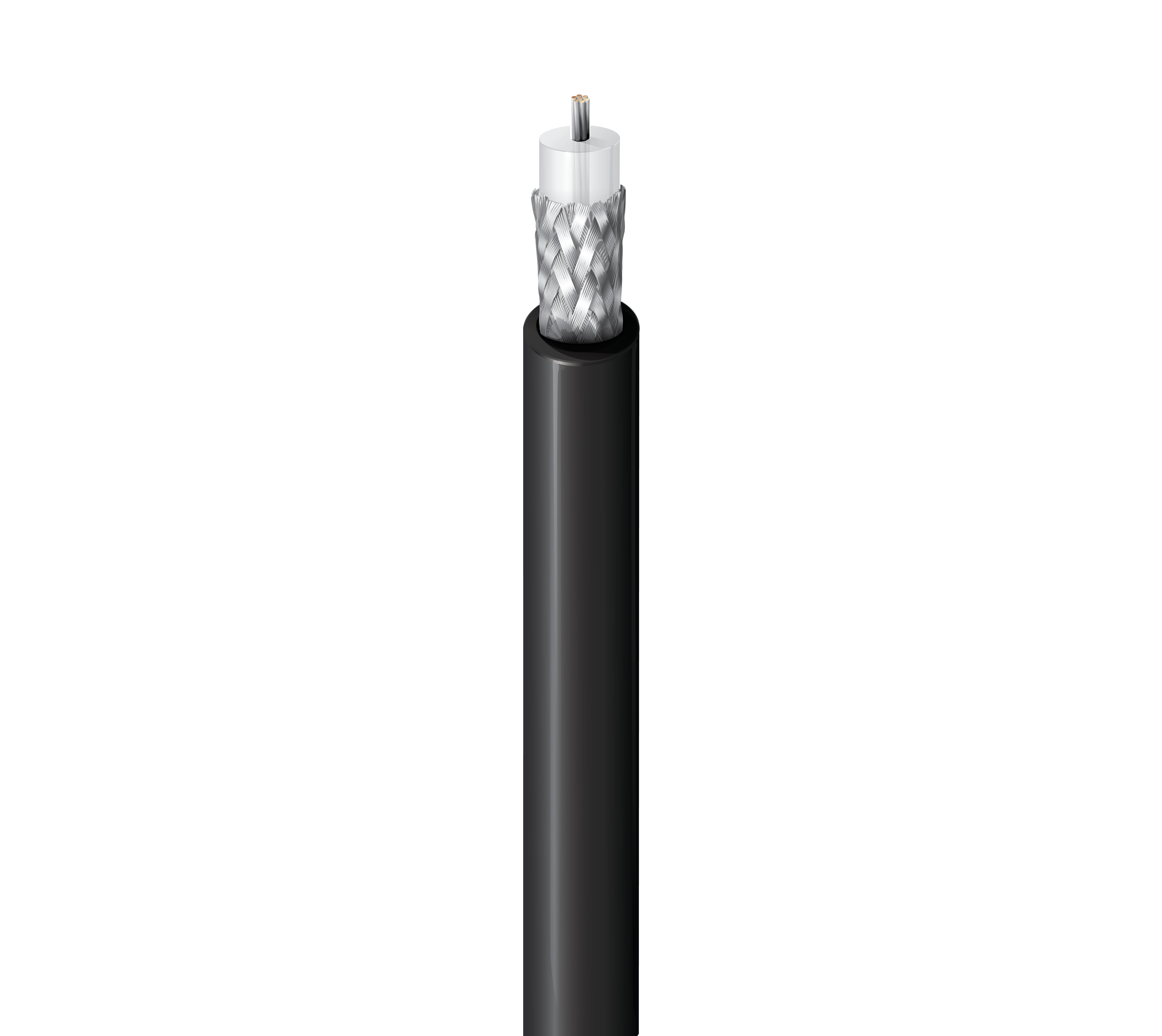

8262
Mil-Spec Coax, 50 Ohm, RG-58, 20 AWG Str TC, 95% TC Braid, PVC Jkt, Commercial Non-QPL
20 AWG · TC - Tinned Copper · PE - Polyethylene · PVC - Polyvinyl Chloride (Non-Contaminating)
3 items

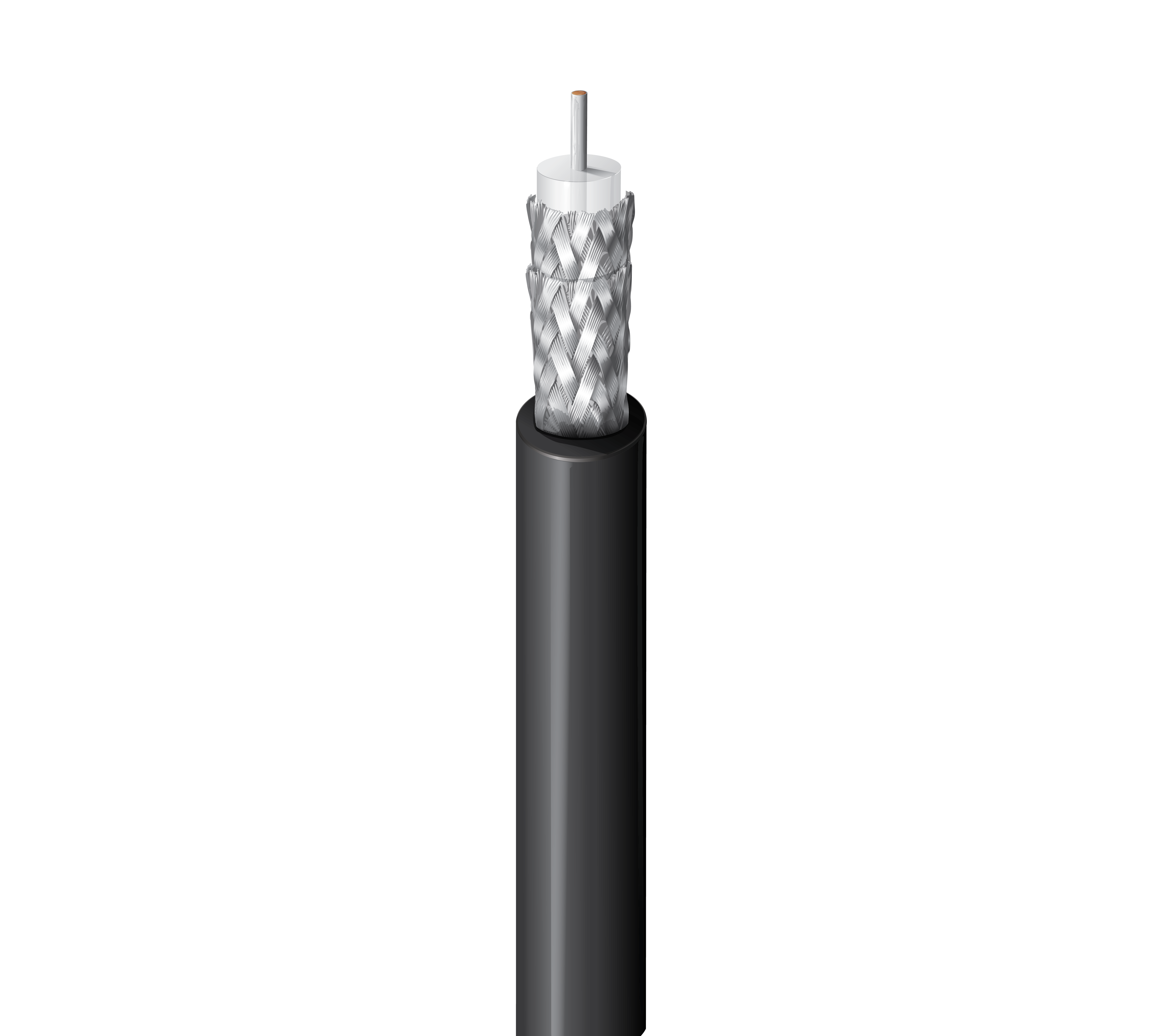

9273
Mil-Spec Coax, 50 Ohm, RG-223, 19 AWG Solid SC, Double 95% SC Braid, PVC Jkt, CMX, Commercial Non-QPL
19 AWG · SC - Silvered Copper · PE - Polyethylene · PVC - Polyvinyl Chloride (Non-Contaminating)
3 items

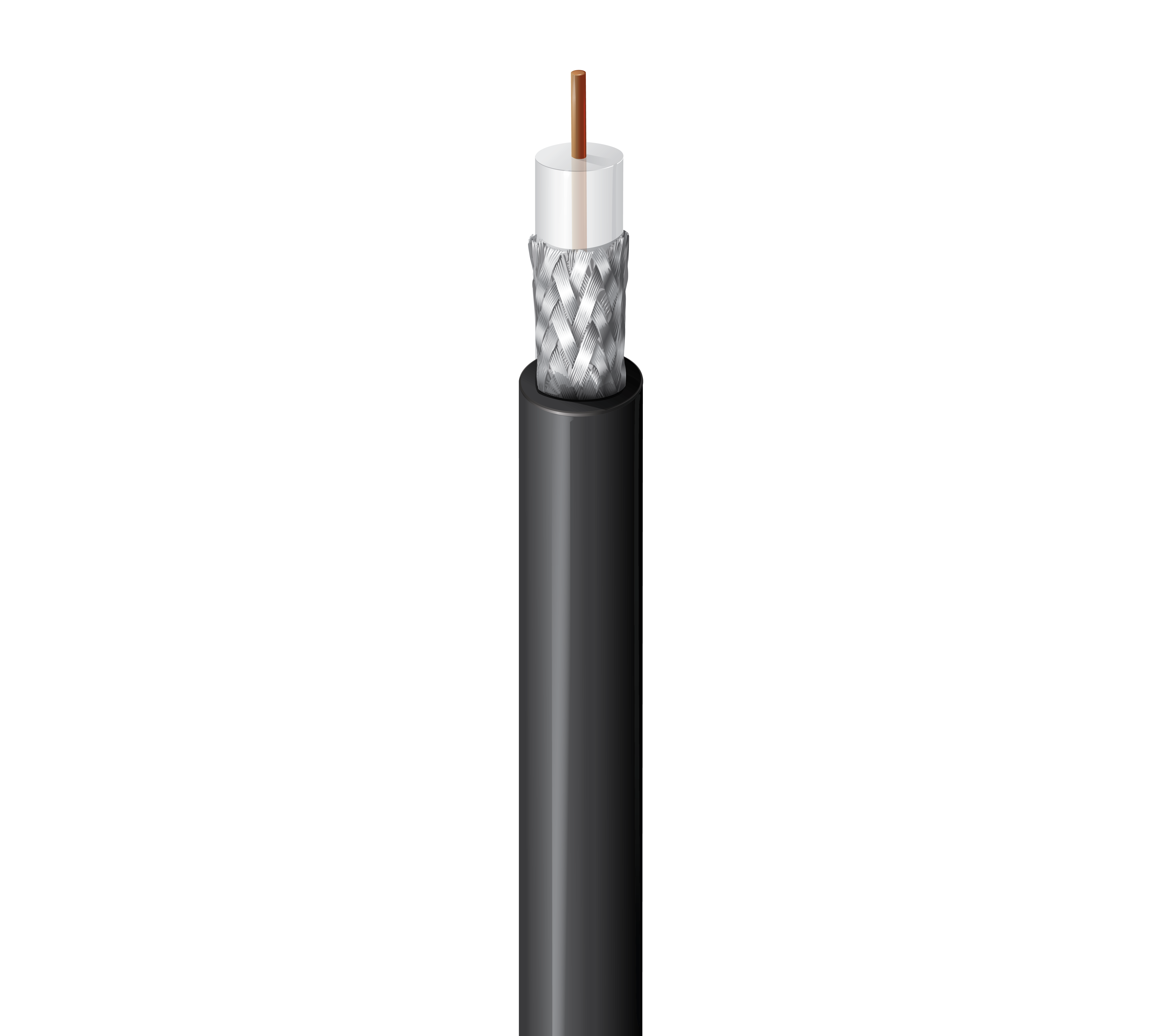

82240
50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Solid BC, 95% TC Braid, Flamarrest® Jkt, CMP
20 AWG · BC - Bare Copper · FEP - Fluorinated Ethylene Propylene · PVC - Polyvinyl Chloride
3 items

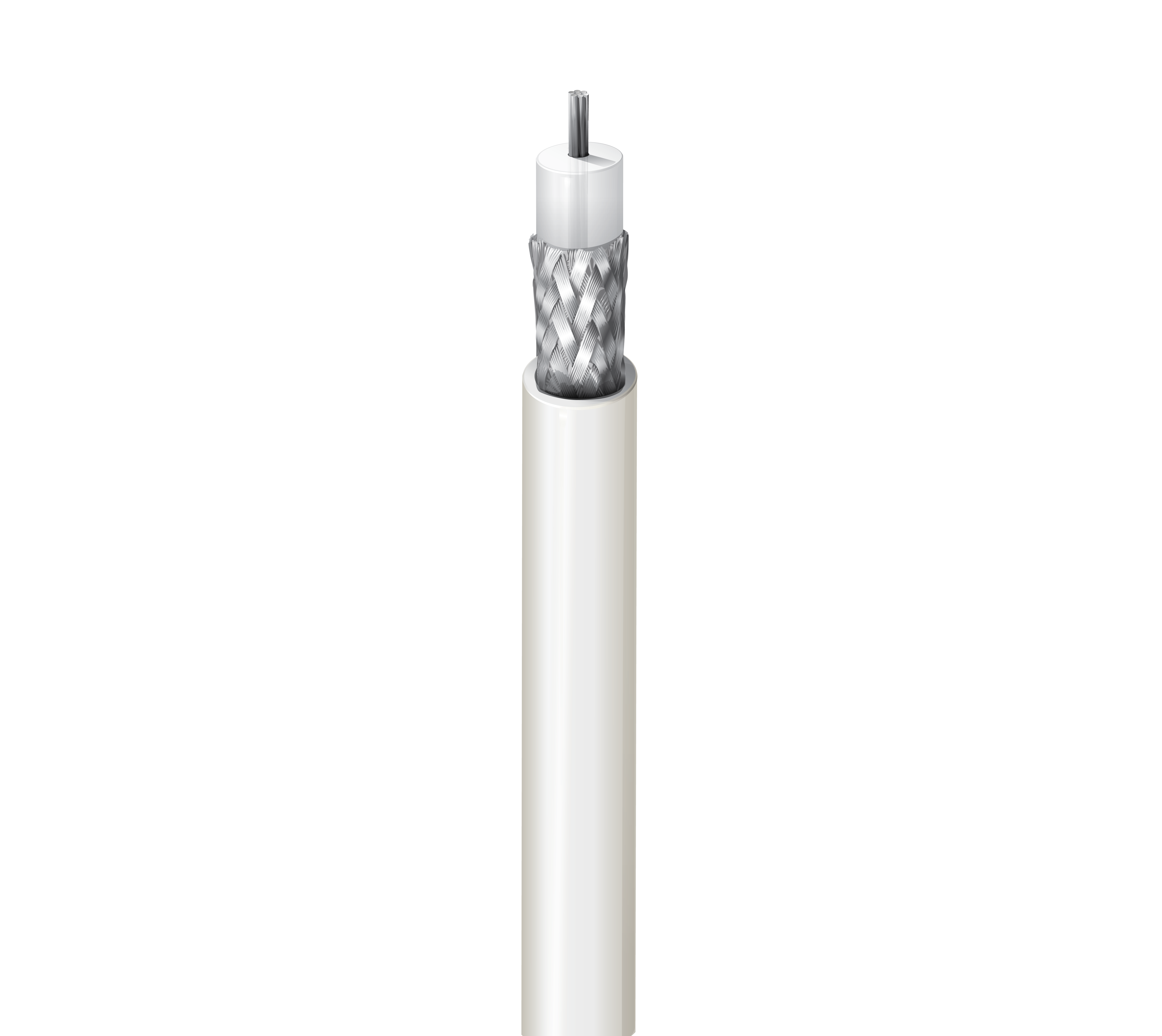

83265
Mil-Spec Coax, 50 Ohm, RG-178, 30 AWG Str SCCS, 95% SC Braid, FEP Jkt, Commercial Non-QPL
30 AWG · SCCS - Silvered Copper Covered Steel · PTFE - Polytetrafluoroethylene · FEP - Fluorinated Ethylene Propylene
3 items

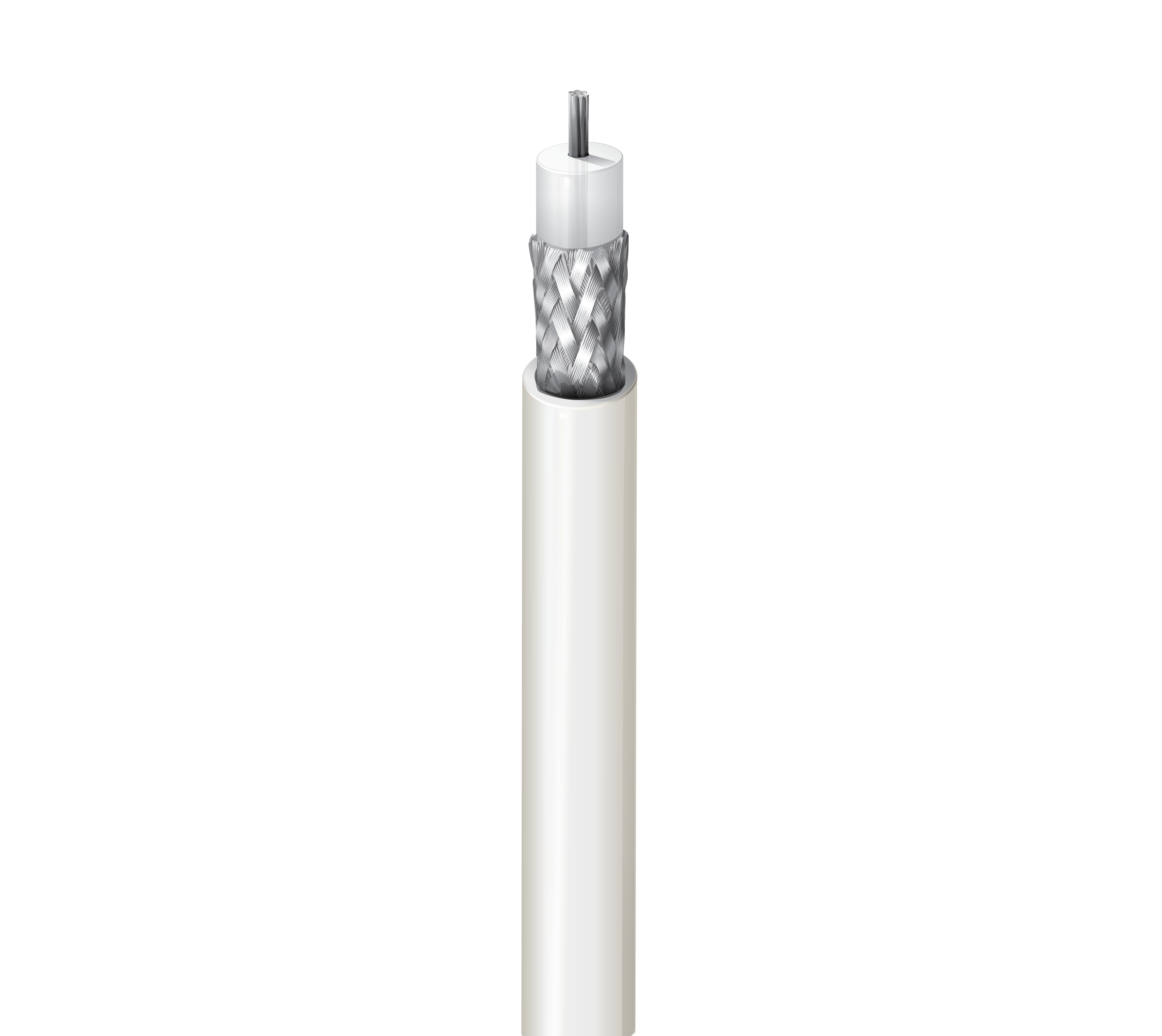

83284
Mil-Spec Coax, 50 Ohm, RG-316, 26 AWG Str SCCS, 95% SC Braid, FEP Jkt, Commercial Non-QPL
26 AWG · SCCS - Silvered Copper Covered Steel · PTFE - Polytetrafluoroethylene · FEP - Fluorinated Ethylene Propylene
3 items
84316
Mil-Spec Coax, 50 Ohm, RG-316, 26 AWG Str SCCS, 95% SC Braid, FEP Jkt, Commercial Non-QPL
26 AWG · SCCS - Silvered Copper Covered Steel · PTFE - Polytetrafluoroethylene · FEP - Fluorinated Ethylene Propylene
3 items

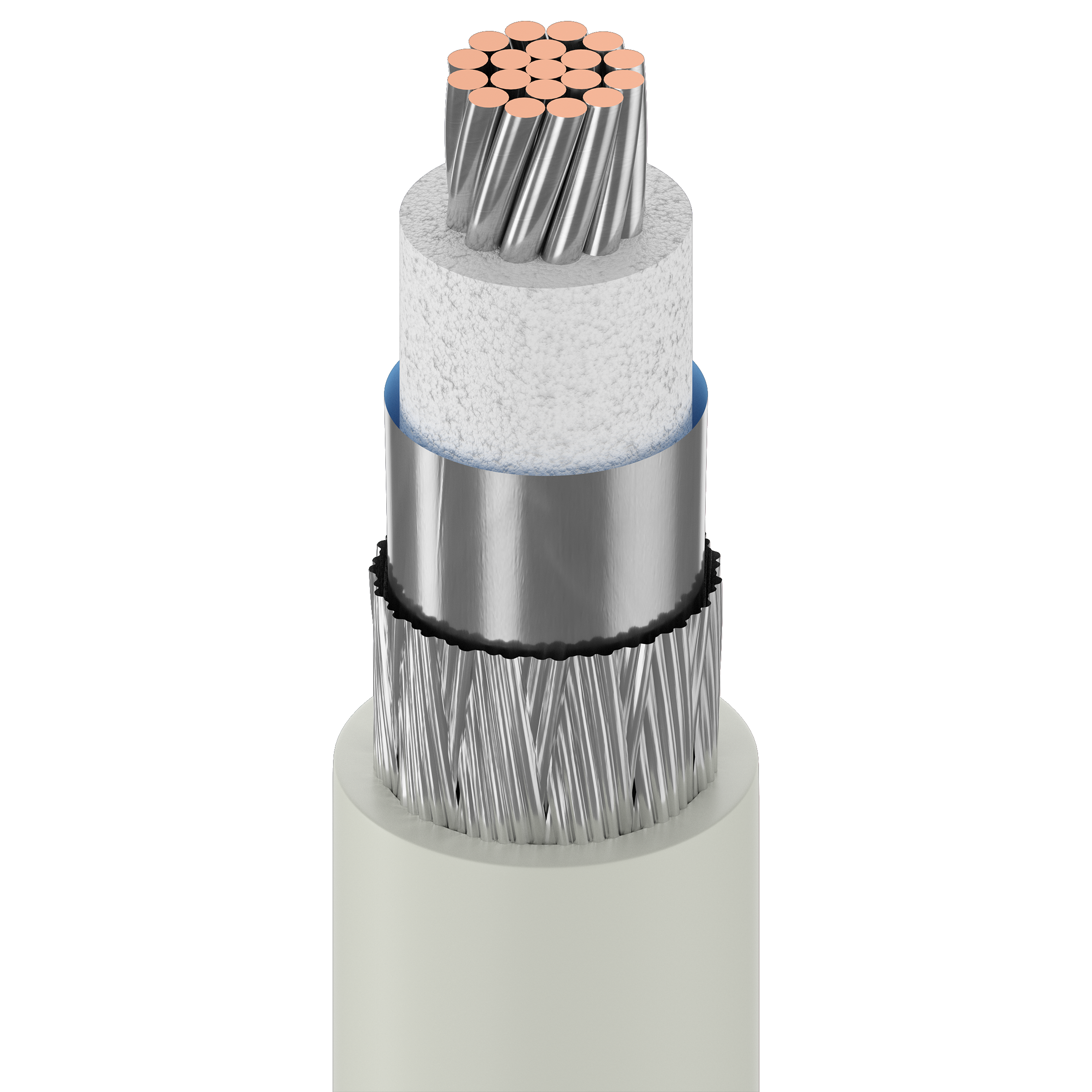

89907
Thinnet 10BASE2, RG-58A/U Type, #20 Str, FFEP, Duobond II+TC Braid, PVDF Jkt, CMP
20 AWG · TC - Tinned Copper · PFA - Perfluoroalkoxy (Foam) · PVDF - Polyvinylidene Fluoride
3 items

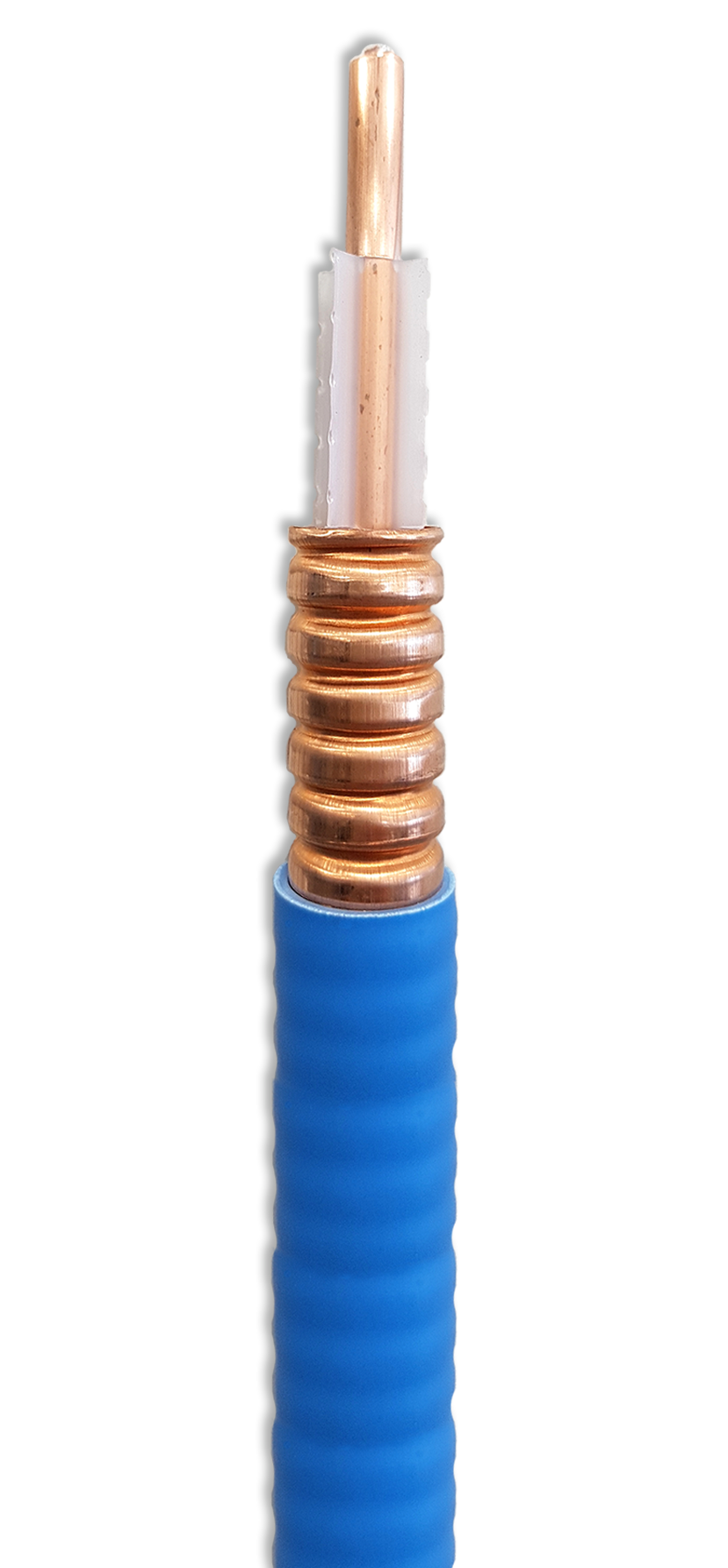

RA500P
Low Loss 1⁄2” Coaxial Cables
5 · BCCA - Bare Copper Covered Aluminum · PE - Polyethylene (Semi-Solid) · PVC - Polyvinyl Chloride
3 items
1671J
Conformable Coax, 50 Ohm RG-405, 24 AWG Solid SCCS, Copper-Tin Composite Shield, PVC Jacket
1 · 24 AWG · SCCS - Silvered Copper Covered Steel · PTFE - Polytetrafluoroethylene
2 items
1673B
50 Ohm Microwave, RG402 Commercial Non-QPL Product, 19 AWG SPC Coax, Unjacketed
SC - Silvered Copper · PTFE - Polytetrafluoroethylene · No Jacket
2 items
1673J
50 Ohm Microwave, RG402, #19 SPCCS, PVC Jacket
SCCS - Silvered Copper Covered Steel · PTFE - Polytetrafluoroethylene · PVC - Polyvinyl Chloride · 30 V RMS
2 items
1675A
Conformable Coax, 50 Ohm, RG-401, 14 AWG Solid SCCS, Copper-Tin Composite Shield, Unjacketed
1 · 14 AWG · SCCS - Silvered Copper Covered Steel · PTFE - Polytetrafluoroethylene
2 items

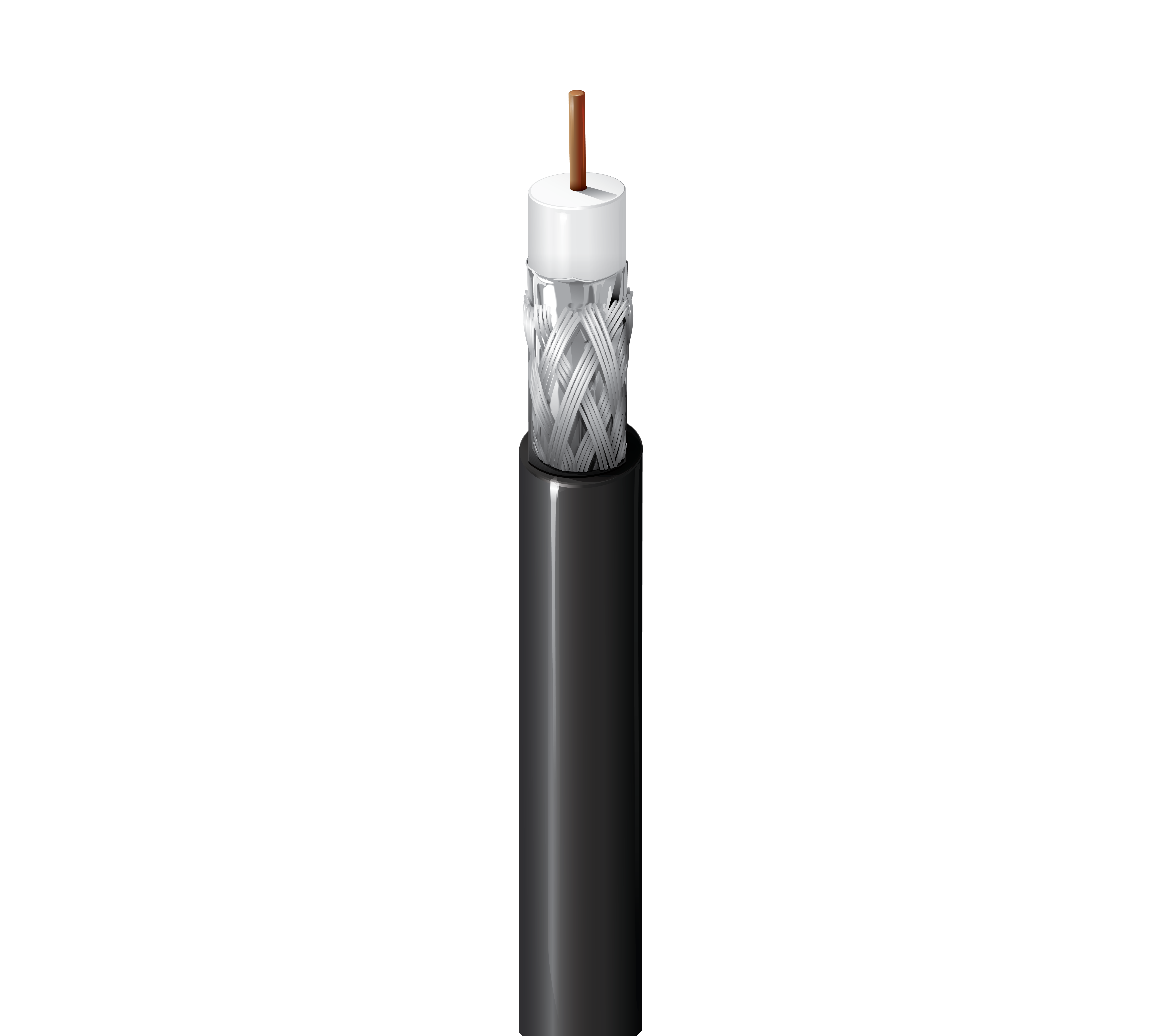

7733A
50 Ohm Wireless Transmission Coax, RG-8, 10 AWG Solid BC, Foil + 90% TC Braid, PVDF Jkt, CMP, Low Loss
10 AWG · BC - Bare Copper · FEP - Fluorinated Ethylene Propylene (Foam) · PVDF - Polyvinylidene Fluoride
2 items
7806A
50 Ohm Wireless Transmission Coax, RF 195, RG58, 19 AWG Solid BC, Foil + 90% TC Braid, PE Jkt
19 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PE - Polyethylene
2 items
7806R
50 Ohm Wireless Transmission Coax, RF 195, RG58, 19 AWG Solid BC, Foil + 90% TC Braid, PVC Jkt, CMR
19 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
2 items7807A
50 Ohm Wireless Transmission Coax, RF 200, RG58, 17 AWG Solid BC, Foil + 95% TC Braid, PE Jkt
17 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PE - Polyethylene
2 items

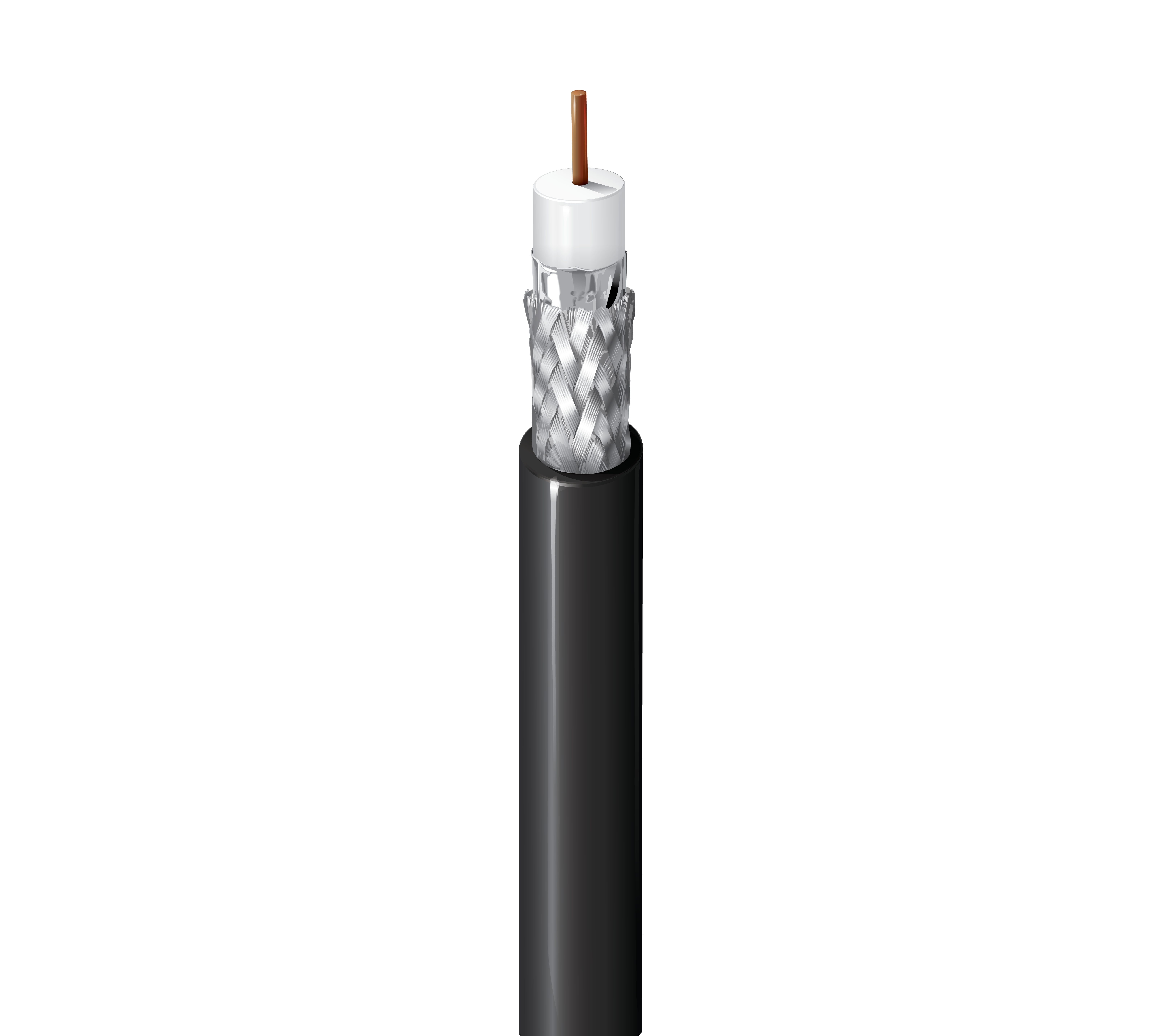

7808A
50 Ohm Wireless Transmission Coax, RF 240, RG58X, 15 AWG Solid BC, Foil + 95% TC Braid, PE Jkt
15 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PE - Polyethylene
2 items
7809A
RF 300 Wireless Coax, #13
BC - Bare Copper · PE - Polyethylene (Foam) · PE - Polyethylene
2 items
7810A
50 Ohm Wireless Transmission Coax, RF 400, RG-8, 10 AWG Solid BCCA, Foil + 95% TC Braid, PE Jkt
10 AWG · BCCA - Bare Copper Covered Aluminum · PE - Polyethylene (Foam) · PE - Polyethylene
2 items
7810WB
RF400 Wireless Coax, RG8, #10, Waterblocked
BCCA - Bare Copper Covered Aluminum · PE - Polyethylene (Foam) · PE - Polyethylene
2 items
8267
Mil-Spec Coax, 50 Ohm, RG-213, 13 AWG Str BC, 95% BC Braid, PVC Jkt, CMX, Commercial Non-QPL
13 AWG · BC - Bare Copper · PE - Polyethylene · PVC - Polyvinyl Chloride (Non-Contaminating)
2 items

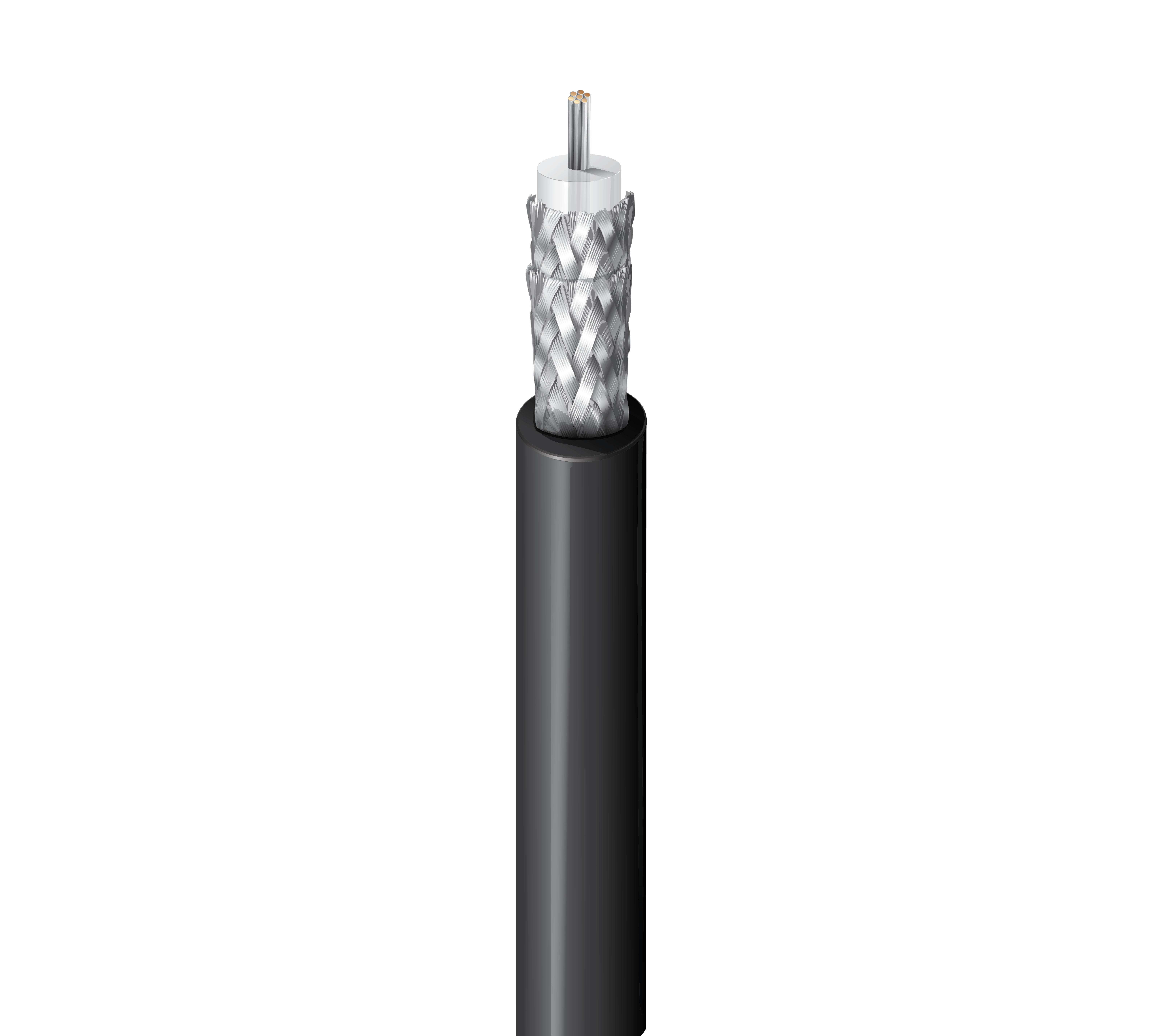

8268
Mil-Spec Coax, 50 Ohm, RG-214, 13 AWG Str SC, Double 95% SC Braid, PVC Jkt, CMX, Commercial Non-QPL
13 AWG · SC - Silvered Copper · PE - Polyethylene · PVC - Polyvinyl Chloride (Non-Contaminating)
2 items
9311
50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Str TC, 55% TC Braid, PVC Jkt, PVC Jkt
1 · 20 AWG · TC - Tinned Copper · PE - Polyethylene (Foam)
2 items

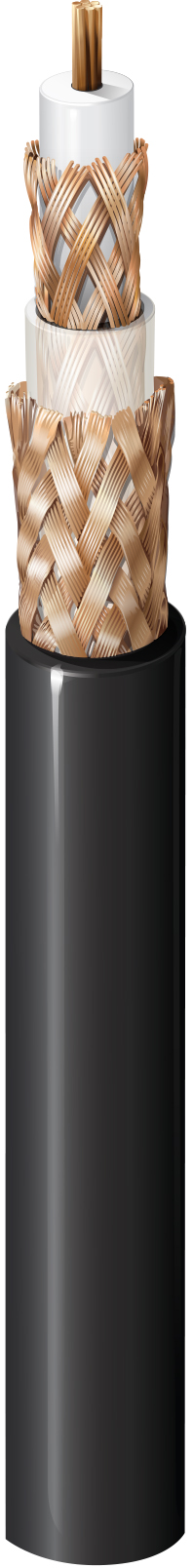

9888
50Ω RG-8/U Type, #11 Str BC, FPE Ins, BC Braid, PE inner Jkt, BC Brd, PE Jkt
11 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PE - Polyethylene
2 items
9913F7
50 Ohm Wireless Transmission Coax, RG-8, 10 AWG Str BC, Foil + 90% TC Braid, PVC Jkt, Flexible
10 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
2 items
9914
50 Ohm Wireless Transmission Coax, RG-8, 10 AWG Solid BC, Foil + 95% TC Braid, PVC Jkt, CMG
10 AWG · BC - Bare Copper · PE - Polyethylene (Foam) · PVC - Polyvinyl Chloride
2 items

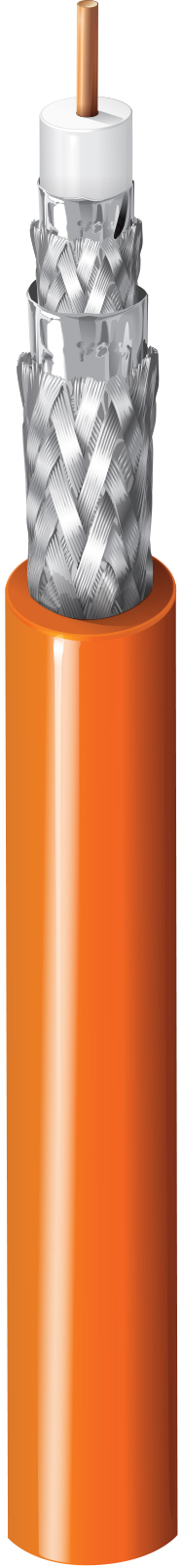

89880
50Ω, #12 Sol BC, FFEP Ins, Duobond IV® quad shield, PVDF Jkt, CMP
12 AWG · BC - Bare Copper · FEP - Fluorinated Ethylene Propylene (Foam) · PVDF - Polyvinylidene Fluoride
2 items
89913
50 Ohm Wireless Transmission Coax, RG-8, 10 AWG Solid BC, Foil + 90% TC Braid, PVDF Jkt, CMP
10 AWG · BC - Bare Copper · FEP - Fluorinated Ethylene Propylene · PVDF - Polyvinylidene Fluoride
2 items

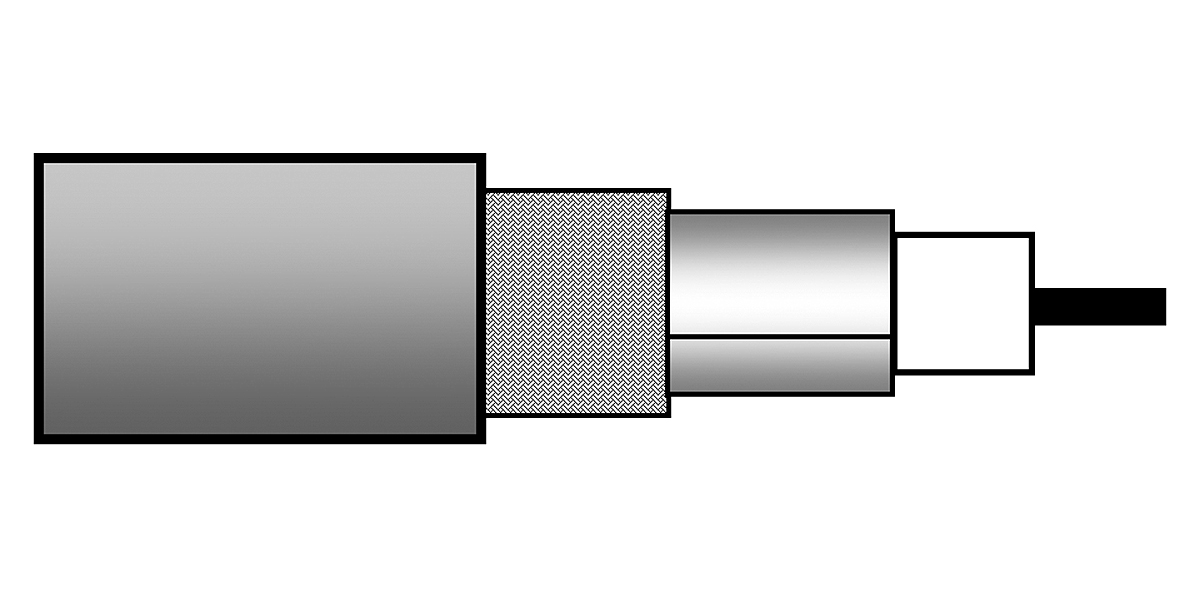

H155A01
H155A01 - 50 Ohm Wireless Transmission Coax, H155, 16 AWG Stranded BC, Foil + 80% TC Braid, PE Jkt
1 · 16 AWG · BC - Bare Copper · PE - Polyethylene (Foam)
2 items

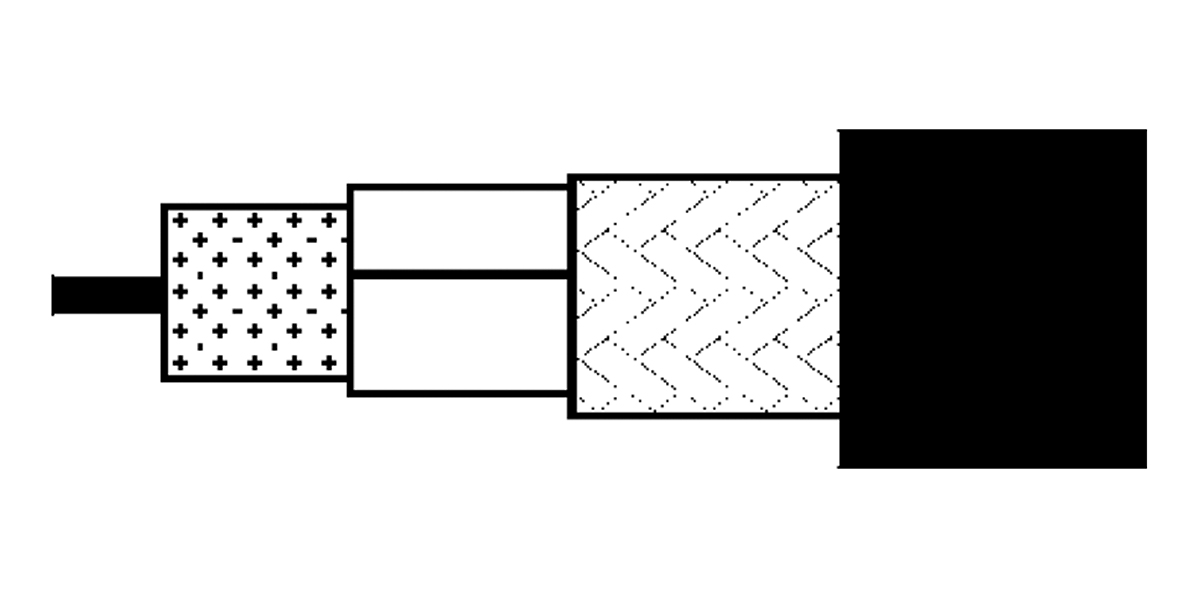

H500C00
H500C00 - 50 Ohm Wireless Transmission Coax, H500, 11 AWG Solid BC, CU-Foil + 50% BC Braid, PE Jkt
1 · 11 AWG · BC - Bare Copper · PE - Polyethylene (Foam)
2 items

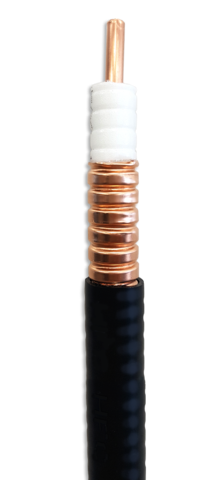

RA500
Low Loss 1⁄2” Coaxial Cables
5 · BCCA - Bare Copper Covered Aluminum · PE - Polyethylene (Foam) · PE - Polyethylene
2 items
1671B
50 Ohm Microwave, RG405 Commercial non-QPL Product, 24 AWG SPC Coax, Unjacketed
SC - Silvered Copper · PTFE - Polytetrafluoroethylene · No Jacket · 30 V RMS (UL AWM Style 10245)
1 item
1673A
Conformable Coax, 50 Ohm, RG-402, 19 AWG Solid SCCS, Copper-Tin Composite Shield, Unjacketed
19 AWG · SCCS - Silvered Copper Covered Steel · PTFE - Polytetrafluoroethylene · No Jacket
1 item
1674A
Conformable® Coax, 50 Ohm Microwave, #29, SPCCS, Unjacketed
SCCS - Silvered Copper Covered Steel · PTFE - Polytetrafluoroethylene · No Jacket · 30 V RMS
1 item
9251
52 Ohm, RG8, 13 AWG, CMX
BC - Bare Copper · PE - Polyethylene · PVC - Polyvinyl Chloride (Non-Contaminating)
1 item
