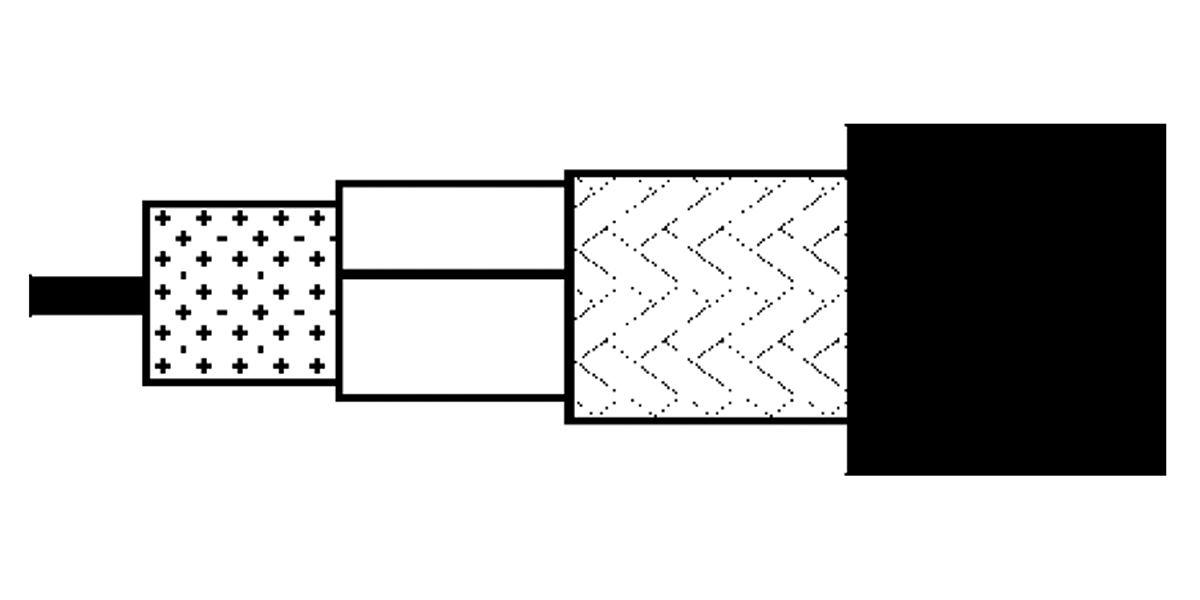

H1000C3 - 50 Ohm Wireless Transmission Coax, H1000B, RG8, 10 AWG Solid BC, CU-Foil + 85% BC Braid, PE Jkt
50 Ohm Wireless Transmission Coax, H1000B, RG8, 10 AWG Solid Bare Copper Conductor, PE Insulation, Copper foil + 85% Bare Copper Braid Shield, PE Jacket
- Availability
- EMEA | Asia Pacific
- Status
- Active
- Orderable items
- 1
Part numbers
H1000C3 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| H1000C3.00500 | Black | Reel | 500 m | 8719605085313 | Order online |
Specifications
Product Overview
| Suitable Applications | Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification) |
|---|
Construction Details
| RG Type | 8 |
|---|---|
| Insulation Table Notes | Centricity min. 85% |
| Outer Jacket1 Table Notes | According to European Standard EN 50290-2-20 |
Conductor
| No. of Elements | 1 |
|---|---|
| Size | 10 AWG |
| Stranding | Solid |
| Nom. Diameter | 2.62 mm |
| Material | BC - Bare Copper |
Insulation
| Element | Insulated Conductor |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Insulation Diameter | 7.15 mm (0.281 in) |
Outer Shield
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Tape | Bi-Laminate (Bare Copper+Poly) | 100% |
| 2 | Braid | Bare Copper (BC) | 85% |
Outer Jacket
| Material | PE - Polyethylene |
|---|---|
| Nom. Diameter | 10.3 mm |
Electrical Characteristics
| Regularity of Impedance | Min. 46 dB |
|---|---|
| Attenuation Table Notes | Max. attenuation 10% higher |
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 5 MHz | 0.9 dB/100m |
| 500 MHz | 2.8 dB/100m |
| 100 MHz | 4.0 dB/100m |
| 200 MHz | 5.7 dB/100m |
| 400 MHz | 8.2 dB/100m |
| 600 MHz | 10.2 dB/100m |
| 800 MHz | 11.9 dB/100m |
| 1000 MHz | 13.4 dB/100m |
| 2000 MHz | 19.7 dB/100m |
| 2500 MHz | 22.8 dB/100m |
| 2750 MHz | 23.8 dB/100m |
| 3000 MHz | 25.2 dB/100m |
| 4000 MHz | 29.7 dB/100m |
Electricals
| Max. Conductor DCR | 3.5 Ohm/km (1.1 Ohm/1000ft) |
|---|---|
| Nom. Outer Shield DCR | 4.5 Ohm/km (1.4 Ohm/1000ft) |
| Nom. Capacitance Cond-to-Shield | 80 pF/m (24 pF/ft) |
| Nom. Characteristic Impedance | 50 Ohm |
| Nom. Velocity of Prop. | 83% |
Screening
| Frequency | 30 - 1000 MHz |
|---|---|
| Min. Screening Attenuation | 90 dB |
Mechanical Characteristics
Temperature
| Operating | -60°C To +70°C |
|---|---|
| Installation | -5°C To +50°C |
| Storage | -60°C To +70°C |
Bend Radius
| Stationary Min. | 100 mm (3.9 in) |
|---|
Standards and Compliance
| Environmental Suitability | Outdoor |
|---|---|
| ISO/IEC Compliance | IEC 61196 |
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.227 Revision Date: 02-20-2026 |
|---|
