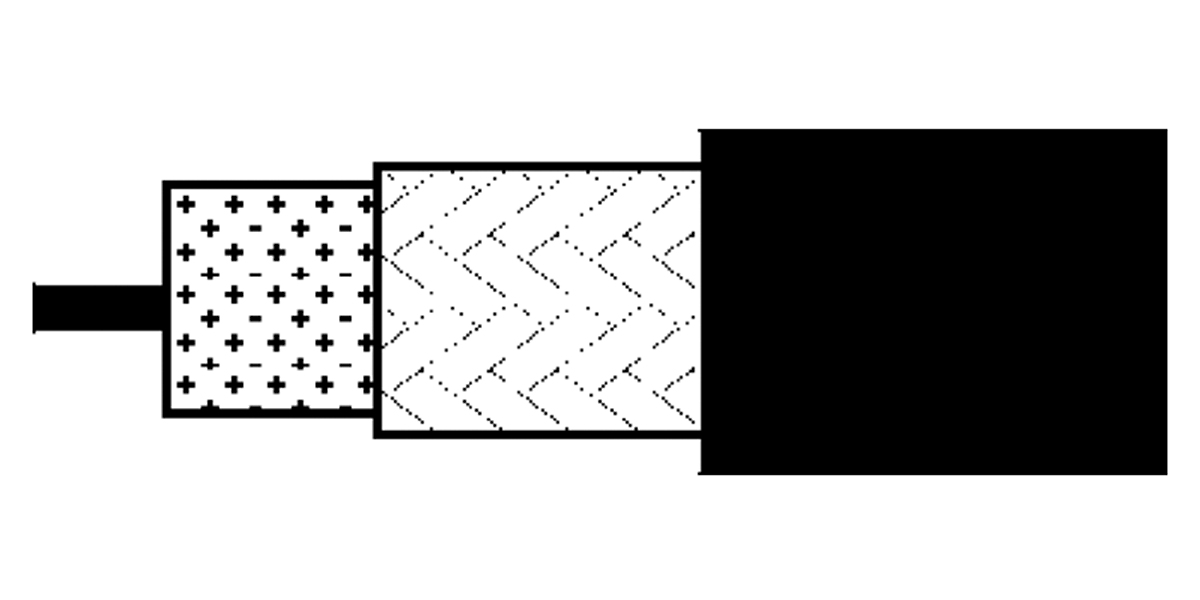

H1000C2 - 50 Ohm Wireless Radiating Coax, H1000, RG8, 10 AWG Solid BC, 25% BC Braid, PVC Jkt
50 Ohm Wireless Radiating Coax, H1000, RG8, 10 AWG Solid Bare Copper Conductor, PE Insulation, 25% Bare Copper Braid Shield, PVC Jacket
- Availability
- EMEA | Asia Pacific
- Status
- Discontinued
Specifications
Product Overview
| Suitable Applications | Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification) |
|---|
Construction Details
| RG Type | 8 |
|---|---|
| Insulation Table Notes | Centricity min. 85% |
| Outer Jacket1 Table Notes | According to European Standard EN 50290-2-20 |
Conductor
| No. of Elements | 1 |
|---|---|
| Size | 10 AWG |
| Stranding | Solid |
| Nom. Diameter | 2.62 mm |
| Material | BC - Bare Copper |
Insulation
| Material | PE - Polyethylene (Foam) |
|---|---|
| Nom. Insulation Diameter | 7.15 mm (0.281 in) |
Outer Shield
| Outer Shield Type | Braid |
|---|---|
| Material | Bare Copper (BC) |
| Coverage | 25% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 10.3 mm |
Electrical Characteristics
| Regularity of Impedance | Min. 46 dB |
|---|---|
| Attenuation Table Notes | Max. attenuation 10% higher |
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 10 MHz | 2 dB/100m |
| 50 MHz | 4.5 dB/100m |
| 100 MHz | 6.3 dB/100m |
| 230 MHz | 9.6 dB/100m |
| 300 MHz | 11.4 dB/100m |
| 400 MHz | 13 dB/100m |
| 860 MHz | 19.4 dB/100m |
| 1000 MHz | 22.5 dB/100m |
Electricals
| Max. Conductor DCR | 3.5 Ohm/km (1.1 Ohm/1000ft) |
|---|---|
| Nom. Outer Shield DCR | 35 Ohm/km (11 Ohm/1000ft) |
| Nom. Capacitance Cond-to-Shield | 80 pF/m (24 pF/ft) |
| Nom. Characteristic Impedance | 50 Ohm |
| Nom. Velocity of Prop. | 83% |
Mechanical Characteristics
| Bulk Cable Weight | 119 kg/km |
|---|
Temperature
| Operating | -40°C To +70°C |
|---|---|
| Installation | -5°C To +50°C |
| Storage | -40°C To +70°C |
Bend Radius
| Stationary Min. | 100 mm (3.9 in) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor |
|---|---|
| ISO/IEC Compliance | IEC 61196 |
History
| Update and Revision | Revision Number: 0.277 Revision Date: 02-20-2026 |
|---|
