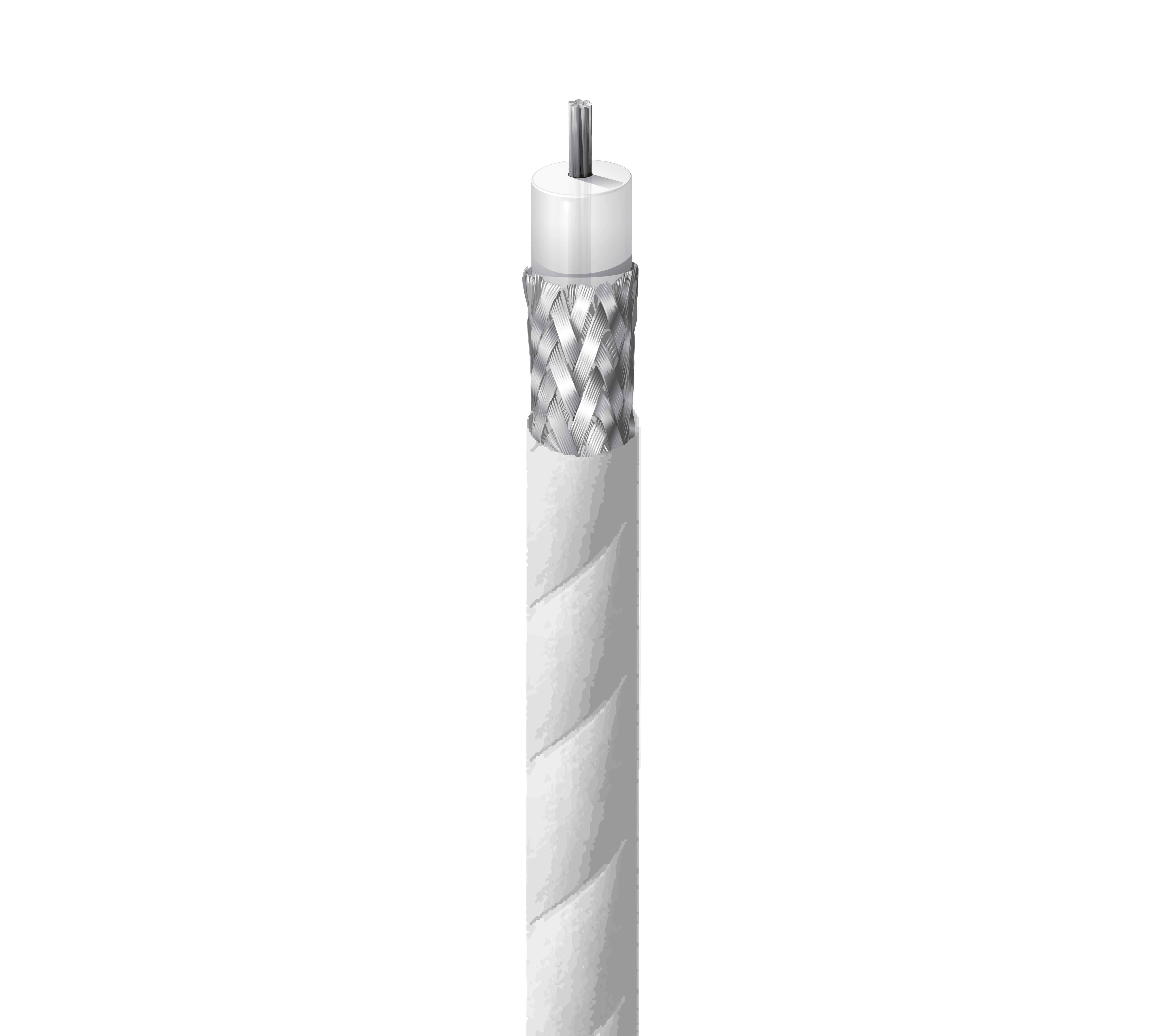

Mil-Spec Coax, 50 Ohm, RG-188, 26 AWG Str SCCS, 95% SC Braid, PTFE Tape Jkt, Commercial Non-QPL
Mil-Spec Coax, 50 Ohm, RG-188, 26 AWG (7x34) Silvered Copper Covered Steel Conductor, PTFE Insulation, 95% Silvered Copper Braid Shield, PTFE Tape Jacket, Commercial, non-QPL
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
83269 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 83269 0091000 | White | Reel | 1,000 ft | 612825203773 | E | Order online |
Specifications
Product Overview
| Suitable Applications | Aerospace wireless communication |
|---|
Construction Details
| RG Type | 188 |
|---|---|
| Overall Cable Diameter (Nominal) | 0.100 in (2.54 mm) |
Conductor
| Size | 26 AWG |
|---|---|
| Stranding | 7x34 |
| Nom. Diameter | 0.020 in |
| Material | SCCS - Silvered Copper Covered Steel |
Insulation
| Material | PTFE - Polytetrafluoroethylene |
|---|---|
| Nom. Insulation Diameter | 0.058 in (1.5 mm) |
| Color Code | White |
Outer Shield
| Layer | 1 |
|---|---|
| Outer Shield Type | Braid |
| Material | Silvered Copper (SC) |
| Coverage | 95% |
Outer Jacket
| Material | PTFE - Polytetrafluoroethylene |
|---|---|
| Nom. Diameter | 0.100 in (2.54 mm) |
Electrical Characteristics
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 1.2 dB/100ft |
| 10 MHz | 2.7 dB/100ft |
| 50 MHz | 5.6 dB/100ft |
| 100 MHz | 8.3 dB/100ft |
| 200 MHz | 12.0 dB/100ft |
| 400 MHz | 17.5 dB/100ft |
| 700 MHz | 23.7 dB/100ft |
| 900 MHz | 27.3 dB/100ft |
| 1000 MHz | 29.0 dB/100ft |
Electricals
| Nom. Conductor DCR | 91.2 Ohm/1000ft |
|---|---|
| Nom. Outer Shield DCR | 8.5 Ohm/1000ft (28 Ohm/km) |
| Nom. Capacitance Cond-to-Shield | 29 pF/ft (95 pF/m) |
| Nom. Characteristic Impedance | 50 Ohm |
| Nom. Velocity of Prop. | 70% |
Voltage
| Voltage Rating | 900 V (Mil-Spec) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 21 lbs (9.5 kg) |
|---|---|
| Bulk Cable Weight | 11 lbs/1000ft |
Temperature
| Operating | -70°C to +200°C |
|---|
Bend Radius
| Installation Min. | 1 in (25 mm) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
|---|---|
| Sustainability | CA Prop 65 |
| Military Compliance | Commercial, non-QPL product (similar to M17/113-RG188) |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.509 Revision Date: 02-20-2026 |
|---|---|
| Footnote | E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'. |
