Product Number: 50983

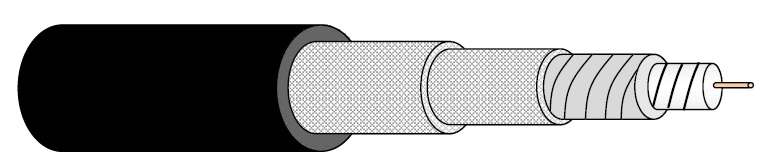

Low Loss Triple Shield Flexible Coaxial Cable

15AWG 1.45mm solid Silver-plated Copper conductor, low density PTFE insulation, Silver plated copper tape wrapping, Double Silver plated copper wire braiding(Coverage≥90%), FEP jacket.

Availability: Asia Pacific
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

50983 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Length	Order
50983 010A200M	Black	200 m	Order online

Specifications

Construction Details

Conductor

Size	24 AWG
Stranding	Solid
Nom. Diameter	1.45 mm

Insulation

Material	PTFE - Polytetrafluoroethylene
Nom. Insulation Diameter	4.15 mm (0.163 in)

Outer Shield

Layer	Outer Shield Type	Material	Coverage
1	Tape	Silvered Copper (SC)	100%
2	Braid	Silvered Copper (SC)	90%
3	Braid	Silvered Copper (SC)	90%

Outer Jacket

Material	FEP - Fluorinated Ethylene Propylene
Nom. Diameter	6.22 mm (0.245 in)

Electrical Characteristics

Electricals

Nom. Capacitance Cond-to-Shield	86 pF/m (26 pF/ft)
Nom. Characteristic Impedance	50 Ohm
Nom. Velocity of Prop.	76%

Screening

Min. Screening Attenuation	>100 dB@30~3000MHz

Voltage

Voltage Rating	1500 V RMS (Max. Operating Voltage)

Standards and Compliance

European Directive Compliance	EU CE Mark, REACH

Product Notes

Notes	VSWR: ≤1.30 for 3m jumper cable, Loss Stability vs. Shaking 1.5m cable: ≤0.1dB@5MHz~30GHz

History

Update and Revision	Revision Number: 0.25 Revision Date: 02-20-2026
Footnote	*The production process of PTEF is very complicated, which may cause the uncontinuous put-up are winded on one reel , while the shortest put-up will not less than 46m.
