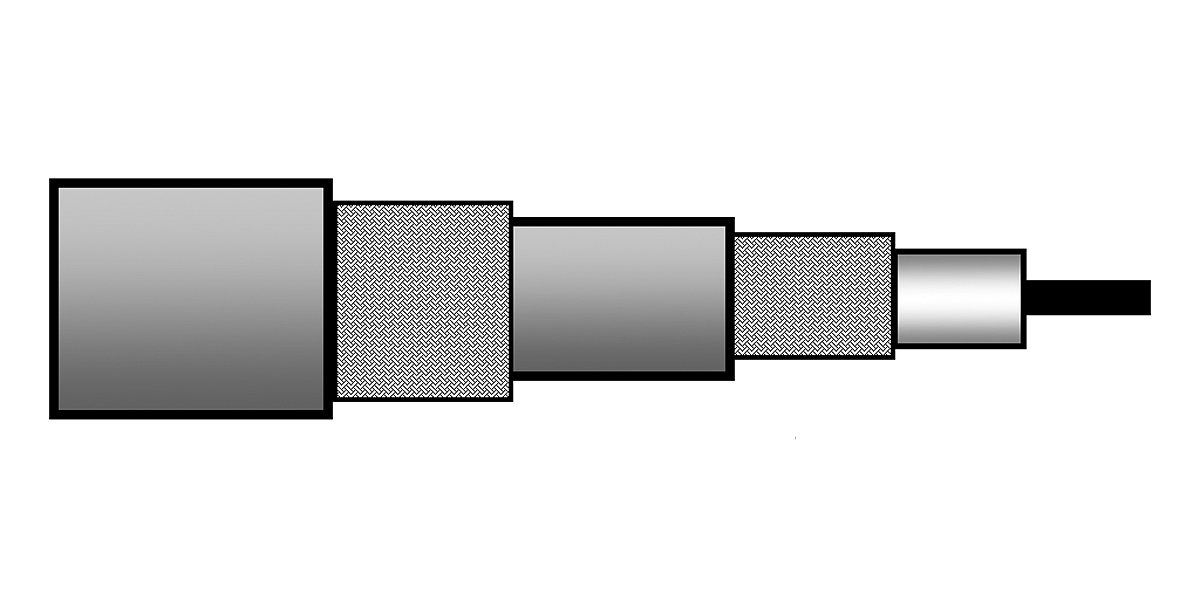

7784E - Triax 11, 15 AWG Solid BC, Double BC Braids, PVC Jkt
Triax 11, 15 AWG Solid Copper Conductor, PE Insulation, 80% Bare Copper Braid Shield, PE Insulation, 80% Bare Copper Braid Shield, PVC Jacket.
- Availability
- EMEA | Asia Pacific
- Status
- Active
- Orderable items
- 2
Part numbers
7784E is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| 7784E.03500 | Red | Reel | 500 m | 8719605014412 | Order online |
| 7784E.031000 | Red | Reel | 1,000 m | 8719605014399 | Order online |
Specifications
Product Overview
| Suitable Applications | Analog Video; Interconnect camera to CCU (camera control unit) |
|---|
Construction Details
| Series Type | Triax 8/11/14 |
|---|
Conductor
| No. of Elements | 1 |
|---|---|
| Size | 15 AWG |
| Stranding | Solid |
| Nom. Diameter | 1.4 mm |
| Material | BC - Bare Copper |
Insulation
| Element | Insulated Conductor |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Insulation Diameter | 6.5 mm (0.26 in) |
Inner Shield
| Shield Type | Braid |
|---|---|
| Material | Bare Copper (BC) |
| Coverage | 80% |
Inner Jacket
| Material | PE - Polyethylene |
|---|---|
| Nom. Diameter | 8.5 mm (0.33 in) |
Outer Shield
| Outer Shield Type | Braid |
|---|---|
| Material | Bare Copper (BC) |
| Coverage | 80% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 11 mm (0.43 in) |
Electrical Characteristics
| Voltage Rating Table Notes | Maximum operating |
|---|
Return Loss
| Frequency | 5 - 850 MHz |
|---|---|
| Min. Return Loss | 23 dB |
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.5 dB/100m |
| 3.58 MHz | 1 dB/100m |
| 5 MHz | 1.2 dB/100m |
| 7 MHz | 1.3 dB/100m |
| 10 MHz | 1.6 dB/100m |
| 67.5 MHz | 4.1 dB/100m |
| 71.5 MHz | 4.3 dB/100m |
| 88.5 MHz | 4.8 dB/100m |
| 100 MHz | 5.2 dB/100m |
| 135 MHz | 6 dB/100m |
| 143 MHz | 6.2 dB/100m |
| 180 MHz | 7.1 dB/100m |
| 270 MHz | 8.7 dB/100m |
| 300 MHz | 9 dB/100m |
| 360 MHz | 10.2 dB/100m |
| 540 MHz | 12.8 dB/100m |
| 720 MHz | 15 dB/100m |
| 750 MHz | 15.4 dB/100m |
| 1000 MHz | 18.2 dB/100m |
| 1500 MHz | 23 dB/100m |
| 2000 MHz | 27.4 dB/100m |
| 2250 MHz | 29.4 dB/100m |
| 3000 MHz | 35.1 dB/100m |
Electricals
| Nom. Conductor DCR | 11.2 Ohm/km (3.41 Ohm/1000ft) |
|---|---|
| Nom. Inner Shield DCR | 6.5 Ohm/km (2.0 Ohm/1000ft) |
| Nom. Outer Shield DCR | 7 Ohm/km (2.1 Ohm/1000ft) |
| Nom. Capacitance Cond-to-Shield | 55 pF/m (17 pF/ft) |
| Nom. Characteristic Impedance | 75 Ohm |
| Nom. Velocity of Prop. | 81% |
Screening
| Frequency | 30 - 850 MHz |
|---|---|
| Min. Screening Attenuation | 75 dB |
Voltage
| Voltage Rating | 400 V RMS |
|---|
Mechanical Characteristics
| Max. Pull Tension | 300 N (67 lbf) |
|---|
Temperature
| Operating | -40°C To +70°C |
|---|---|
| Installation | -5°C To +70°C |
| Storage | -40°C To +70°C |
Bend Radius
| Stationary Min. | 110 mm (4.3 in) |
|---|
Standards and Compliance
| Environmental Suitability | Indoor (Not Riser or Plenum) |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| European Directive Compliance | EU CE Mark |
| UK Regulation Compliance | UKCA Mark |
History
| Update and Revision | Revision Number: 0.323 Revision Date: 09-08-2026 |
|---|
