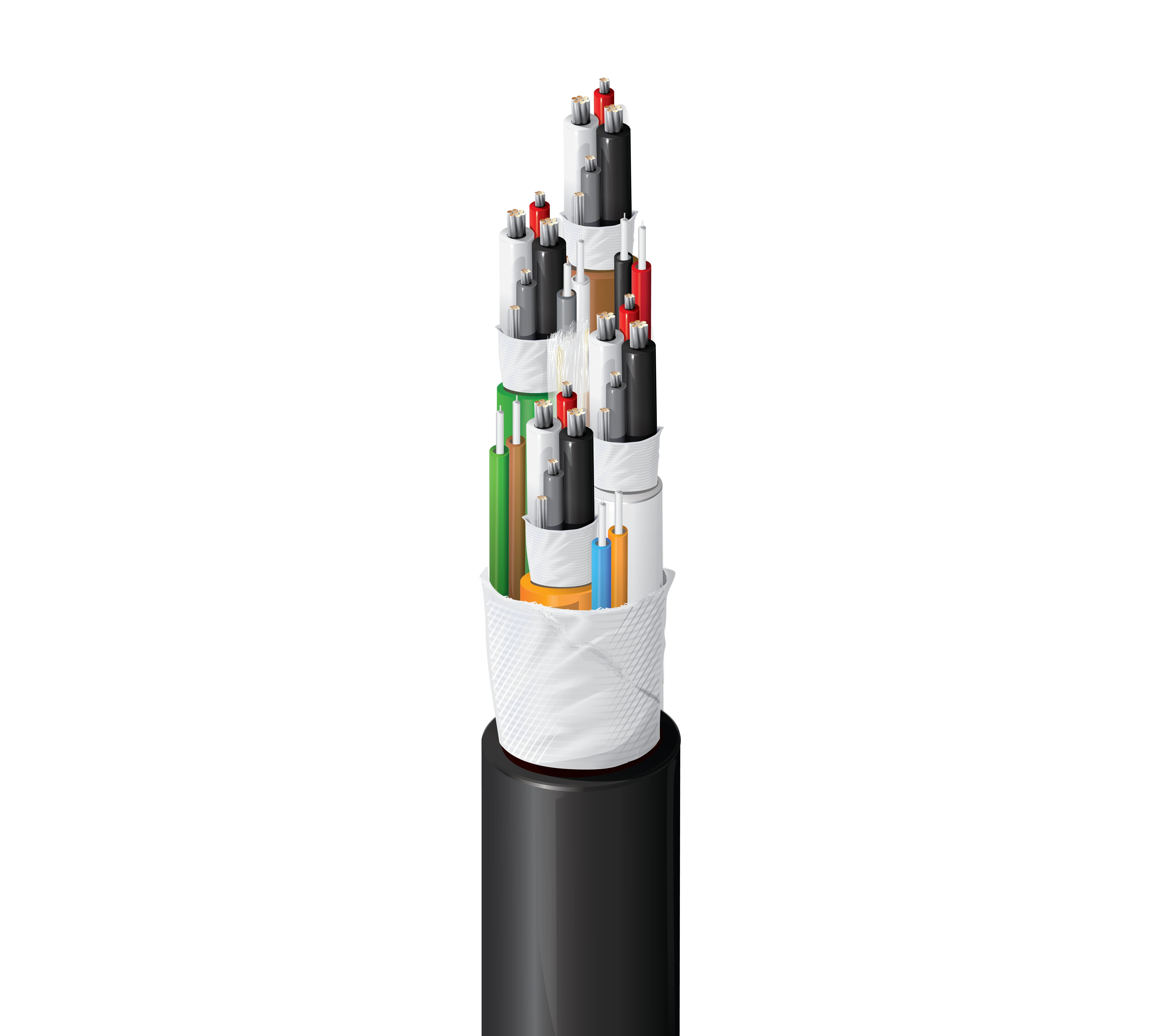

4-Channel SMPTE Stadium Cable, 8 Single Mode Fiber, 8 Conductor 18 AWG and 8 Conductor 24 AWG, Plenum
4-Channel SMPTE Stadium Cable, 8 Single Mode Fiber, 8 TC Conductor (19x30) 18 AWG and 8 TC Conductor (7x32) 24 AWG, FEP Insulation, Beldfoil Shield, PVDF Jacket, Plenum
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
7844P is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Put-Up Type | Length | Order |
|---|---|---|---|
| 7844P 0101000 | Reel | 1,000 ft | Order online |
| 7844P 0104000 | Reel | 4,000 ft | Order online |
Specifications
Product Overview
| Product Category | SMPTE Cable |
|---|---|
| Suitable Applications | 4 Channel Composite Camera Cable |
Fiber Specifications
| Fiber Buffer Material | PVC - Polyvinyl Chloride |
|---|---|
| Fiber Buffer Diameter | 900 μm |
| Fiber Color Code | TIA-598-D |
Fiber Construction
| Fibers Per Subunit | 1 |
|---|
Conductor Specifications
| Insulation Material | FEP |
|---|
Outer Jacket Specifications
| Nom. Diameter | 0.477 in (12.1 mm) |
|---|
Optical Characteristics
| Wavelength | Max. Attenuation |
|---|---|
| 1310 nm | 0.50 dB/km |
| 1550 nm | 0.50 dB/km |
Mechanical Characteristics
| Bulk Cable Weight | 193 lbs/1000ft (287 kg/km) |
|---|
Temperature Range
| Operating Temperature Range | 0°C to 70°C |
|---|---|
| Installation Temperature Range | 0°C to 70°C |
| Storage Temperature Range | 0°C to 70°C |
Standards and Compliance
| Environmental Suitability | Indoor - Plenum Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, UV Resistance, Aerial - When supported by messenger wire |
|---|---|
| Flammability / Reaction to Fire | NFPA 262 |
| NEC / UL Compliance | CMP |
| CEC / C(UL) Compliance | CMP. |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | SMPTE 311 |
History
| Update and Revision | Revision Number: 0.30 Revision Date: 09-25-2025 |
|---|
