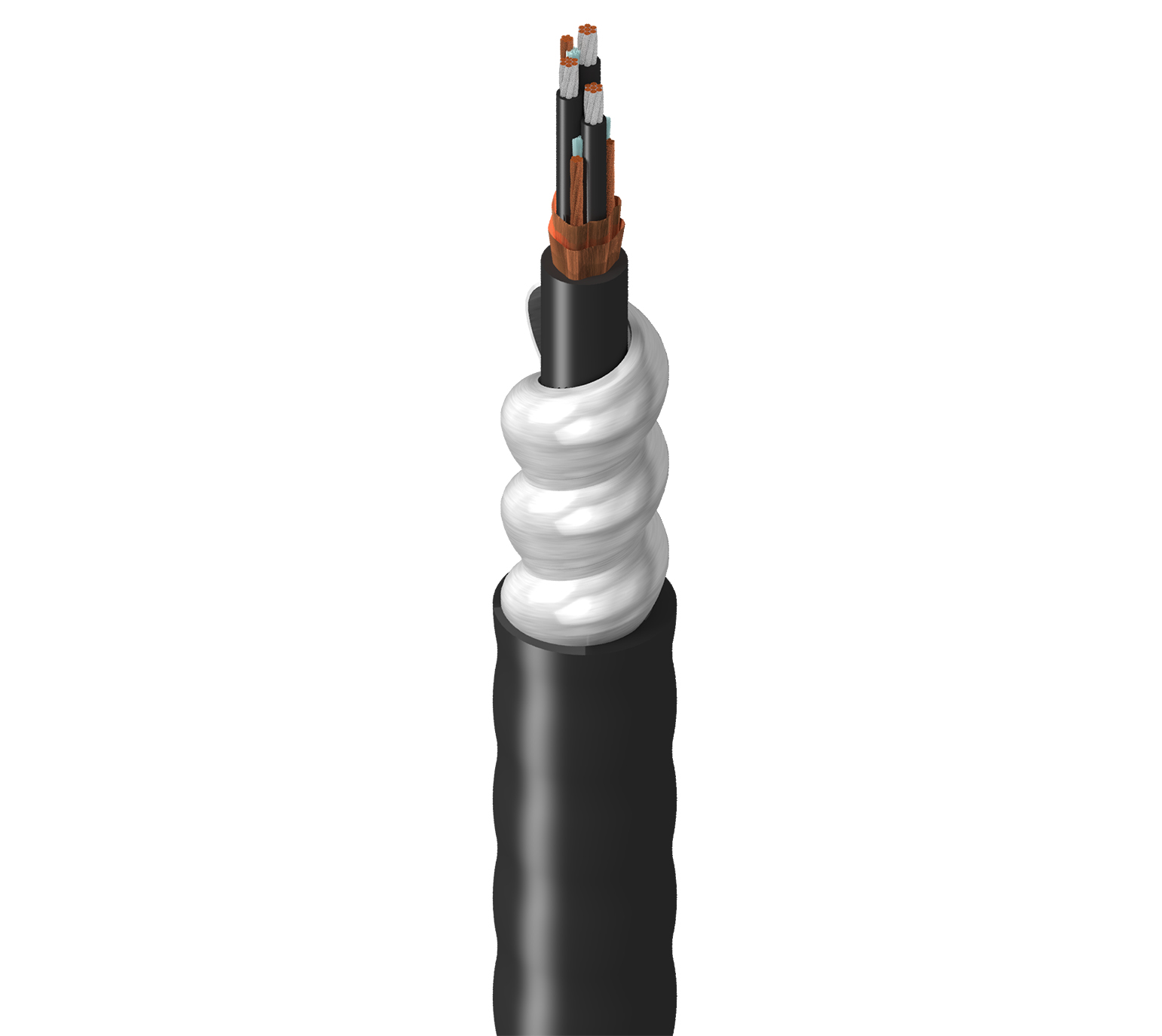

VFD 100% Gnd, 3C #4/0 Str TC XLPE Ins + #4/0 Symm. Seg. Gnd (3 of #2) Str BC, CTS, PVC Jkt, AIA Armor, Blk PVC Jkt, 600V MC 90C Dry/Wet
Belden 100% Ground Flexible VFD, 3 Conductor 4/0AWG (7x19x18) Tinned Copper XLPE Insulation M4 Color Code + 4/0AWG Symmetrical Segmented Ground (3 of 2AWG) Bare Copper Stranded, Overall Dual Copper Tapes Helically Applied Shield, PVC Inner Jacket, Aluminum Interlock Armor, Black PVC Outer Jacket, 600V MC 90C Dry/Wet SUN RES DIR BUR CT USE Oil Resistant
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Variable Frequency Drives (VFD); AC Motor and Drive Systems; Exposure to rodents, crush or impact forces |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 2.079 in (52.81 mm) |
|---|
Conductor
| Element | No. of Elements | Size | Stranding | Material | Notes |
|---|---|---|---|---|---|
| Conductor(s) | 3 | 4/0 AWG | 7x19x18 | TC - Tinned Copper | |
| Ground | 3 | 2 AWG | 7x19x23 | BC - Bare Copper | Segmented Grounds |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | XLPE - Cross-Linked Polyethylene (Thermoset) | 0.057 in (1.4 mm) | 0.684 in (17.4 mm) | Black and Numbered |
| Ground | No Insulation |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Helical Tape | Bare Copper (BC) | 100% |
| Helical Tape | Bare Copper (BC) | 100% |
Inner Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.083 in (2.1 mm) |
| Nom. Diameter | 1.652 in (41.96 mm) |
Armor
| Armor Type & Material | AIA - Aluminum Interlock Armor |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.065 in (1.7 mm) |
| Nom. Diameter | 2.079 in (52.81 mm) |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Element | Conductor(s) |
|---|---|
| Nom. Conductor DCR | 0.047 Ohm/1000ft (0.15 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 29 pF/ft (95 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 53 pF/ft (170 pF/m) |
| Nom. Characteristic Impedence | 63 Ohm |
| Nom. Velocity of Prop. | 55% |
| Max. Current | 260 Amps per Conductor at 30oC |
Voltage
| UL Voltage Rating | 600 V (MC) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 10294 lbs (4669.3 kg) |
|---|---|
| Bulk Cable Weight | 3912 lbs/1000ft (5822 kg/km) |
Temperature
| UL Temperature | 90°C Dry, 90°C Wet |
|---|---|
| Operating | -25°C To +90°C |
Bend Radius
| Stationary Min. | 24.9 in (632 mm) |
|---|---|
| Installation Min. | 24.9 in (632 mm) |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Burial |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | UL 1685 UL Loading, 1202, 383 Vertical Tray Flame Test (70,000 BTU) |
| NEC / UL Compliance | Article 336, MC, XHHW-2 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.91 Revision Date: 04-06-2026 |
|---|
