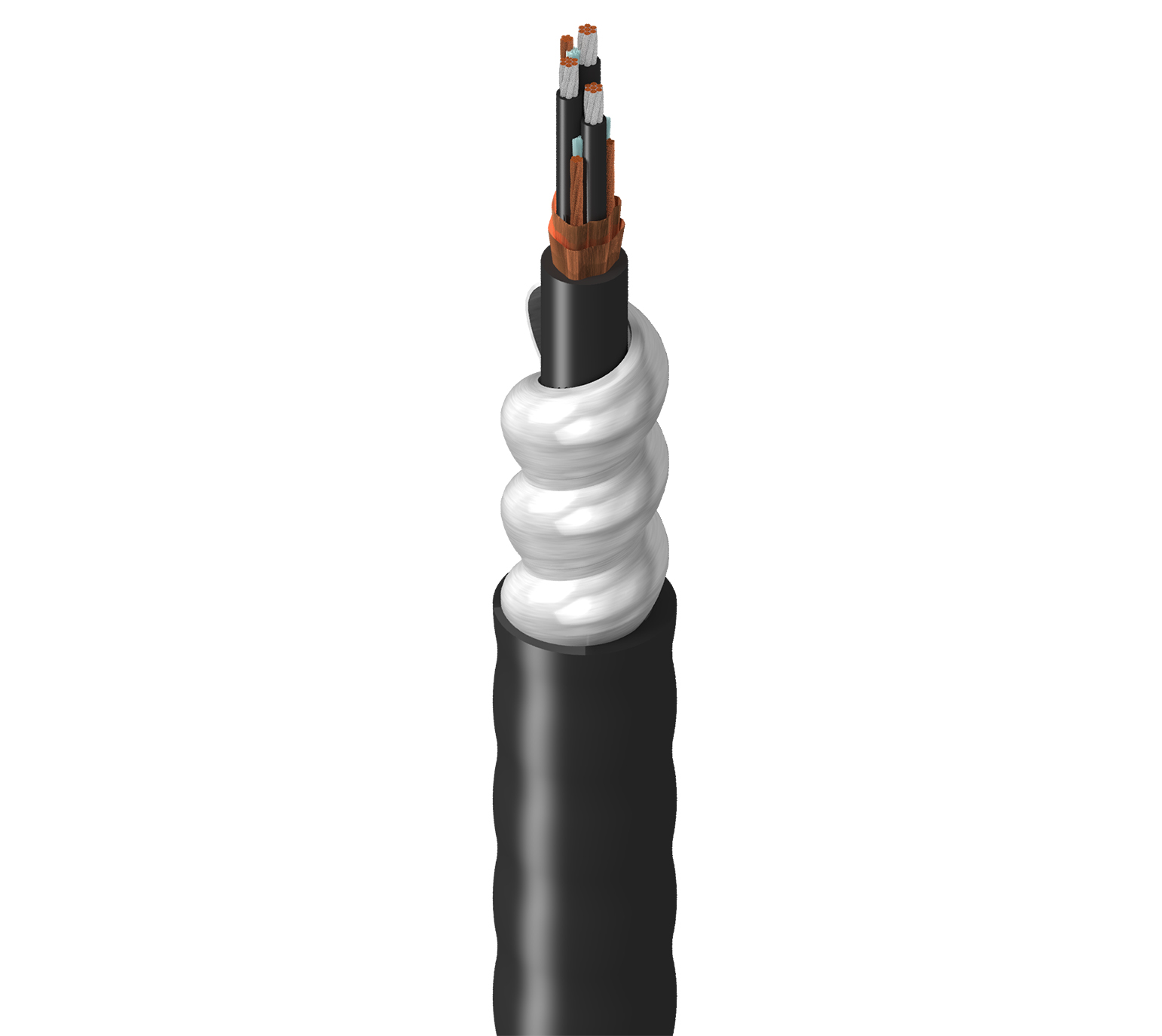

VFD 100% Grd, 3C #1 Str TC XLPE Ins + #1 Symm. Seg. Grd (3 of #6+) Str BC, CTS, PVC Inner Jkt, AIA, Blk PVC Outer Jkt, 600V MC 90C Dry/Wet CT USE
Belden 100% Ground Flexible VFD, 3 Conductor 1AWG (7x19x22) Tinned Copper XLPE Insulation M4 Color Code + 1/0AWG Symmetrical Segmented Ground (3 of 6AWG+) Bare Copper Stranded, Overall Dual Copper Tapes Helically Applied Shield, PVC Inner Jacket, Aluminum Interlock Armor, Black PVC Outer Jacket, 600V MC 90C Dry/Wet SUN RES DIR BUR CT USE Oil Resistant
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Variable Frequency Drives (VFD); AC Motor and Drive Systems; Exposure to rodents, crush or impact forces |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 1.531 in (38.89 mm) |
|---|
Conductor
| Element | No. of Elements | Size | Stranding | Material | Notes |
|---|---|---|---|---|---|
| Conductor(s) | 3 | 1 AWG | 7x19x22 | TC - Tinned Copper | |
| Ground | 3 | 6 AWG | 7x19x27 | BC - Bare Copper | Segmented Grounds |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | XLPE - Cross-Linked Polyethylene (Thermoset) | 0.057 in (1.4 mm) | 0.470 in (11.9 mm) | Black and Numbered |
| Ground | No Insulation |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Helical Tape | Bare Copper (BC) | 100% |
| Helical Tape | Bare Copper (BC) | 100% |
Inner Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 1.197 in (30.40 mm) |
Armor
| Armor Type & Material | AIA - Aluminum Interlock Armor |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.057 in (1.4 mm) |
| Nom. Diameter | 1.531 in (38.89 mm) |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Element | Conductor(s) |
|---|---|
| Nom. Conductor DCR | 0.118 Ohm/1000ft (0.387 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 45 pF/ft (150 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 81 pF/ft (270 pF/m) |
| Nom. Characteristic Impedence | 41 Ohm |
| Nom. Velocity of Prop. | 55% |
| Max. Current | 24 Amps per Conductor at 30oC |
Voltage
| UL Voltage Rating | 600 V (MC) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 4109 lbs (1864 kg) |
|---|---|
| Bulk Cable Weight | 1801 lbs/1000ft (2680 kg/km) |
Temperature
| UL Temperature | 90°C Dry, 90°C Wet |
|---|---|
| Operating | -25°C To +90°C |
Bend Radius
| Stationary Min. | 18.4 in (467 mm) |
|---|---|
| Installation Min. | 18.4 in (467 mm) |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Burial |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | UL 1685 UL Loading, 1202, 383 Vertical Tray Flame Test (70,000 BTU) |
| NEC / UL Compliance | Article 336, MC |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.66 Revision Date: 04-06-2026 |
|---|
