VFD 300% Gnd, 3C+G #2 Str TC, XLPE Ins+PVC Gnd, OS+TC Brd w/4-#8 TC Drains, PVC Jkt, AIA Armor, Blk PVC Jkt, 600V MC 90C Dry/Wet

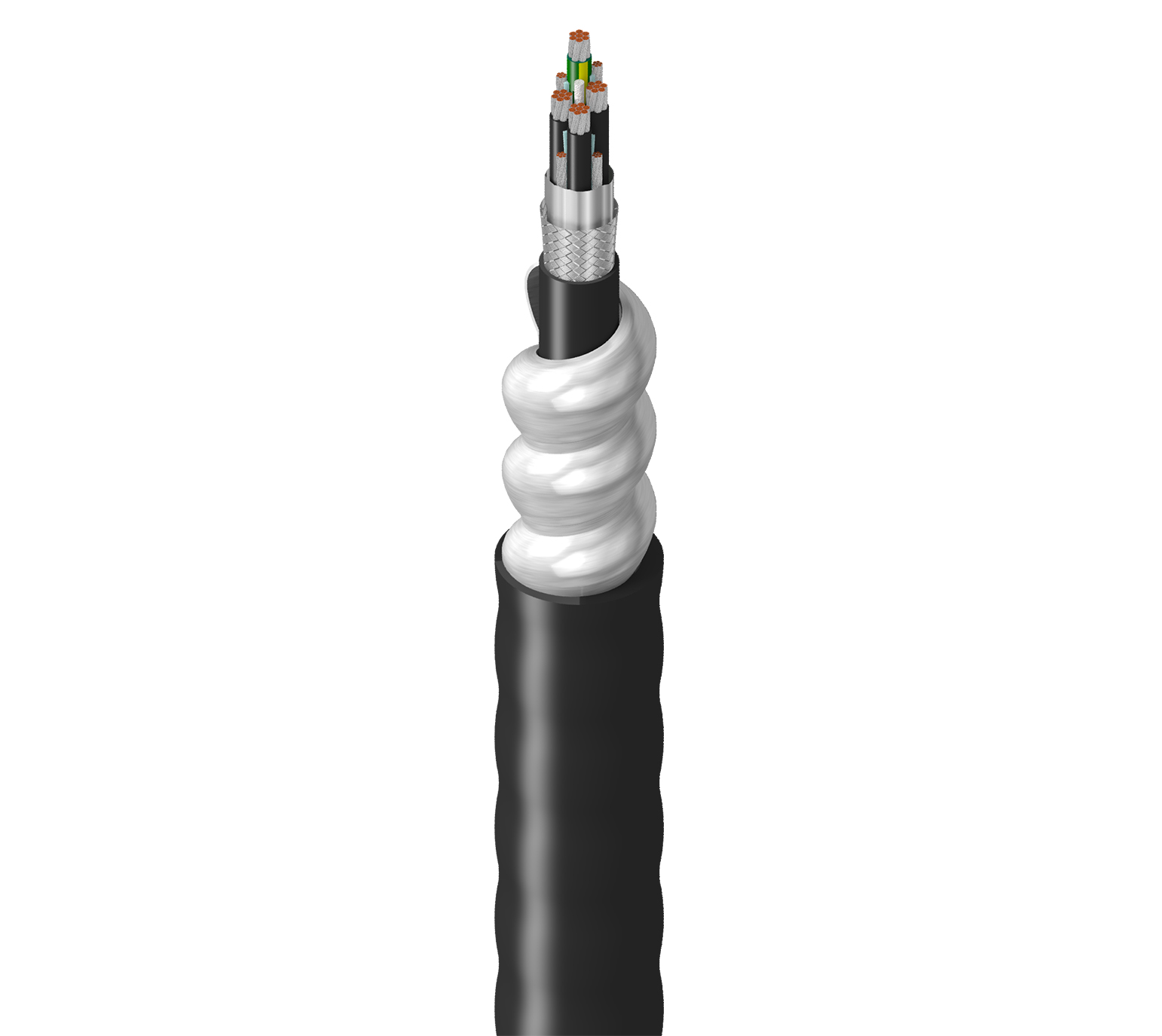

Belden 300% Ground Flexible VFD, 3 Conductor 2AWG (7x19x23) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil®+Tinned Copper Braid(85%) Shield w/4-8AWG Tinned Copper Drains, PVC Inner Jacket, Aluminum Interlock Armor, Black PVC Outer Jacket, 600V MC 90C Dry/Wet SUN RES DIR BUR CT USE Oil Resistant
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Variable Frequency Drives (VFD); AC Motor and Drive Systems; Exposure to rodents, crush or impact forces |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 1.695 in (43.05 mm) |
|---|
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 3 | 2 AWG | 7x19x23 | TC - Tinned Copper |
| Ground | 1 | 2 AWG | 7x19x23 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Color Code |
|---|---|---|---|
| Conductor(s) | XLPE - Cross-Linked Polyethylene (Thermoset) | 0.062 in (1.6 mm) | Black and Numbered |
| Ground | PVC - Polyvinyl Chloride | 0.062 in (1.6 mm) | Green/Yellow Stripe |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Tri-Laminate (Alum+Poly+Alum) | 100% |
| Braid | Tinned Copper (TC) | 85% |
Inner Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 1.305 in (33.15 mm) |
Armor
| Armor Type & Material | AIA - Aluminum Interlock Armor |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.065 in (1.7 mm) |
| Nom. Diameter | 1.695 in (43.05 mm) |
| Ripcord | Yes |
Electrical Characteristics
Electricals
| Element | Conductor(s) |
|---|---|
| Nom. Conductor DCR | 0.15 Ohm/1000ft (0.49 Ohm/km) |
| Nom. Capacitance Cond-to-Cond | 44 pF/ft (140 pF/m) |
| Nom. Capacitance Cond-to-Other (Conds + Shield) | 79 pF/ft (260 pF/m) |
| Nom. Characteristic Impedence | 42 Ohm |
| Nom. Velocity of Prop. | 55% |
| Max. Current | 130 Amps per Conductor at 30oC |
Voltage
| UL Voltage Rating | 600 V (MC) |
|---|
Mechanical Characteristics
| Max. Pull Tension | 3327 lbs (1509 kg) |
|---|---|
| Bulk Cable Weight | 2014 lbs/1000ft (2997 kg/km) |
Temperature
| UL Temperature | 90°C Dry, 90°C Wet |
|---|---|
| Operating | -25°C To +90°C |
Bend Radius
| Stationary Min. | 20.3 in (516 mm) |
|---|---|
| Installation Min. | 20.3 in (516 mm) |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Burial |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | 1202, 383 Vertical Tray Flame Test (70,000 BTU) |
| NEC / UL Compliance | Article 336, MC, RHW-2 |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.87 Revision Date: 04-06-2026 |
|---|
Resources
