PPC - Series
Power Cords for PDU's and other electrical equipment.
- Availability
- EMEA
- Status
- Active
- Orderable items
- 9
Part numbers

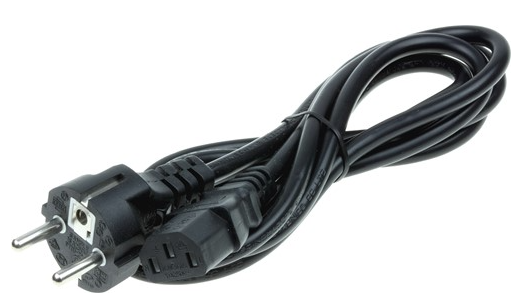

POWER CORDS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Plug 1 | Plug 2 | Voltage Rating | Current Rating | Cord Length | Cable Type | Order |
|---|---|---|---|---|---|---|---|
| PPC-C13BS1VV2 | IEC60320 C13 | BS 1363P | 230 V | 10 A | 2 m | 1.5mm2 H05VV-F | Order online |
| PPC-C13BS1VV3 | IEC60320 C13 | BS 1363P | 230 V | 10 A | 3 m | 1.5mm2 H05VV-F | Order online |
| PPC-C13C14VV3 | IEC60320 C13 | IEC 60320 C14 | 230 V | 10 A | 3 m | 1.5mm2 H05VV-F | Order online |
| PPC-C13SKOVV2 | IEC60320 C13 | Schuko (Type F) | 230 V | 10 A | 2 m | 1.5mm2 H05VV-F | Order online |
| PPC-C19BS1VV2 | IEC60320 C19 | BS 1363P | 230 V | 13 A | 2 m | 1.5mm2 H05VV-F | Order online |
| PPC-C19C14VV2 | IEC60320 C19 | IEC 60320 C14 | 230 V | 10 A | 2 m | 1.5mm2 H05VV-F | Order online |
| PPC-C19SKOVV2 | IEC60320 C19 | Schuko (Type F) | 230 V | 16 A | 2 m | 1.5mm2 H05VV-F | Order online |
| PPC-C19C20VV2 | IEC60320 C19 | IEC 60320 C20 | 230 V | 16 A | 2 m | 1.5mm2 H05VV-F | Order online |
| PPC-C192P1VV2 | IEC60320 C19 | IEC60309 2P + E, 16A, 250V, Watertight IP67 | 230 V | 16 A | 2 m | 1.5mm2 H05VV-F | Order online |
Specifications
Application
| Environmental Space | Indoor |
|---|
Environmental and Overall Characteristics
| Color | Black |
|---|
Standards
| EU CE Mark | Yes |
|---|---|
| EU Directive 2011/65/EU (RoHS 2) | Yes |
Related Part Numbers
| Packaging | Individually packaged in a plastic bag |
|---|---|
| Notes | schematic representation under [DOWNLOADS] |
| Update and Revision | Revision Number: 0.129 Revision Date: 05-11-2026 |
