Product Number: FRTS5

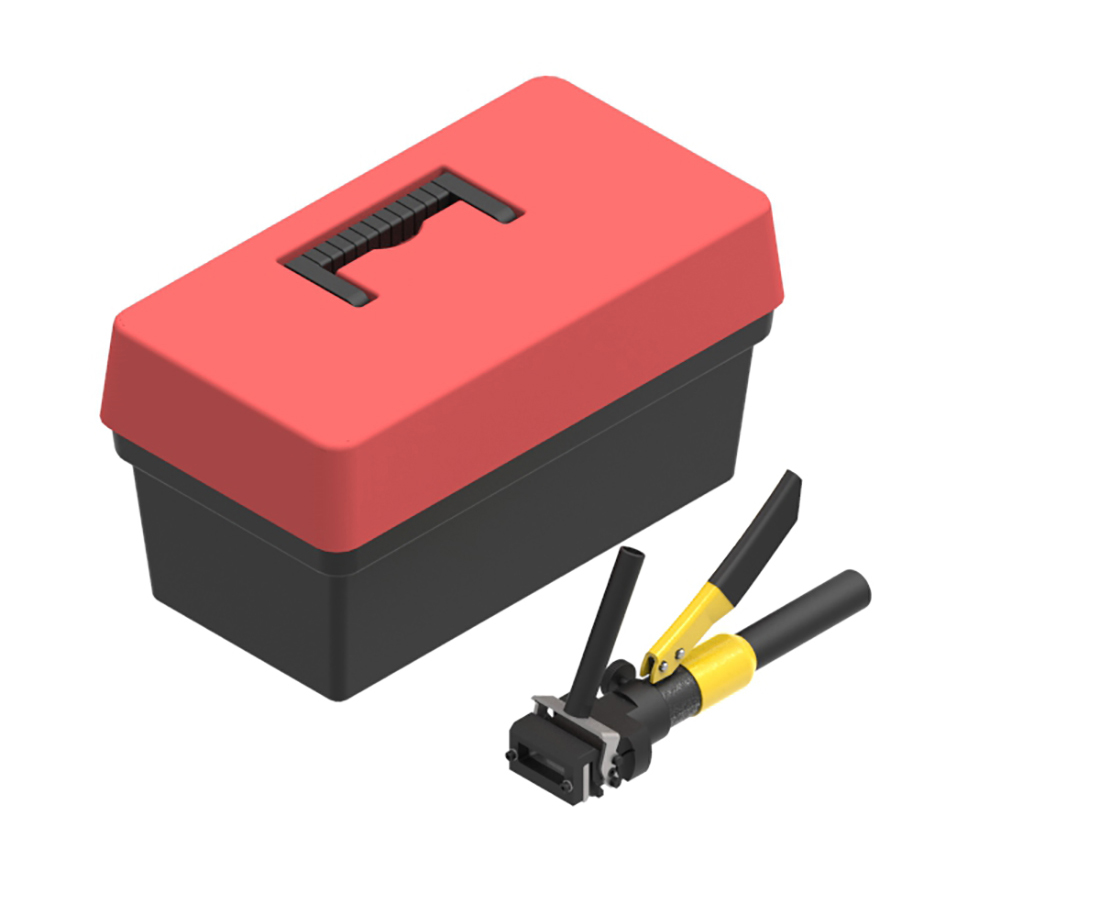

Fiber Raceway Slotting Tool - Hand, Hydraulic with Case

Fiber Raceway Slotting Tool - Hand, Hydraulic Tool with Carrying Case

Availability: EMEA | Americas
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

FRTS5 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Length	Order
FRTS5	Metallic	12.204 in	Order online

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	5.732 lbs
Overall Height	6.496 in (164.998 mm
Overall Width	2.952 in
Overall Length	12.204 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material	Steel and Plastic

Product Notes

Notes

The hydraulic hand held duct slotting tool is a means of making duct end slots, easily, simply and quickly i.e. less than 1 minute to make a slot. The hydraulic tool exerts a force of 5 tonnes, and the jaws are made of hardened carbon steel, for a long service life. To operate, place tool on duct side or end, tighten side release valve knob, pump tool gently, until a slot is made. Release valve knob by unscrewing. Push jaw back using front return handle. Slots for joiners are made repeatedly, quickly and accurately. The slotting tool cuts a slot in the duct end to suit a standard connector. The kit is also provided with a plastic tool box, for transport.
