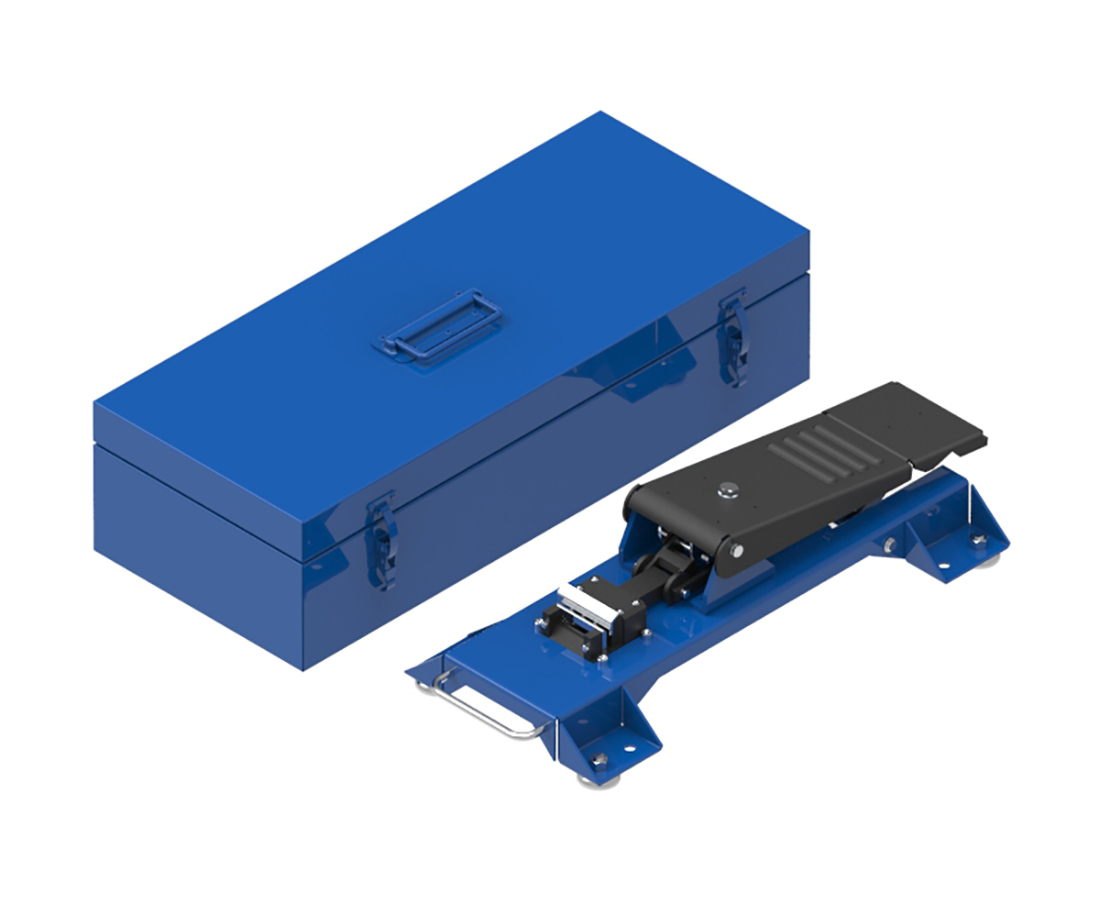

Fiber Raceway Slotting Tool - Foot Operated with Case
Fiber Raceway Slotting Tool - Foot Operated Tool with Carrying Case
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRTS3 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRTS3 | Metallic | 24.015 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 30.864 lbs |
|---|---|
| Overall Height | 8.464 in (214.986 mm |
| Overall Width | 12.204 in |
| Overall Length | 24.015 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Steel |
|---|
Product Notes
| Notes | The foot operated duct slotting tool is a means of making duct end slots, easily, accurately and quickly i.e. less than 1 minute to slot one end of a duct. By using a foot operated system a small effort is required to exert the large force necessary to make a slot. Both hands are free to hold the duct. The jaws are made of hardened carbon steel, for a long service life. To operate, place duct side or end, within the tools cutting guides, hold duct down flush with top face of tool, and press foot operated lever, until a slot is made. Release the slotting punch, using the foot operated release pedal. Remove and reposition duct for next slot. The slotting tool cuts a slot in the duct end to suit a standard joiner; available separately. The kit includes one foot operated slotting tool and a metal tool box, for storage and transport, c/w a foam insert. |
|---|
History
| Update and Revision | Revision Number: 0.31 Revision Date: 03-28-2024 |
|---|
