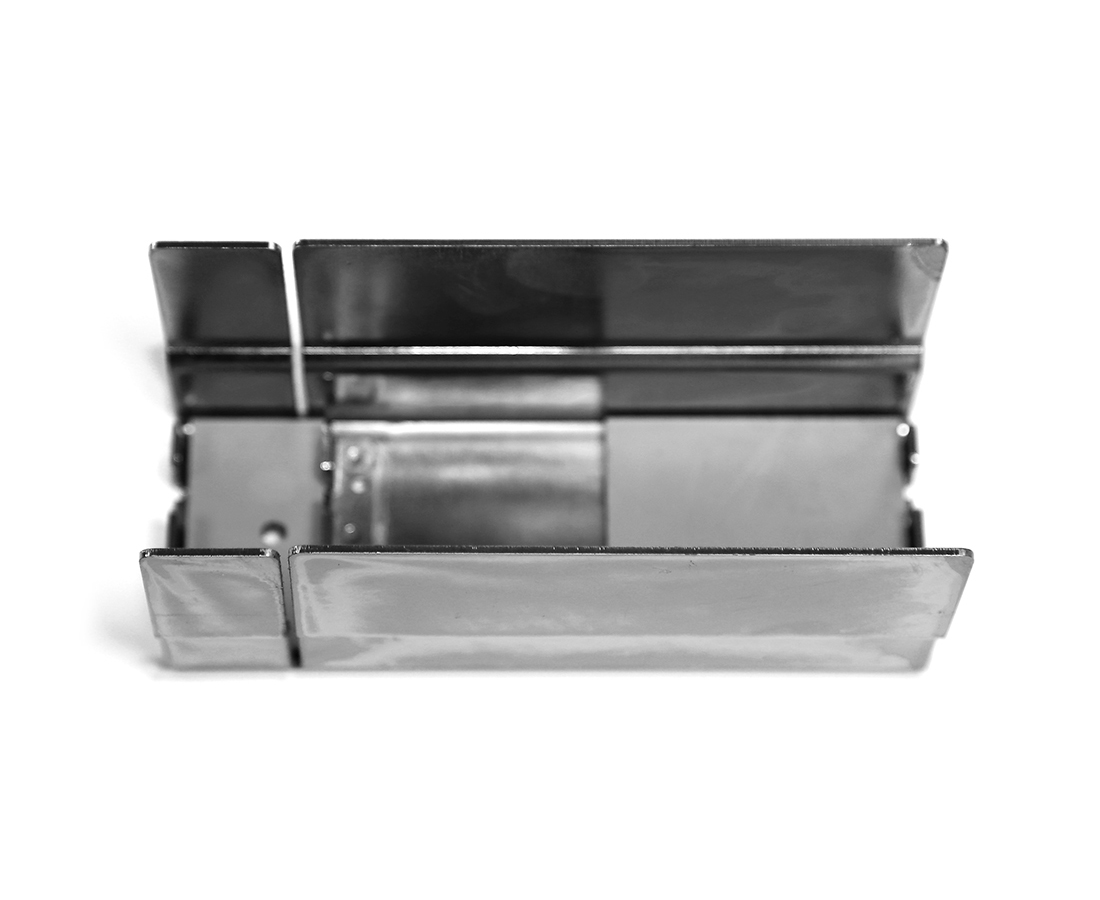

Fiber Raceway Mitre Box, 30mm and 50mm
Fiber Raceway Mitre Box, Suits 30mm and 50mm Duct
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRTM2 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRTM2 | Metallic | 2.519 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 0.26 lbs |
|---|---|
| Overall Height | 2.755 in (69.977 mm |
| Overall Width | 5.905 in |
| Overall Length | 2.519 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Mild steel gold passivated finish |
|---|
Product Notes
| Notes | This mitre box is a simple mechanical means of preparing a shortened length of 30 and 50mm duct for connection to another standard part. e.g. elbow, cross connector, etc. The mitre box ensures that a true 90-degree cut is achieved with a panel saw on each of these duct sizes. |
|---|
History
| Update and Revision | Revision Number: 0.31 Revision Date: 03-28-2024 |
|---|
