Fiber Raceway Duct Cable Separator Kit
Fiber Raceway Duct Cable Separator Kit, Standard
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRTD1 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRTD1 | Metallic | 76.771 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 2.204 lbs |
|---|---|
| Overall Height | 3.149 in (79.985 mm |
| Overall Width | 3.622 in |
| Overall Length | 76.771 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Fire retardant plastic. Halogen free, UL94‐VO rated |
|---|
Product Notes

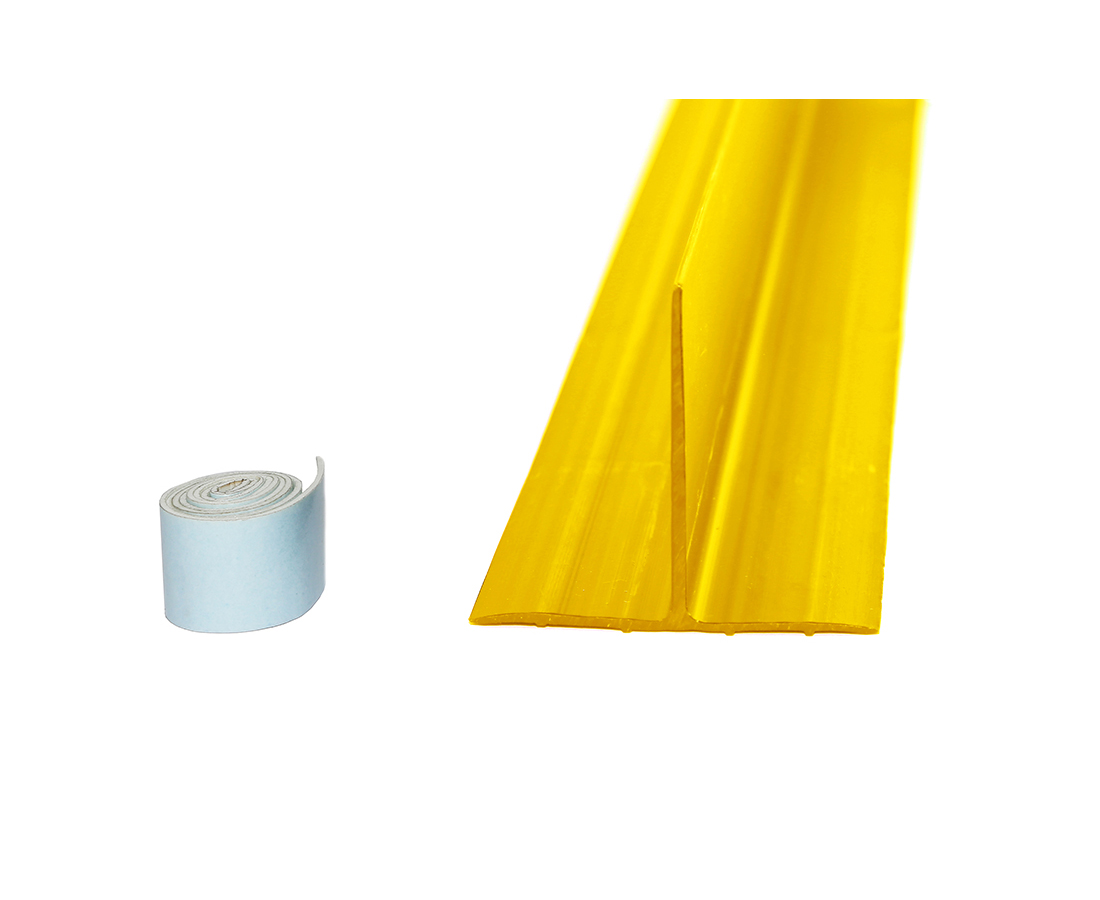

| Notes | The Duct Cable Separator Kit is installed longitudinally along the length of a duct run, to provide a separator or divider in the duct. The item is used to create separate compartments for different cords or cables. A 500mm length of double sided tape is supplied and is used to fasten the cable separator kit in position, longitudinally down the duct run. |
|---|
History
| Update and Revision | Revision Number: 0.31 Revision Date: 03-28-2024 |
|---|
