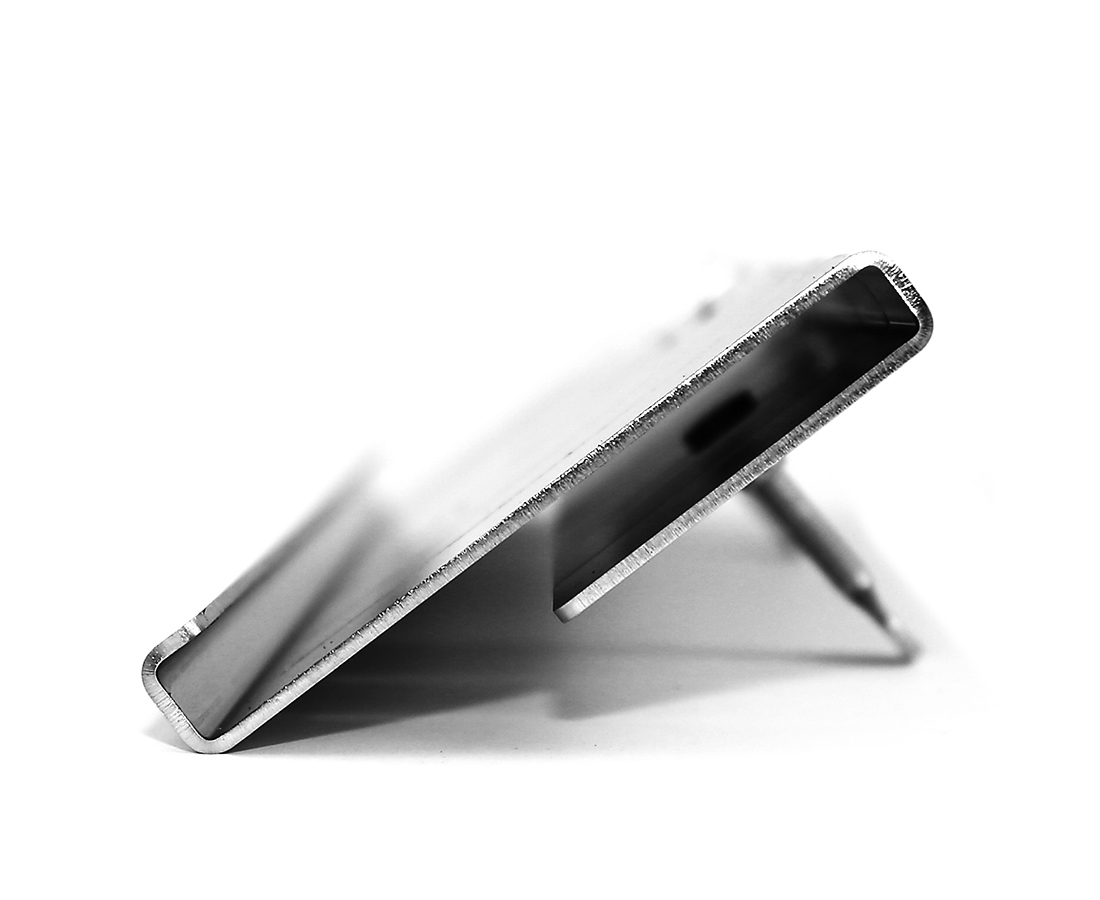

Product Number: FRTC1

Fiber Raceway Cutting Tool, Break-Outs

Fiber Raceway Cutting Tool, For all Break-Outs

Availability: EMEA | Americas
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

FRTC1 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Length	Order
FRTC1	Metallic	0.984 in	Order online

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	2.535 lbs
Overall Height	3.937 in (100.000 mm
Overall Width	16.535 in
Overall Length	0.984 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material	Stainless Steel

Product Notes

Notes

The Cut Out Jig is used to quickly and neatly prepare the side of a new duct length, to make a cut out for quickly installing a drop-off or a break-out guide (ie an outlet trumpet). The jig is centrally located about a centre mark on the top of the duct edge. It is clamped in position, and two quick cuts are made using a hand saw to the full depth of the marked slots for the item to be installed. Next a Stanley knife is run (two or three times) along the bottom of the jigs straight edge, between saw cuts, to make a straight longitudinal cut in the ducts side. The Cut Out Jig is unclamped and removed from the duct, and the prepared piece of duct is removed using light finger pressure. The Stanley knife is used to clean the ducts edges, and the nominated item is quickly and simply fitted into the prepared cut out. The Cut Out Jig is used for: Duct Size Item 50mm x 50mm 100mm x 50mm 100mm x 100mm 220mm x 100mm 300mm x 100mm
