Fiber Raceway Mounting Wall Mount Bracket Kit, 100mm
Fiber Raceway Mounting Wall Mount Bracket Kit, Suits 100mm Duct
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRMW3K is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRMW3K | Metallic | 5.905 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 1.322 lbs |
|---|---|
| Overall Height | 1.771 in (44.983 mm |
| Overall Width | 4.724 in |
| Overall Length | 5.905 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Mild Steel, Nickel Plated |
|---|
Product Notes

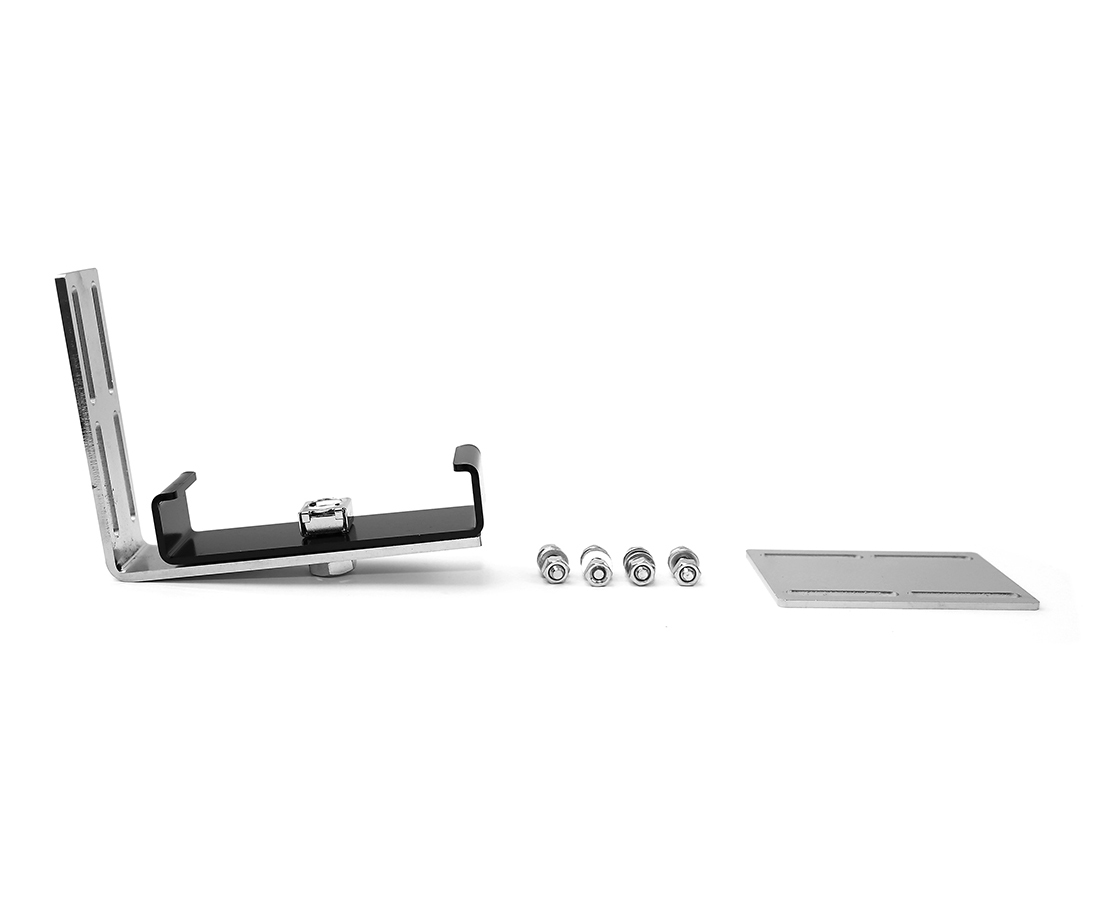

| Notes | The wall-mounting bracket is used to attach 100mm plastic duct to any existing structure. It is simply a right angle bracket with slots for fitting to steel - work or walls, plus a wall mounting plate to allow 37mm of sideways adjustment. On its horizontal face it accepts a 100mm duct mounting bracket; which is included in the kit. |
|---|
History
| Update and Revision | Revision Number: 0.72 Revision Date: 03-28-2024 |
|---|
