Product Number: FRMT5K

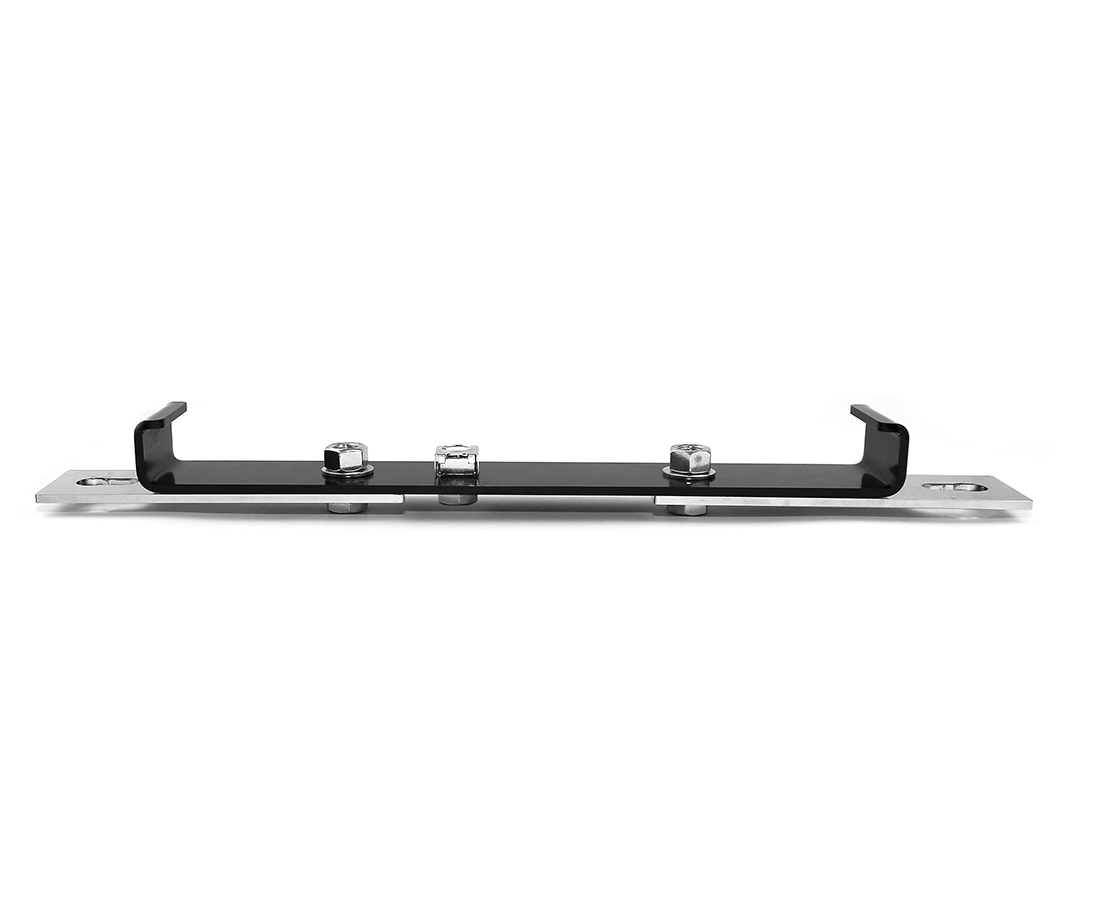

Fiber Raceway Mounting Trapeze Style Kit, 300mm

Availability: EMEA | Americas
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

FRMT5K is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Length	Order
FRMT5K	Metallic	12.992 in	Order online

Specifications

Product Overview

Environmental Space	Indoor

Construction

Weight	2.094 lbs
Overall Height	1.259 in (31.979 mm
Overall Width	1.968 in
Overall Length	12.992 in

Mechanical Characteristics

Mechanical Tests

Description

Product Material

Materials

Material	Mild steel Extensions: Nickel Plated finish Duct Bracket: Powder coat Black Threaded rod, nuts & washers: zinc plated finish

Product Notes

Notes

The mounting bracket kit is used to attach (300x100mm) plastic duct to duct mounting ironwork. They allow 300mm ducting to be fitted to either 1/2” or 5/8” UNC threaded rods, or alternatively M12 and M16 metric threaded rods. This kit consists of: a 300mm duct mounting bracket with 3 x M12 hex head set screws and nuts and 2 x straight brackets. The mounting bracket grips the 300mm ducting and bolts to the supporting brackets. The straight bracket/s are secured onto either 1/2” or 5/8” UNC threaded rods, or alternatively M12 and M16 metric threaded rods; which are supplied with kits. These kits are both available separately. Typically, the 1/2” dia UNC threaded rods (alternatively M12 threaded rods) are used for suspended mounting from the ceiling; whilst the 5/8” dia UNC threaded rods (alternatively M16 threaded rods) are used for mounting the duct system above racks.
