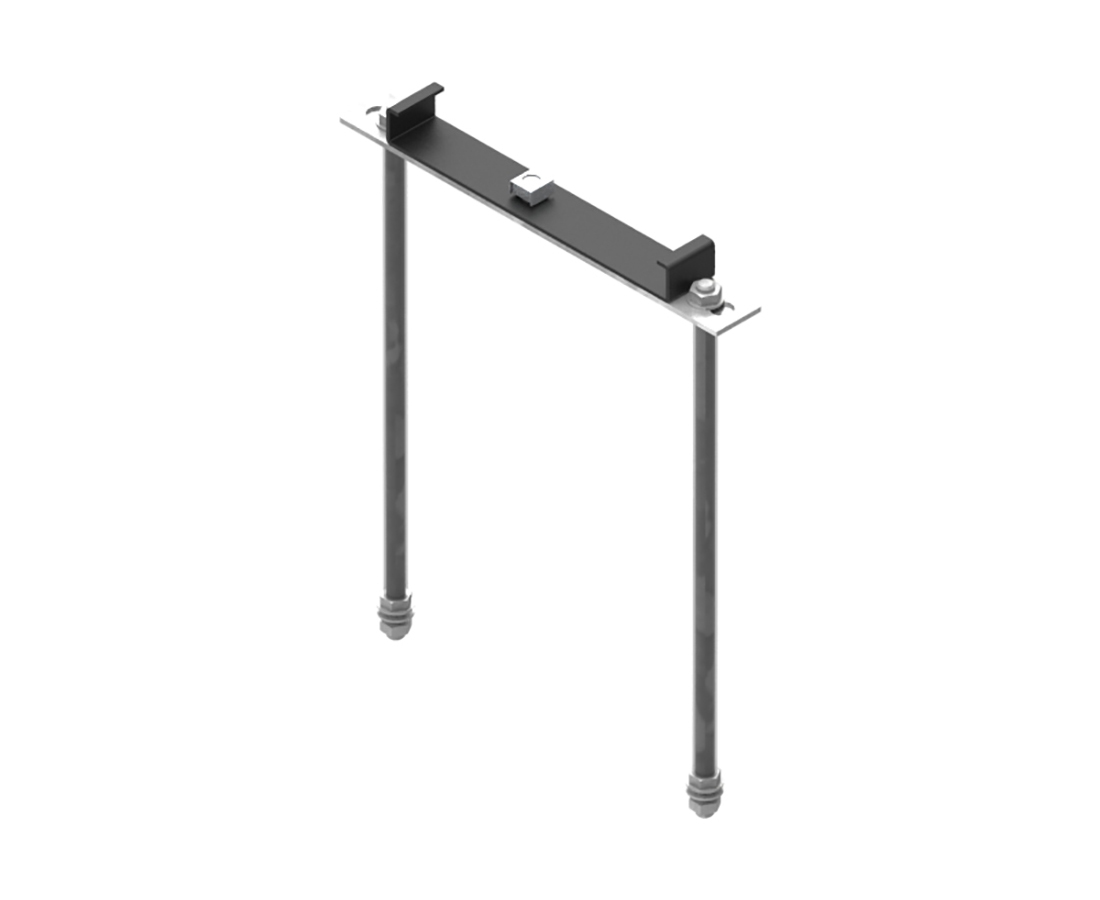

Fiber Raceway Mounting Trapeze Style Kit, 220mm, 12mm Rod
Fiber Raceway Mounting Trapeze Style Kit, 220mm, Includes 12mm Rods
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRMT42 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRMT42 | Metallic | 15.748 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 2.998 lbs |
|---|---|
| Overall Height | 0.787 in (19.990 mm |
| Overall Width | 1.574 in |
| Overall Length | 15.748 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Mild Steel, Nickel Plated |
|---|
Product Notes
| Notes | The suspension mounting bracket kit is used to attach either 220mm (or 100mm) plastic duct to existing steelwork, from above. It consists of: 2 x M12 threaded rods with a straight bracket and fasteners, which enables fitting of a duct - mounting bracket to the straight bracket. Plastic protection tubes are supplied to prevent entanglement of optical fibre cords during installation; and to protect the threaded rod from damage. |
|---|
History
| Update and Revision | Revision Number: 0.72 Revision Date: 03-28-2024 |
|---|
