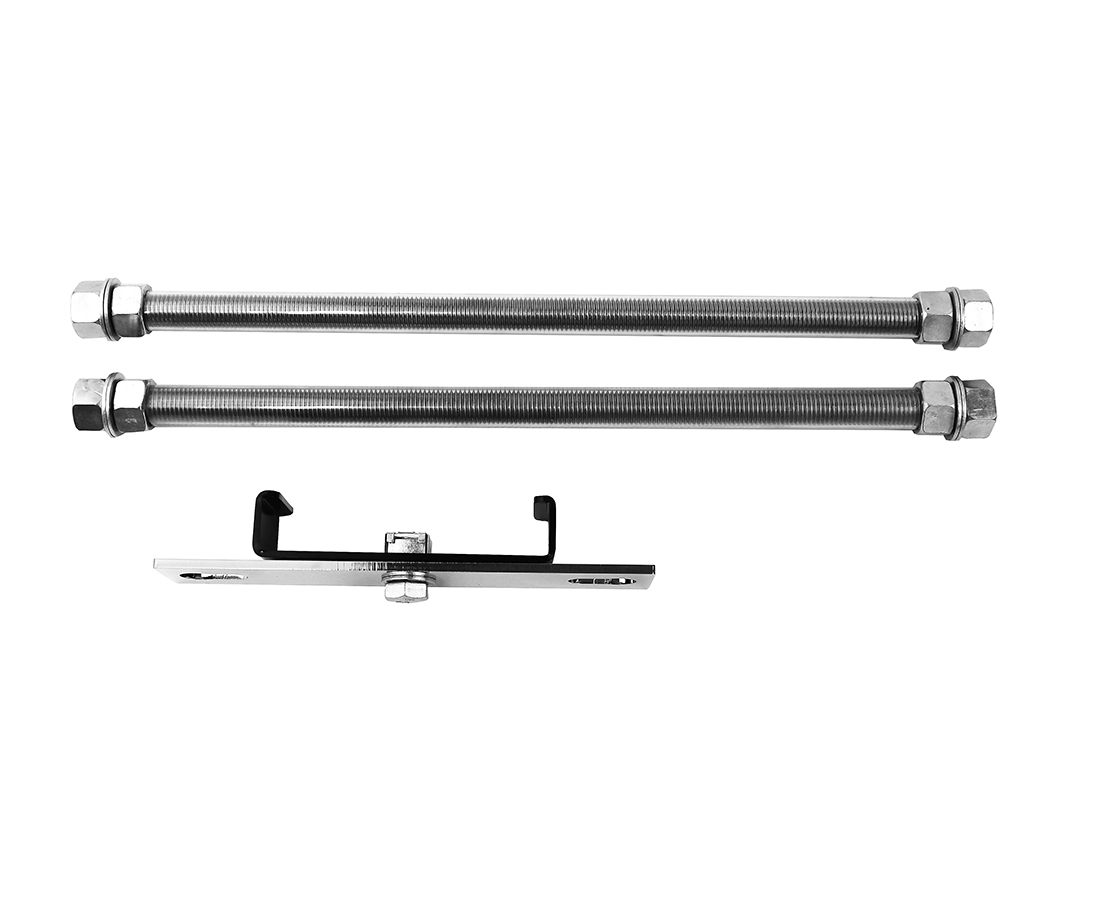

Fiber Raceway Mounting Trapeze Style Kit, 100mm, 16mm Rod
Fiber Raceway Mounting Trapeze Style Kit, 100mm, Includes 16mm Rods
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRMT36 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRMT36 | Metallic | 15.748 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 4.188 lbs |
|---|---|
| Overall Height | 0.787 in (19.990 mm |
| Overall Width | 1.574 in |
| Overall Length | 15.748 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Mild Steel, Nickel Plated |
|---|
Product Notes
| Notes | The suspension mounting bracket kit is used to attach 100mm plastic duct to existing steelwork, from above. It is a straight bracket with 2 x M16 threaded rods and fasteners to enable fitting of a duct - mounting bracket from the building ceiling or overhead steelwork. Plastic protection tubes are supplied to prevent entanglement of optical fibre cords during installation; and to protect the threaded rod from damage. |
|---|
History
| Update and Revision | Revision Number: 0.72 Revision Date: 03-28-2024 |
|---|
