Fiber Raceway Mounting Stand Off Kit, 100mm
Fiber Raceway Mounting Stand Off Kit, Suits 100mm Duct
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRMS2 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRMS2 | Metallic | 4.960 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 1.322 lbs |
|---|---|
| Overall Height | 1.181 in (29.997 mm |
| Overall Width | 1.574 in |
| Overall Length | 4.960 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Mild steel |
|---|
Product Notes

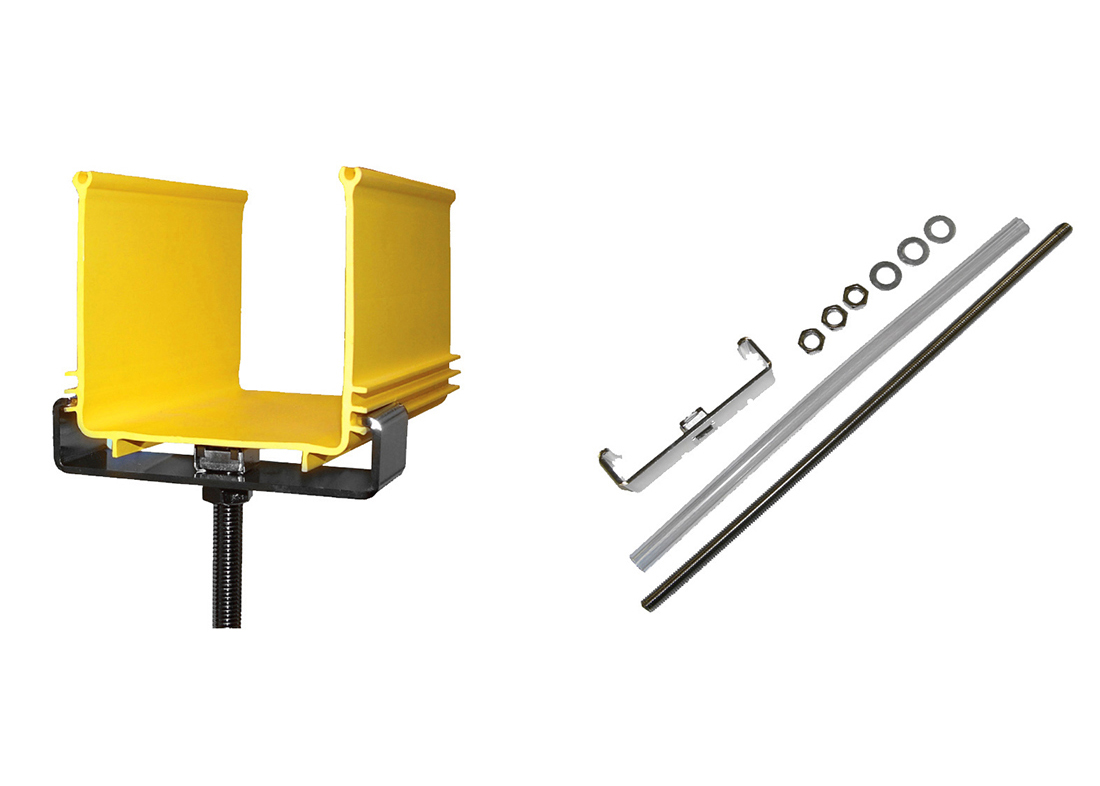

| Notes | The mounting bracket provides an adjustable mounting mechanism for the 220 mm plastic ducting system. It is basically an M12 threaded metal rod and support bracket that connects straight duct to existing building steel - work. A plastic protection tube is included to prevent optical fibres catching in the rod thread. |
|---|
History
| Update and Revision | Revision Number: 0.72 Revision Date: 03-28-2024 |
|---|
