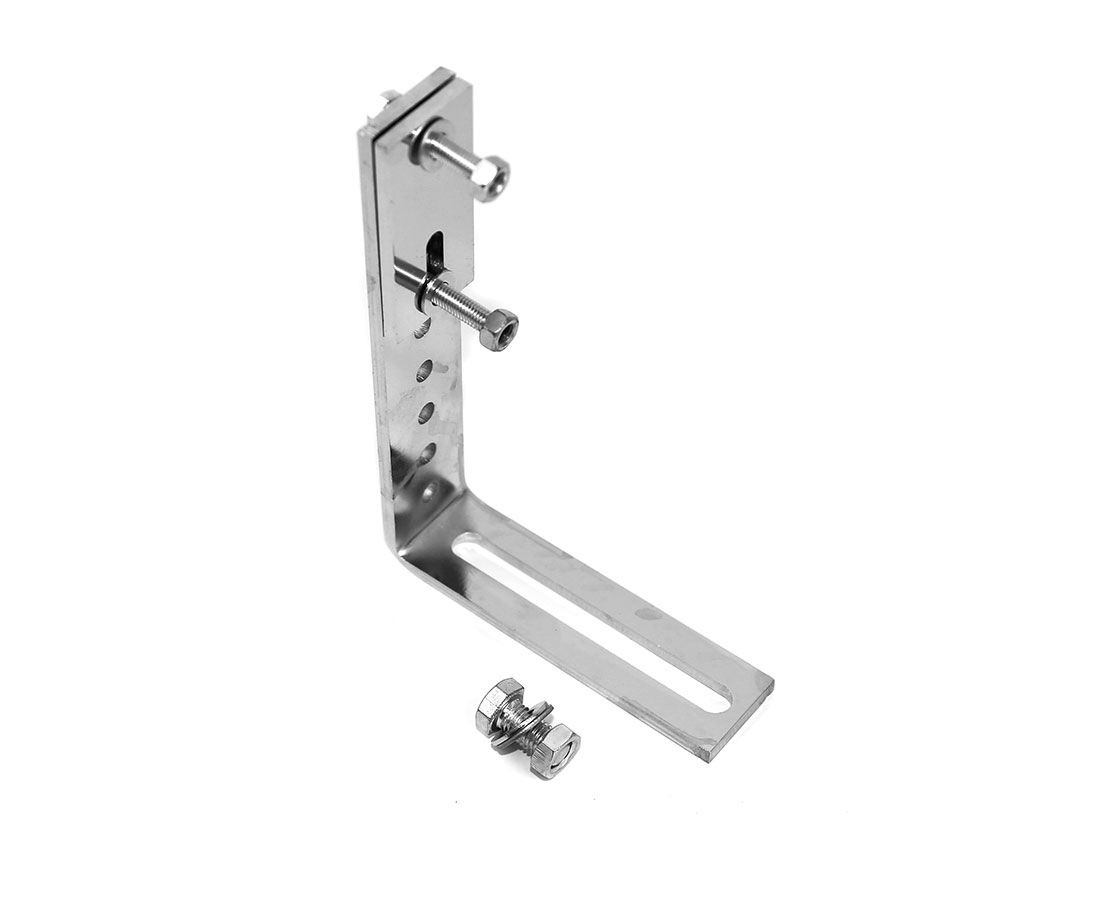

Fiber Raceway Mounting Ladder Rack Kit, 220mm
Fiber Raceway Mounting Ladder Rack Kit, Suits 220mm Duct
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRML4K is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRML4K | Metallic | 8.267 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 1.212 lbs |
|---|---|
| Overall Height | 6.299 in (159.995 mm |
| Overall Width | 1.574 in |
| Overall Length | 8.267 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Mild steel, Nickel Plated finish |
|---|
Product Notes
| Notes | This clamp is a means of attaching either 100 or 220mm duct systems to 1 1⁄2 and 2 inch ladder racks. It is attached to the rack by a plate and two screws, which clamp the rack between the plate and clamp body. Multiple holes provide vertical adjustment in 21mm increments. Use in conjunction with 220 and 100mm duct mounting brackets. |
|---|
History
| Update and Revision | Revision Number: 0.72 Revision Date: 03-28-2024 |
|---|
