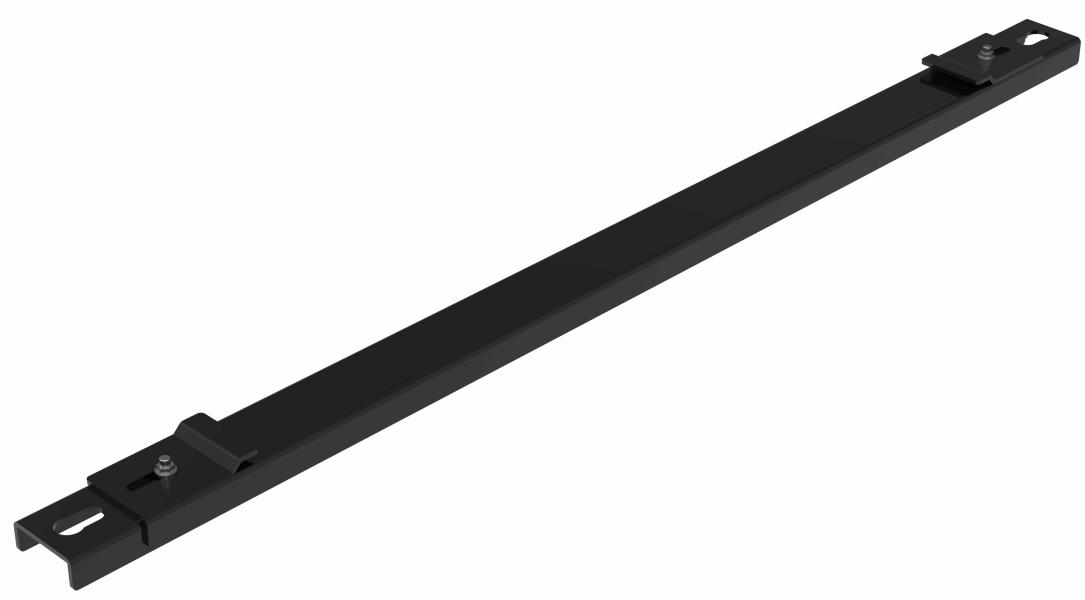

MOUNTING BRACKET ASSEMBLY FOR 600 mm DUCT
Fiber Raceway Duct Mounting Bracket and Bolt, Suits 600mm Duct
- Availability
- EMEA | Americas
- Status
- Active
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 4.078 lbs |
|---|---|
| Overall Height | 1.181 in |
| Overall Width | 2.165 in |
| Overall Length | 34.646 in |
Inner Jacket
| Inner Jacket | Inner Jacket |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Mild Steel, Nickel Plated |
|---|
Product Notes
| Notes | This assembly consists of a standard 600mm x 100mm duct support bracket, with two adjustable side sliders, that secure the sides of the duct. Clamping screws are supplied. Also provided are mounting holes for Ø 1⁄2” or Ø 5/8” threaded rod/s, to support the mounting brackets. |
|---|
History
| Update and Revision | Revision Number: 0.2 Revision Date: 11-05-2025 |
|---|
