Fiber Raceway Mounting C Type, 220mm
Fiber Raceway Mounting Duct "C" Type, Suits 220mm Duct
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRMC4 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRMC4 | Metallic | 9.448 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 0.881 lbs |
|---|---|
| Overall Height | 1.181 in (29.997 mm |
| Overall Width | 1.574 in |
| Overall Length | 9.448 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Mild steel, clear plastic and threaded steel rod |
|---|
Product Notes

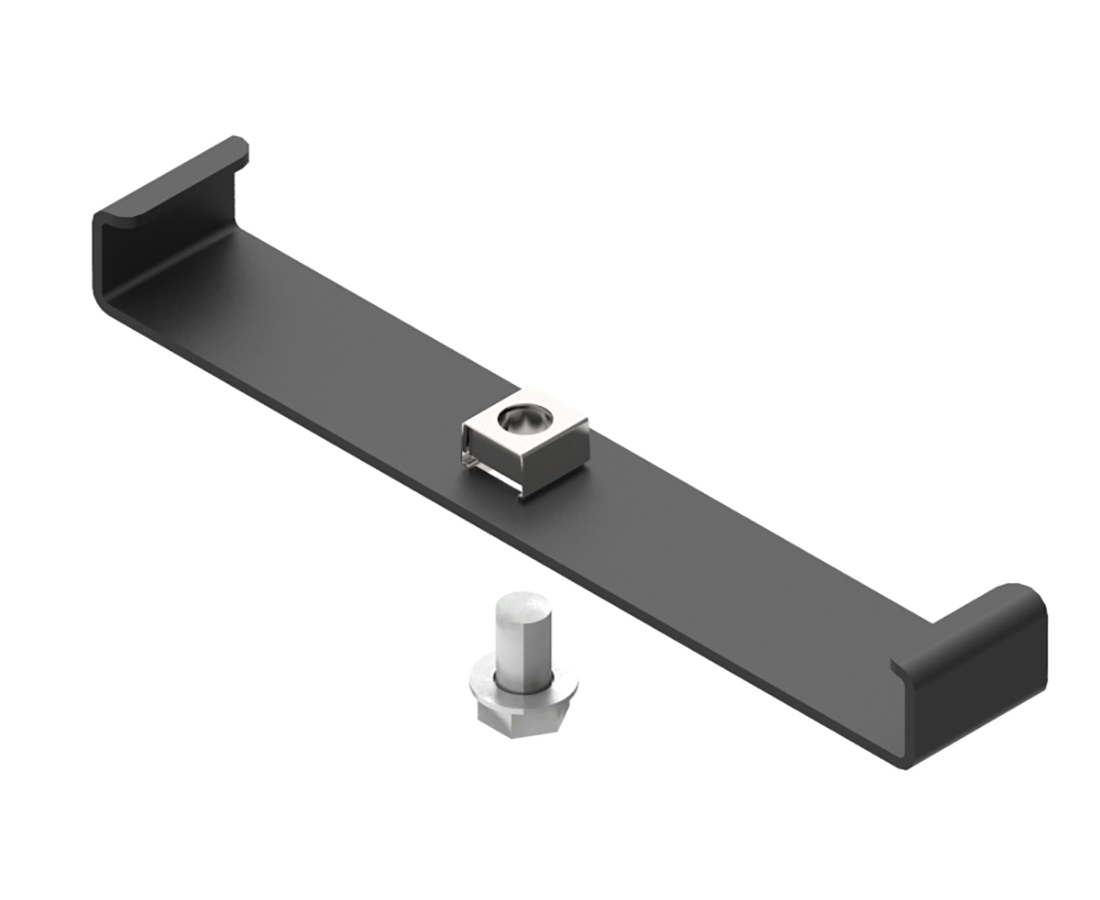

| Notes | This assembly consists of a standard 220mm duct support bracket, with a captive M12 nut and bolt set; that enables the duct support bracket to be bolted to any other mounting bracket. This assembly is used where the duct is directly mounted to flat brackets with 13mm (1/2 inch clearance) dia holes. |
|---|
History
| Update and Revision | Revision Number: 0.202 Revision Date: 03-28-2024 |
|---|
