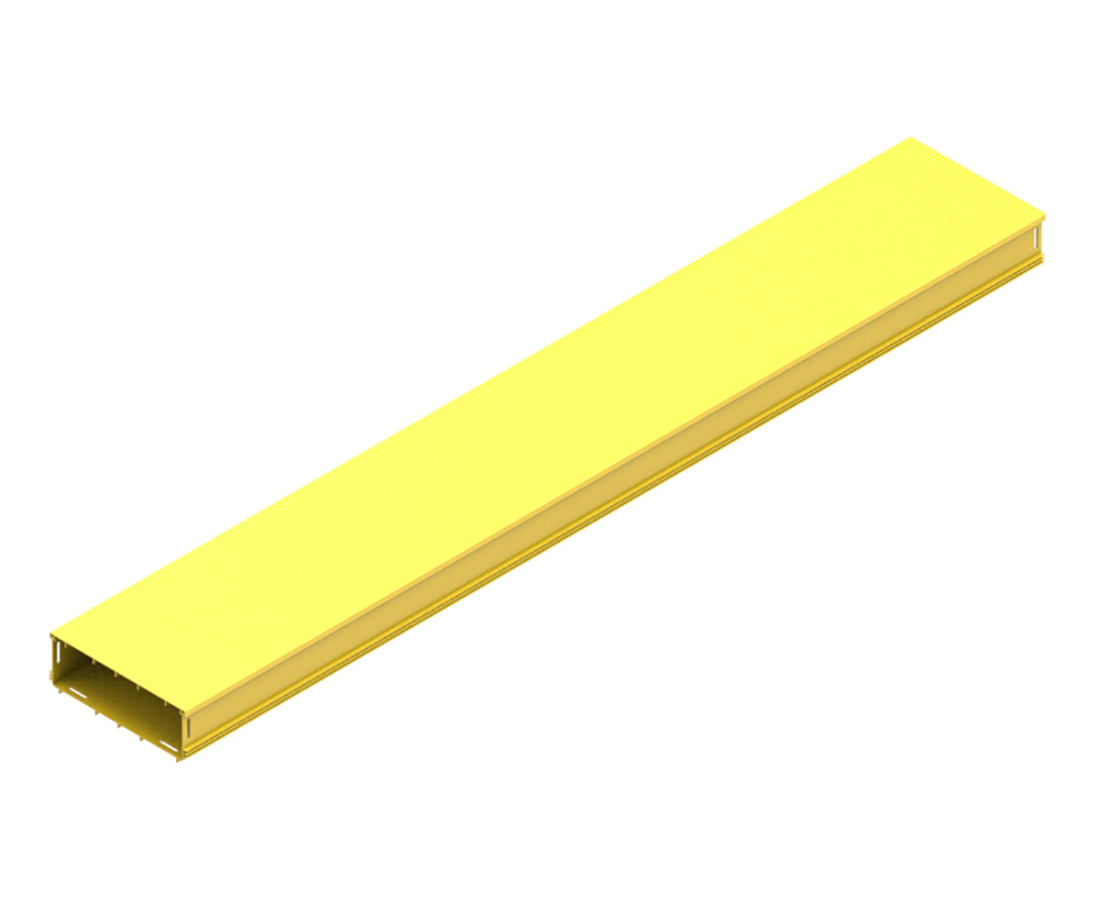

Fiber Raceway Slotted Duct 4x12 with Lid
Fiber Raceway Duct & Snap On Lid, 4x12, 2 meters long
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRD5TYL is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRD5TYL | Yellow | 78.740 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 13.646 lbs |
|---|---|
| Overall Height | 4.527 in (114.986 mm |
| Overall Width | 12.283 in |
| Overall Length | 78.740 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Fire retardant plastic, Halogen free, UL94-VO rated |
|---|
Product Notes
| Notes | It is recommended that a duct be filled to about 50% of its depth with optical fibre cords. Thus, a 300 mm wide duct typically can carry about 5850 of 1.6mm dia optical fibre cords or about 1650 of 3mm dia. optical fibre cords, without causing excessive stress on them. The duct comes complete with a lid and is made of tough Noryl plastic with a non - halogen fire retardent. The cover does not have hinges; it clips onto the duct. The duct connects to other 300mm duct sections and various bends, adapters etc., using the slotless joiner. A duct mounting kit is available separately. |
|---|
History
| Update and Revision | Revision Number: 0.184 Revision Date: 03-28-2024 |
|---|
