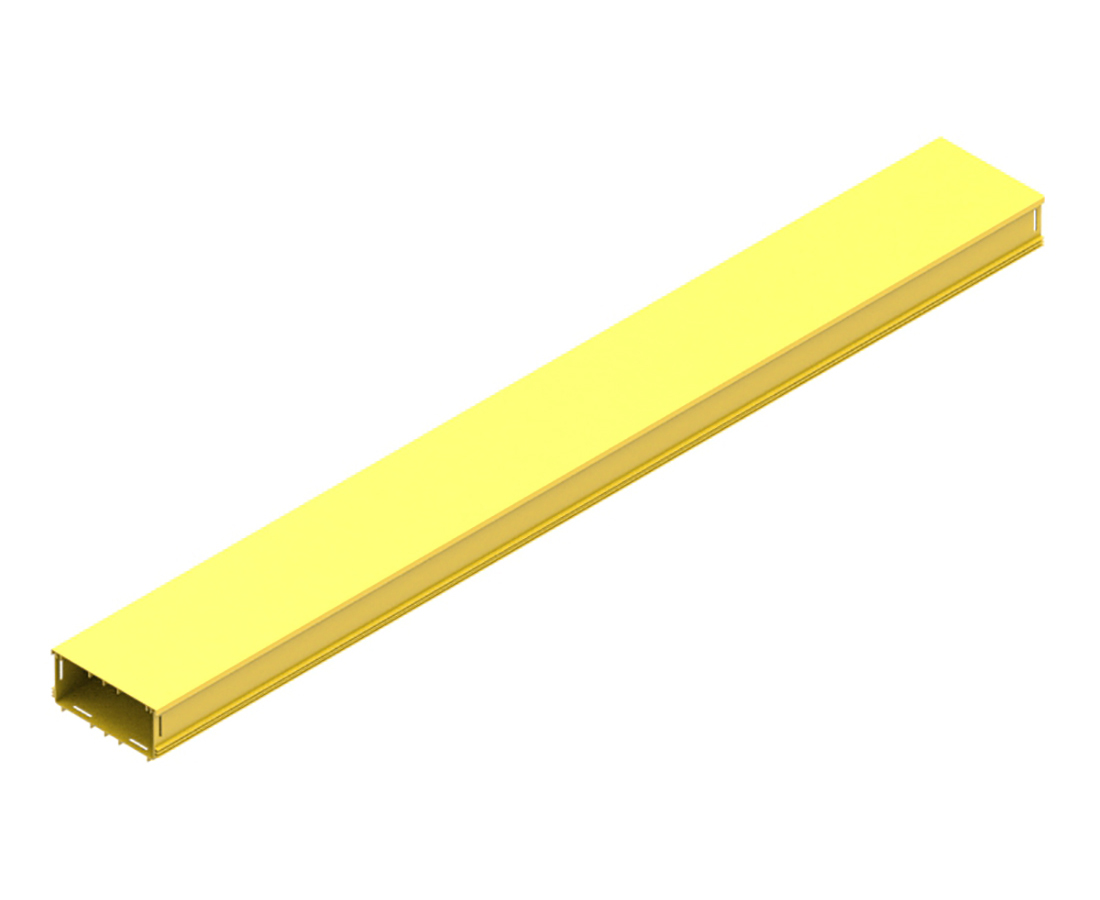

Fiber Raceway Slotted Duct 4x8 with Lid
Fiber Raceway Duct & Snap On Lid, 4x8, 2 meters long
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRD4TYL is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRD4TYL | Yellow | 78.740 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 10.78 lbs |
|---|---|
| Overall Height | 4.527 in (114.986 mm |
| Overall Width | 9.251 in |
| Overall Length | 78.740 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Fire retardant plastic, Halogen free, UL94-VO rated |
|---|
Product Notes
| Notes | The 220 mm duct lid is a snap fit onto 220mm straight duct. The lid is quickly and easily fitted and removed from 220mm straight duct, when required. Both the lid and duct are made of tough Noryl plastic with a non - halogen fire retardent. The duct connects to other duct sections and various bends, adapters, etc, using either: a standard joiner or a slotless joiner which are available separately. A 220mm duct carries up to 800 x 3mm dia optical fibre cords to a depth of 50mm, without causing excessive crushing or stress on them. This is the maximum recommended number of optical fibre cords for 220mm duct. |
|---|
History
| Update and Revision | Revision Number: 0.202 Revision Date: 03-28-2024 |
|---|
