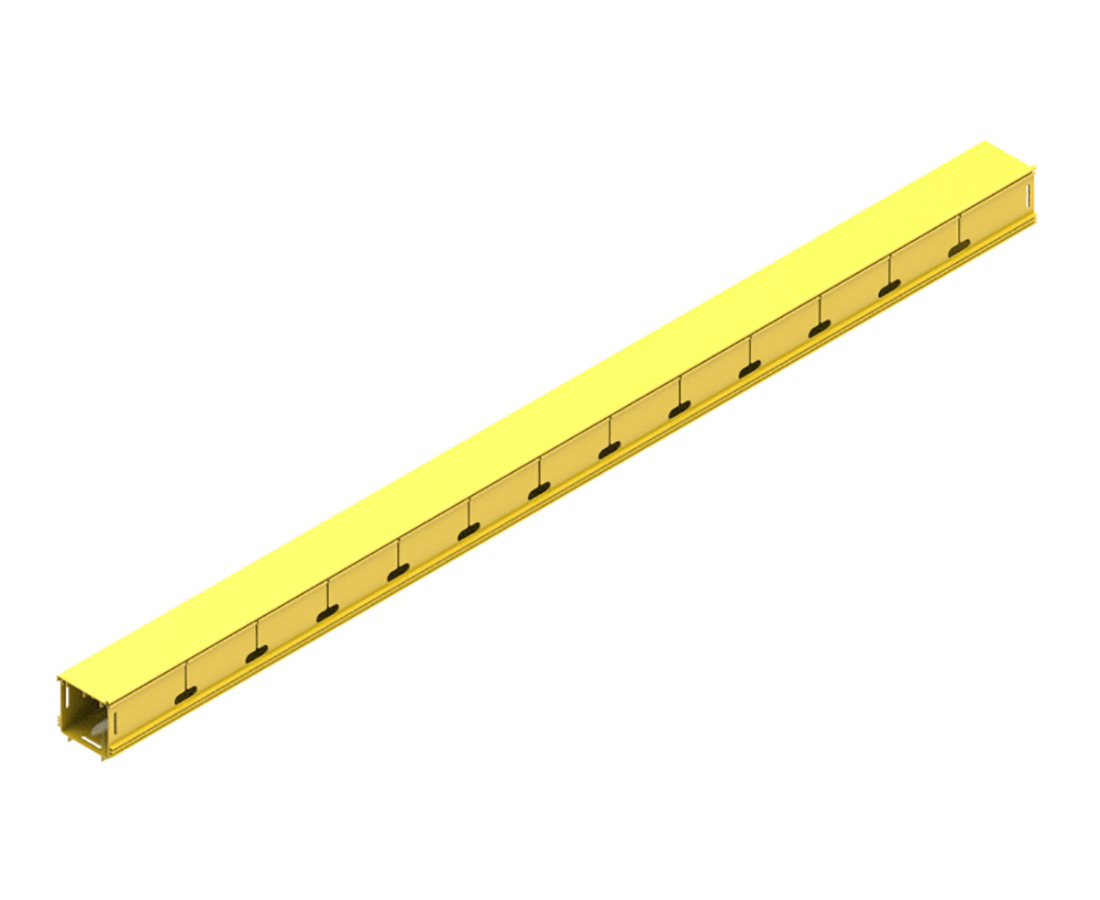

Fiber Raceway Slotted Duct 4x4 with Hinged Lid
Fiber Raceway Slotted Duct & Hinged Lid, 4x4, 2 meters long
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRD3TYH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRD3TYH | Yellow | 78.740 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 7.275 lbs |
|---|---|
| Overall Height | 4.133 in (104.978 mm |
| Overall Width | 4.724 in |
| Overall Length | 78.740 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Fire retardant plastic, Halogen free, UL94-VO rated |
|---|
Product Notes
| Notes | This 100 mm duct is similar to standard duct except that it is slotted to allow optical fibre cord feed off at 150mm intervals and external vision of the duct’s contents. It carries up to 400 pigtails or patch cords (3mm dia) to a depth of 50 mm, without excess stress on them, during removal processes. The duct comes complete with a lid and is made of tough Noryl plastic with a non halogen, fire retardant. It connects to other 100mm duct sections and various bends adapters etc., using either: a standard joiner or a slotless joiner. It is recommended that each outlet slot be fitted with an outlet radius guide, that will guarantee the outgoing radius for every housed optical fibre cord. These are available separately. |
|---|
History
| Update and Revision | Revision Number: 0.72 Revision Date: 03-28-2024 |
|---|
