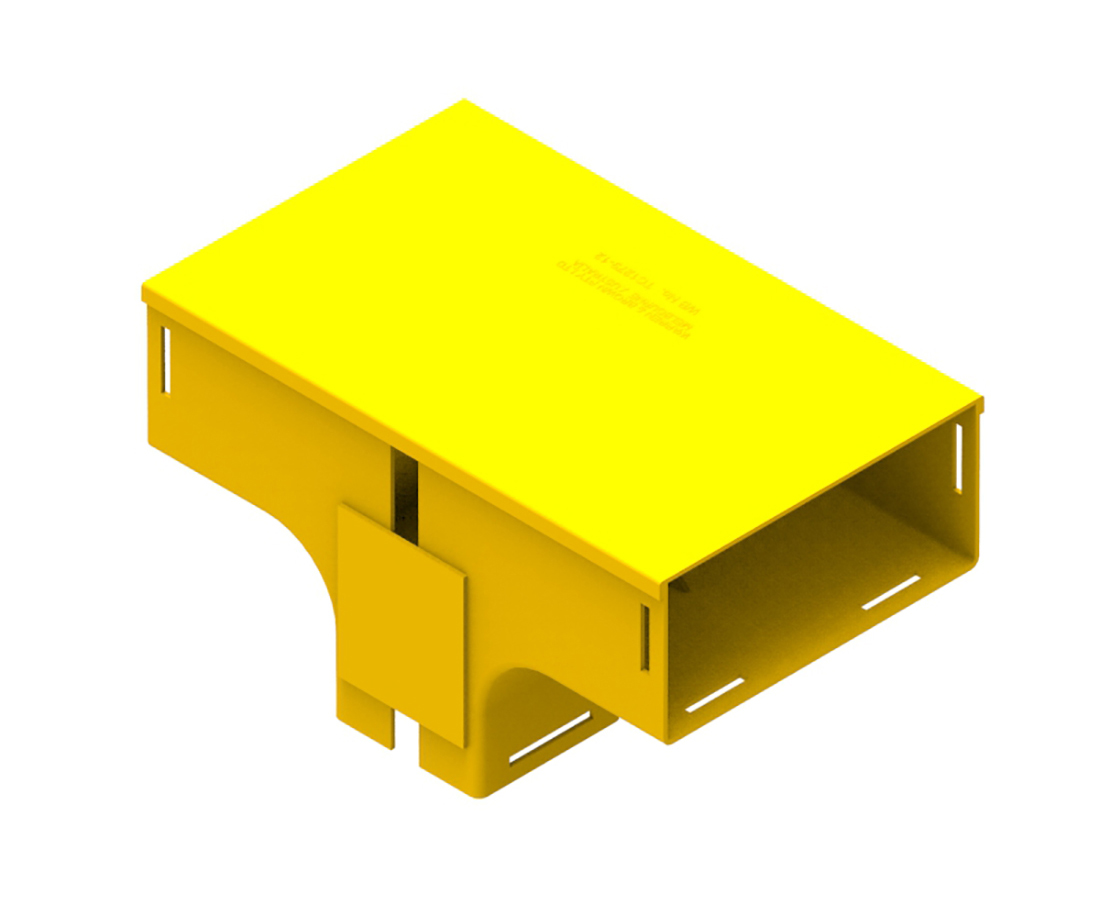

Fiber Raceway Vertical Tee, 4x8, Retrofit, Lid
Fiber Raceway Vertical Tee, 4x8, 220mm x 100mm Drop Off, Retrofit, Lid, Yellow
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRCV4YLR is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRCV4YLR | Yellow | 9.133 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 2.127 lbs |
|---|---|
| Overall Height | 8.070 in (204.978 mm |
| Overall Width | 14.566 in |
| Overall Length | 9.133 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Fire retardant plastic, Halogen free, UL94-VO rated |
|---|
Product Notes
| Notes | The entry suite is basically a 100mm vertical drop off point in a 220mm horizontal duct system. This is usually installed where a large number of optical fibre cords are to be dropped off below. eg. in optical fibre distribution frames. It provides free flow for the ongoing fibres and strain relief for those exiting down the 100mm vertical section. There are two 220mm horizontal outlets, which use standard joiners or a slotless joiner and a 100mm vertical outlet that uses a standard joiner. Alternatively, slotless joiners can be used. These are available separately. This part allows easy retrofitting of optical fibre cords into an existing assembly. |
|---|
History
| Update and Revision | Revision Number: 0.72 Revision Date: 03-28-2024 |
|---|
