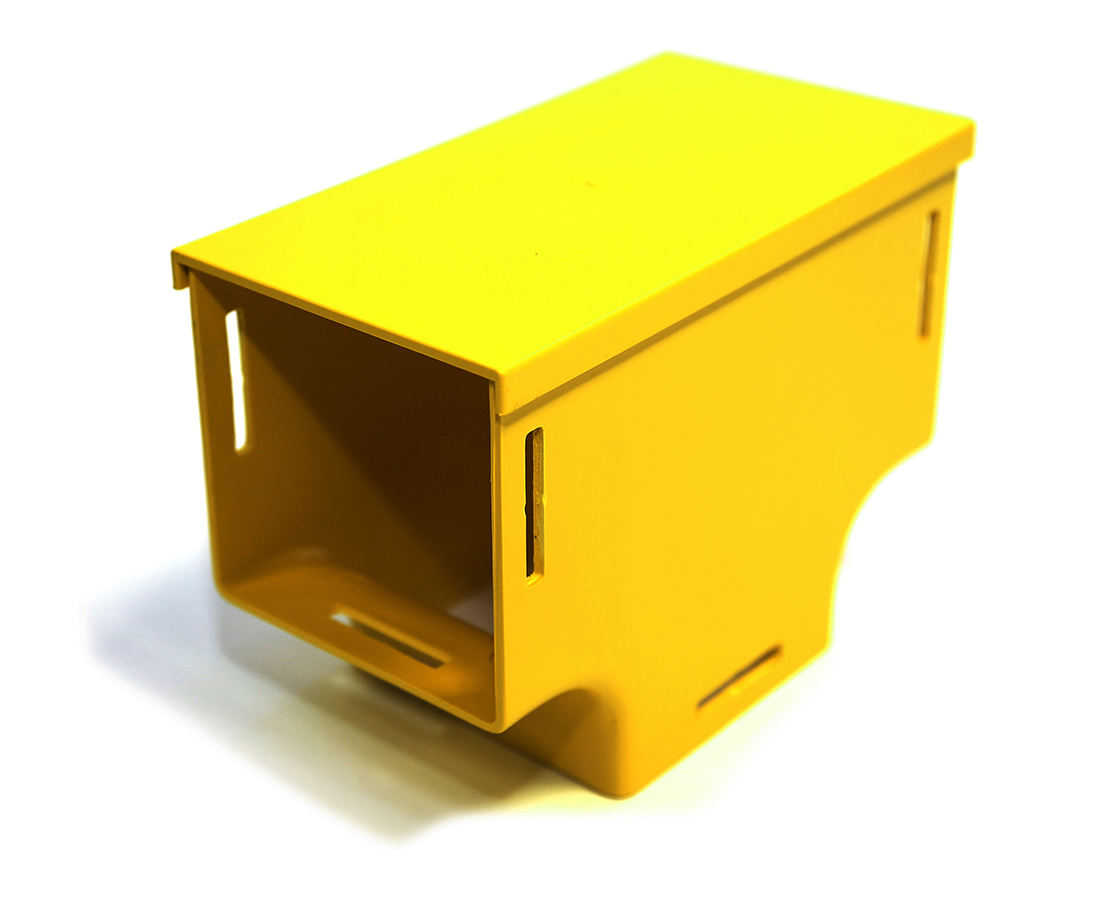

Fiber Raceway Vertical Tee, 4x4, Lid
Fiber Raceway Vertical Tee, 4x4, 100mm x 100mm Drop Off, Lid, Yellow
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRCV3YLN is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRCV3YLN | Yellow | 4.409 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 0.716 lbs |
|---|---|
| Overall Height | 5.905 in (149.987 mm |
| Overall Width | 7.952 in |
| Overall Length | 4.409 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Fire retardant plastic, Halogen free, UL94‐VO rated |
|---|
Product Notes
| Notes | The entry suite is basically a 100mm vertical drop off point in a 100mm horizontal duct system. This is usually installed where a large number of optical fibre cords are to be dropped off below. eg. in optical fibre distribution frames. It provides free flow for the ongoing fibres and strain relief for those exiting down the 100mm vertical section. There are two 100mm horizontal outlets, and a 100mm vertical outlet which use either: standard joiners or a slotless joiner. These are available separately. |
|---|
History
| Update and Revision | Revision Number: 0.72 Revision Date: 03-28-2024 |
|---|
