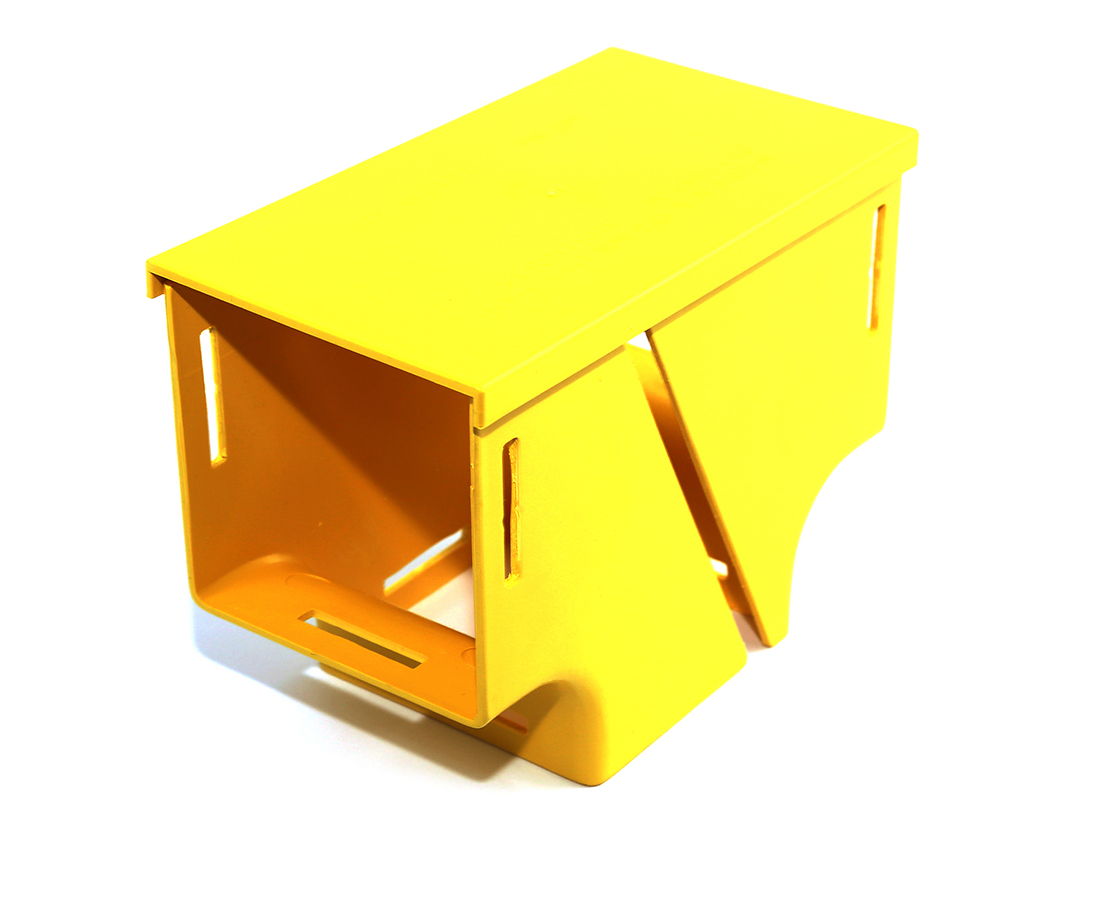

Fiber Raceway Vertical Tee 2x2, Retrofit, Lid
Fiber Raceway Vertical Tee 2x2, 50mm x 50mm Drop Off, Retrofit, Lid, Yellow
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRCV1YLR is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRCV1YLR | Yellow | 5.039 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 0.121 lbs |
|---|---|
| Overall Height | 2.086 in (52.984 mm |
| Overall Width | 3.622 in |
| Overall Length | 5.039 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Fire retardant plastic, Halogen free, UL94-VO rated |
|---|
Product Notes
| Notes | This product provides a vertical tee connection, with any 50mm straight ducting. It is used to feed optical fibre cords to a level below the existing level, to either a rack or other ducting. It is slotted to allow retro-fitting of optical fibre cords without the need for removal of the duct system parts. It requires a standard joiner, at each interface, which provides a smooth and strong joint. |
|---|
History
| Update and Revision | Revision Number: 0.72 Revision Date: 03-28-2024 |
|---|
