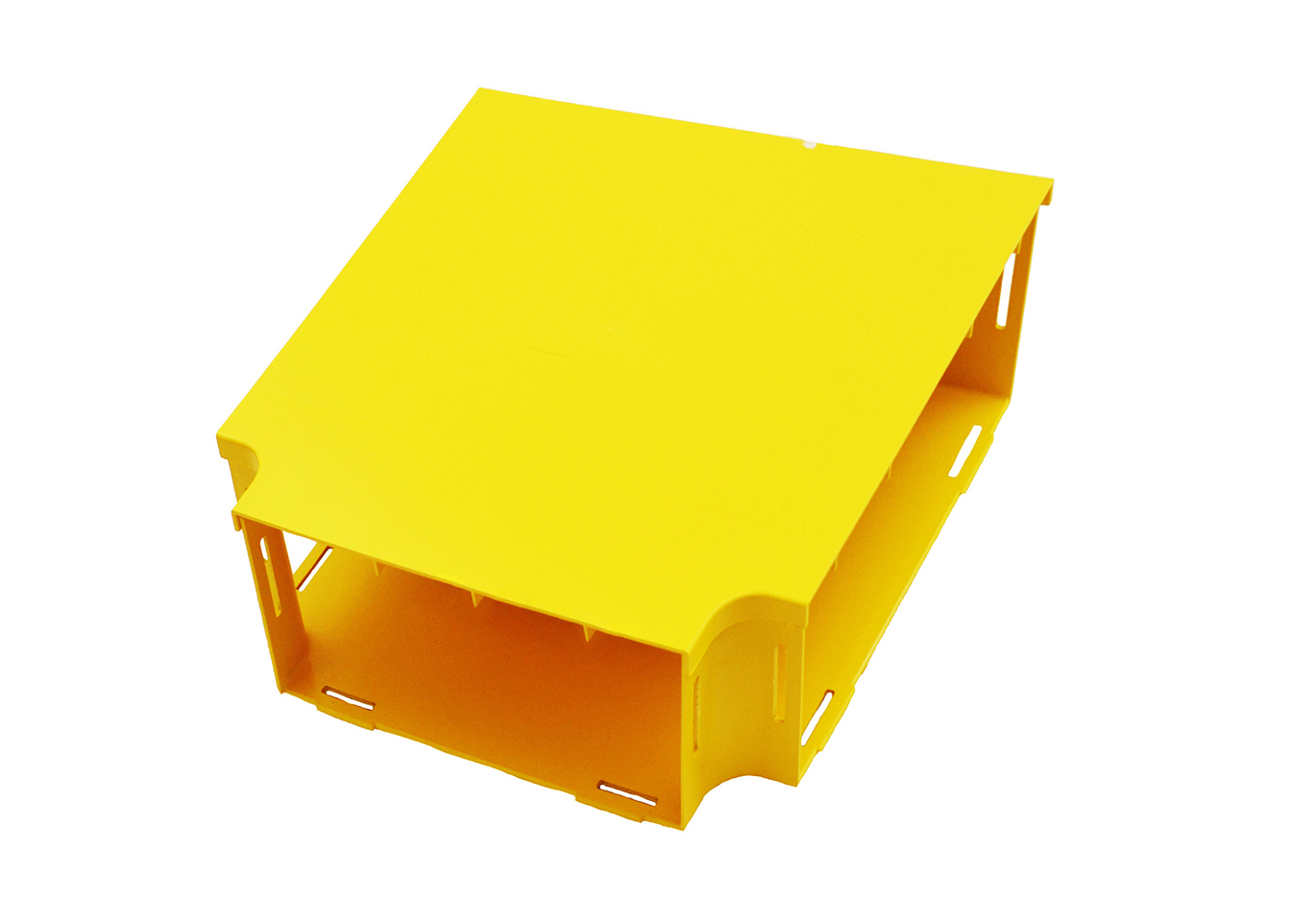

Fiber Raceway Tee, 8x12, Lid
Fiber Raceway Tee, 8x12, with Lid, Yellow
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRCT7YL4 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRCT7YL4 | Yellow | 14.055 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 3.439 lbs |
|---|---|
| Overall Height | 4.606 in (116.992 mm |
| Overall Width | 12.716 in |
| Overall Length | 14.055 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Fire retardant plastic, Halogen free, UL94-VO rated |
|---|
Product Notes
| Notes | This tee is used to provide a 220mm tee intersection with standard 300mm straight ducting. Also needed are joiners for 300mm x 100mm duct; either: standard joiners or slotless joiners; and joiners for 220mm x 100mm duct; either: standard joiners or slotless joiners are available separately. All the joiners for the duct connections provide a smooth and strong joint, with mating items. |
|---|
History
| Update and Revision | Revision Number: 0.72 Revision Date: 03-28-2024 |
|---|
