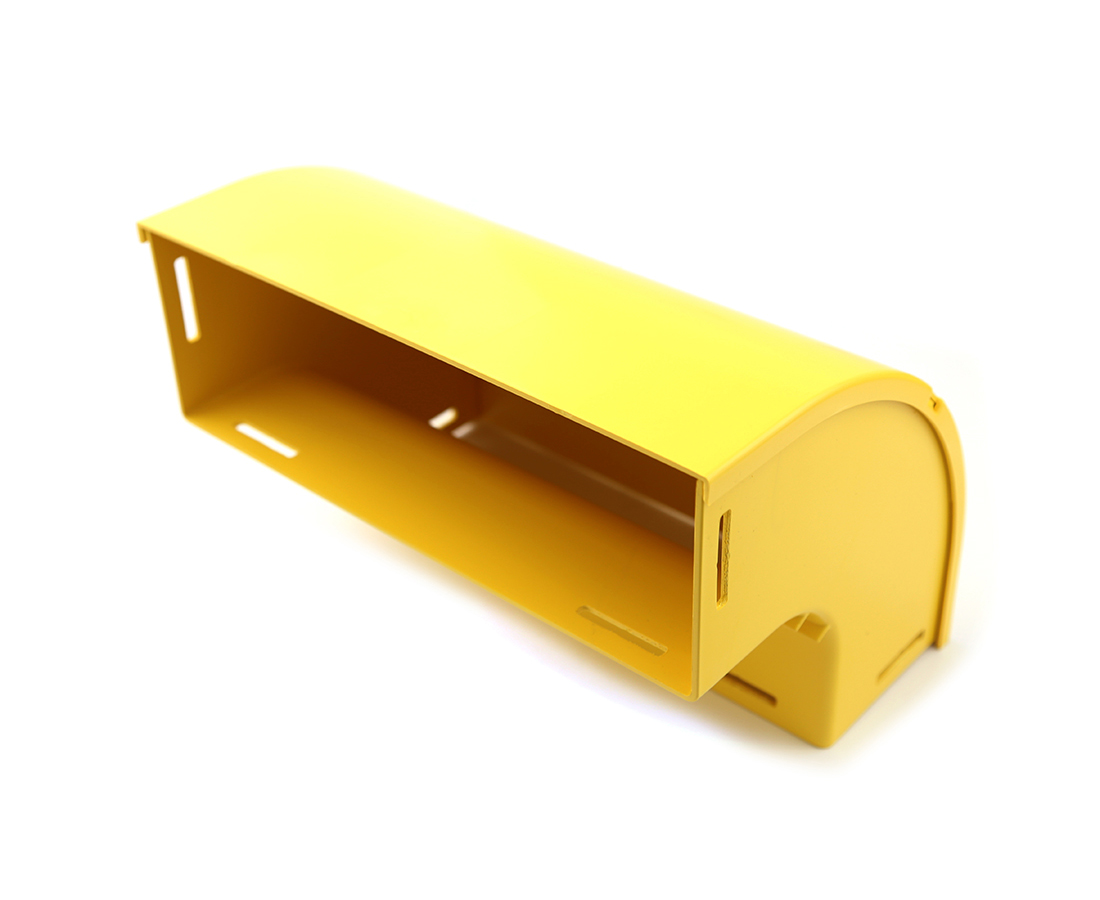

Fiber Raceway Elbow, 4x12, 90 Degree Down
Fiber Raceway Elbow, 4x12, 90 Degree Down, without Lid, Yellow
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRCE5YN9D is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRCE5YN9D | Yellow | 12.283 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 1.613 lbs |
|---|---|
| Overall Height | 7.874 in (200.000 mm |
| Overall Width | 7.874 in |
| Overall Length | 12.283 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Fire retardant plastic, Halogen free, UL94-VO rated |
|---|
Product Notes
| Notes | The 90-degree down elbow is a 300mm vertical drop off with an external lid, so that optical fibre cords within the elbow can be accessed. This is usually installed where a duct system has to traverse a vertical riser situation. There are two 300mm outlets, which use slotless joiners which are available separately. The parts are also available separately: Body and Lid. |
|---|
History
| Update and Revision | Revision Number: 0.72 Revision Date: 03-28-2024 |
|---|
