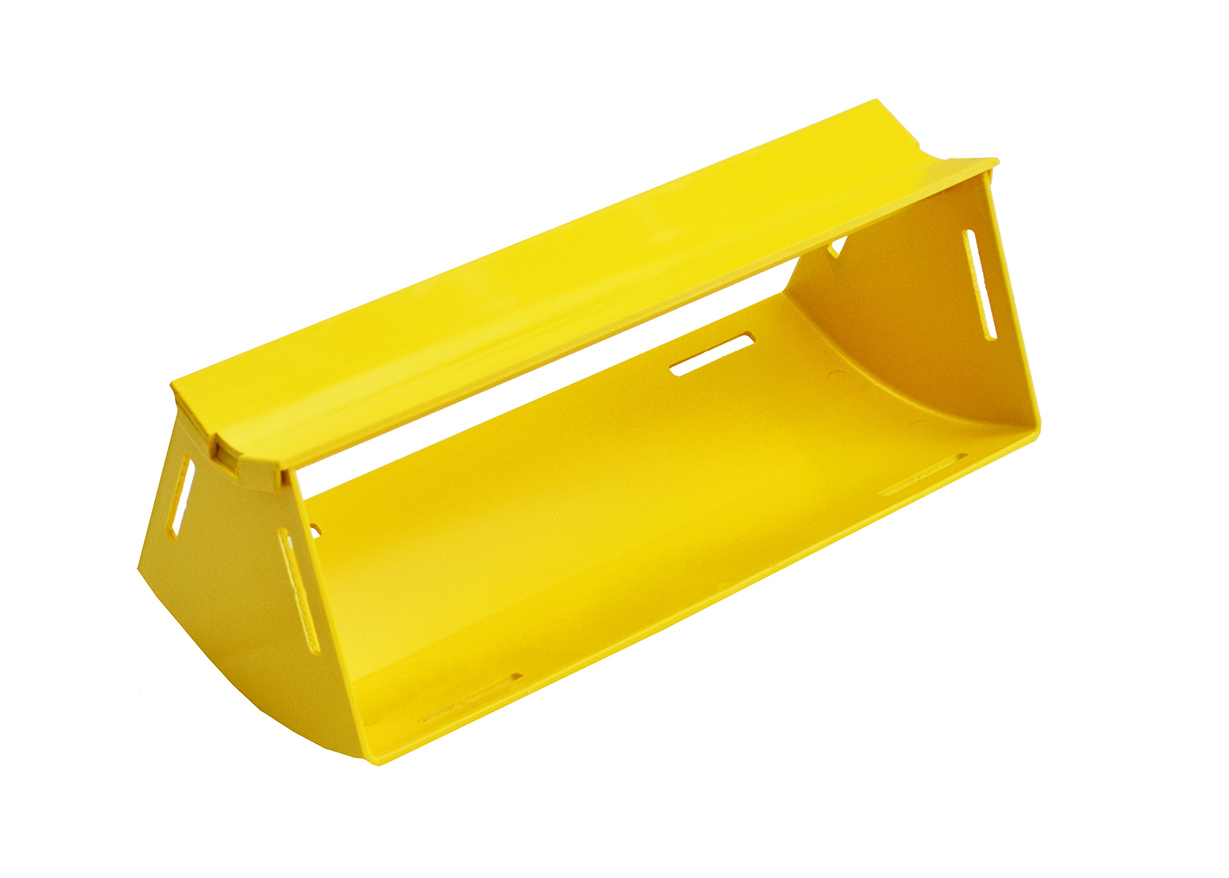

Fiber Raceway Elbow, 4x12, 45 Degree Up
Fiber Raceway Elbow, 4x12, 45 Degree Up, without Lid, Yellow
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRCE5YN4U is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRCE5YN4U | Yellow | 4.881 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 0.661 lbs |
|---|---|
| Overall Height | 5.314 in (134.976 mm |
| Overall Width | 12.283 in |
| Overall Length | 4.881 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Fire retardant plastic, Halogen free, UL94-VO rated |
|---|
Product Notes
| Notes | The 45-degree up elbow is a 300-mm vertical lead off with an internal lid, so that new fibres can be installed within the elbow and existing fibres removed, where necessary. This is usually used where cables may be already installed and either an angular duct feed off or an alignment adjustment is needed. There are two 300-mm outlets, which use slotless joiners which are available separately. |
|---|
History
| Update and Revision | Revision Number: 0.72 Revision Date: 03-28-2024 |
|---|
