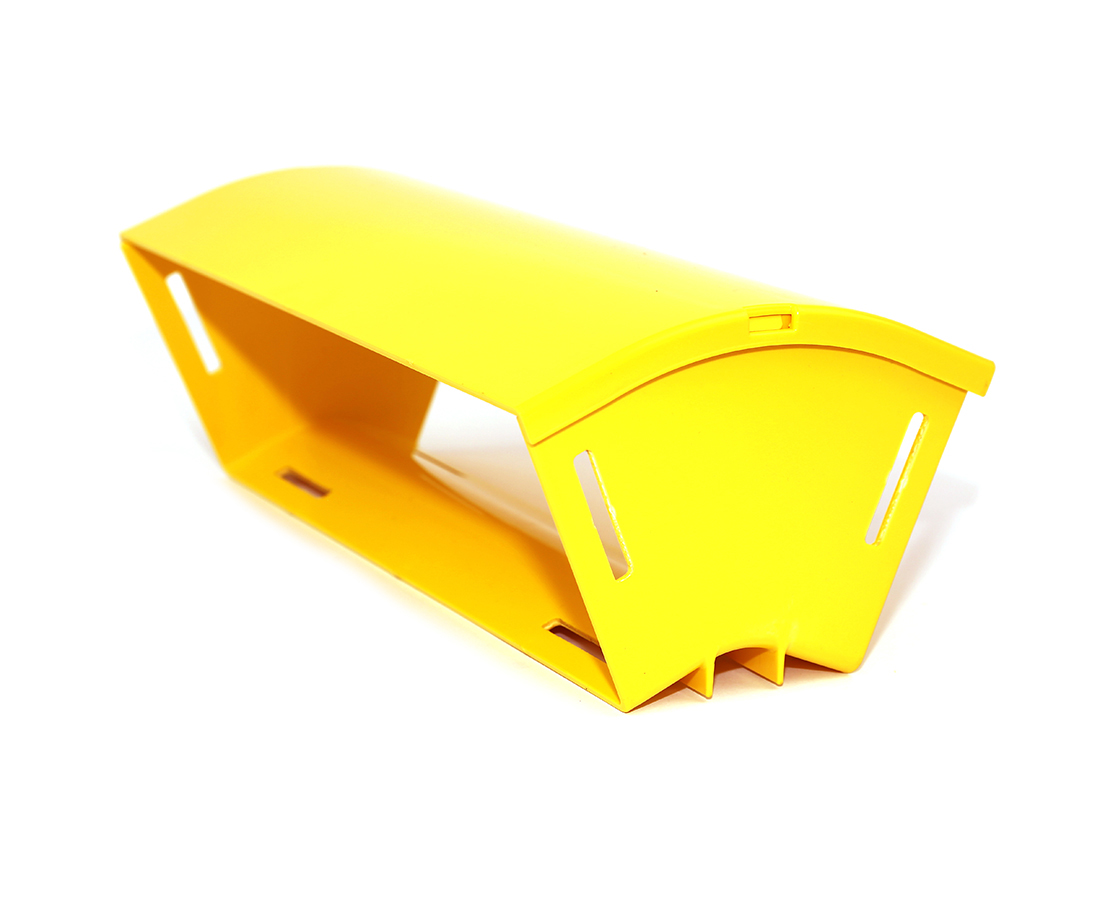

Fiber Raceway Elbow, 4x12, 45 Degree Down
Fiber Raceway Elbow, 4x12, 45 Degree Down, without Lid, Yellow
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRCE5YN4D is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRCE5YN4D | Yellow | 6.377 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 0.793 lbs |
|---|---|
| Overall Height | 4.409 in (111.989 mm |
| Overall Width | 12.283 in |
| Overall Length | 6.377 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Fire retardant plastic, Halogen free, UL94-VO rated |
|---|
Product Notes
| Notes | This 300-mm down elbow is a 45-degree angled lead off with an external lid, so that new fibres can be installed within the elbow and existing fibres removed, where necessary. It is usually used where an angular duct feed off or an alignment adjustment is needed. There are two 300-mm outlets, which use slotless joiners which are available separately. |
|---|
History
| Update and Revision | Revision Number: 0.72 Revision Date: 03-28-2024 |
|---|
