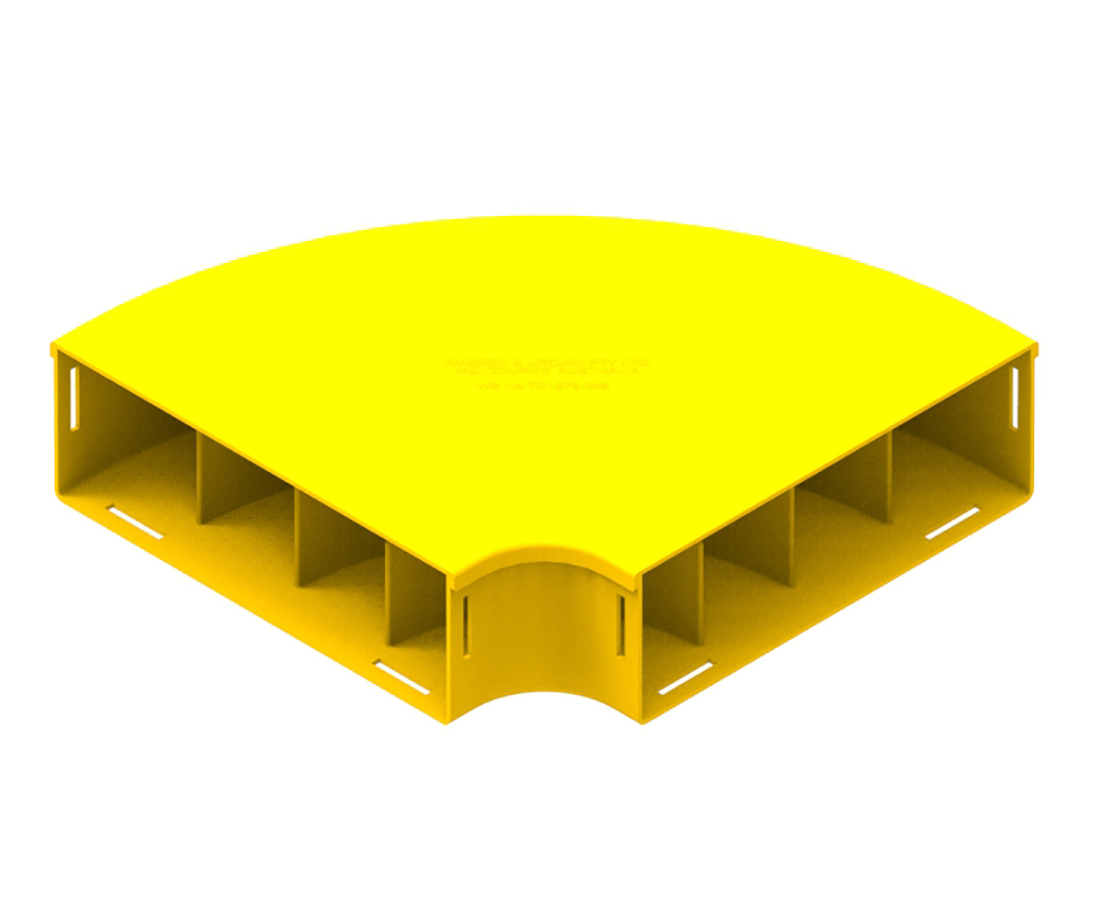

Fiber Raceway Elbow, 4x12, 90 Degree Horizontal, Lid
Fiber Raceway Elbow, 4x12, 90 Degree Horizontal, with Lid, Yellow
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRCE5YL9H is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRCE5YL9H | Yellow | 14.960 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 2.425 lbs |
|---|---|
| Overall Height | 4.527 in (114.986 mm |
| Overall Width | 14.960 in |
| Overall Length | 14.960 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Fire retardant plastic, Halogen free, UL94‐VO rated |
|---|
Product Notes
| Notes | The 300mm elbow is used to provide a horizontal, right angled bend (right or left hand) with standard 300mm ducting. A single cover is supplied. A standard or slotless joiner is used at each interface, to produce a smooth and strong joint. These are available separately. |
|---|
History
| Update and Revision | Revision Number: 0.184 Revision Date: 03-28-2024 |
|---|
