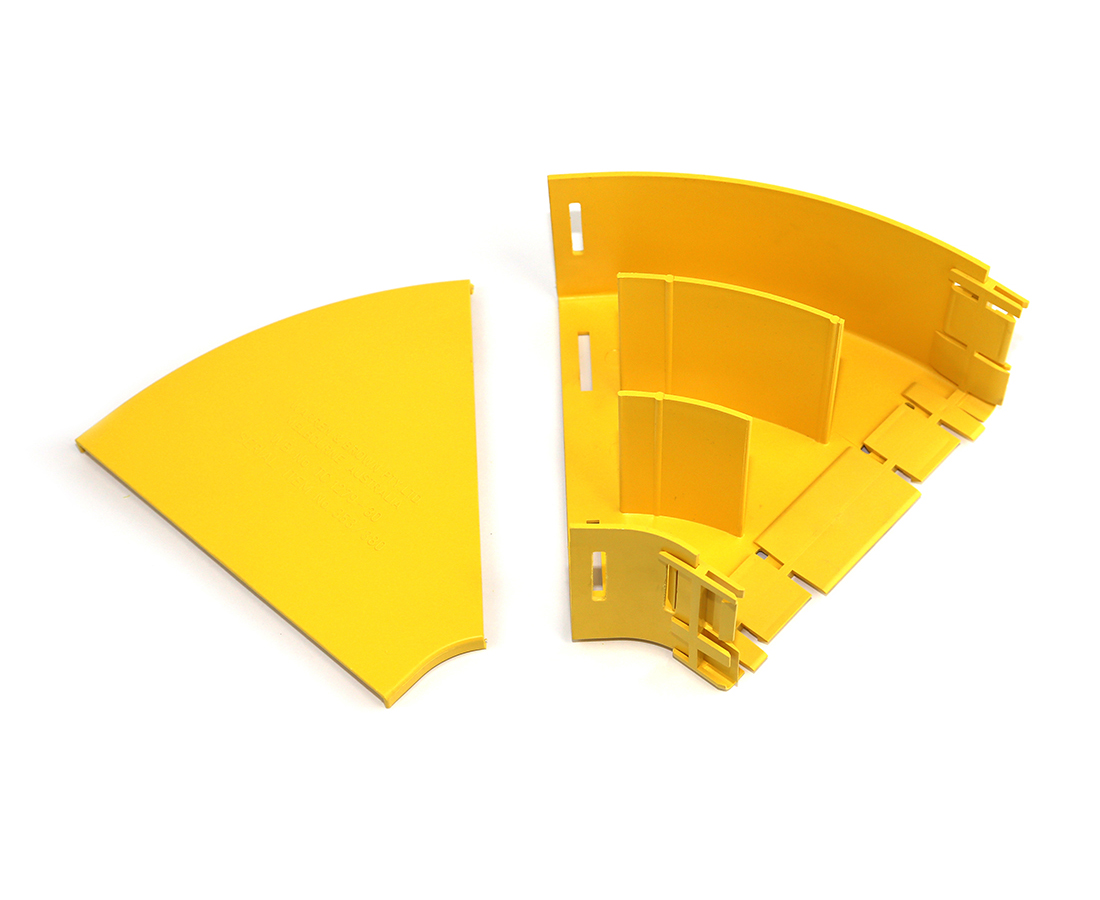

Fiber Raceway Elbow, 4x8, 45 Degree Horizontal
Fiber Raceway Elbow, 4x8, 45 Degree Horizontal, without Lid, Yellow
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRCE4YN4H is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRCE4YN4H | Yellow | 9.448 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 0.952 lbs |
|---|---|
| Overall Height | 4.133 in (104.978 mm |
| Overall Width | 10.236 in |
| Overall Length | 9.448 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Flame retardant plastic |
|---|
Product Notes
| Notes | This elbow provides a method of diverting the 220mm duct system around objects. It can be used with a tee to feed a duct at a 45-degree angle to the main system. The elbow can also be used in pairs to align ducts and other components with an offset. There are two 220-mm outlets. One is equipped with a glued-in, modified joiner. (The special joiner provides a smooth internal curve for optical fibre cords.) The other side uses either a: standard joiner or a slotless joiner that are available separately. |
|---|
History
| Update and Revision | Revision Number: 0.72 Revision Date: 03-28-2024 |
|---|
