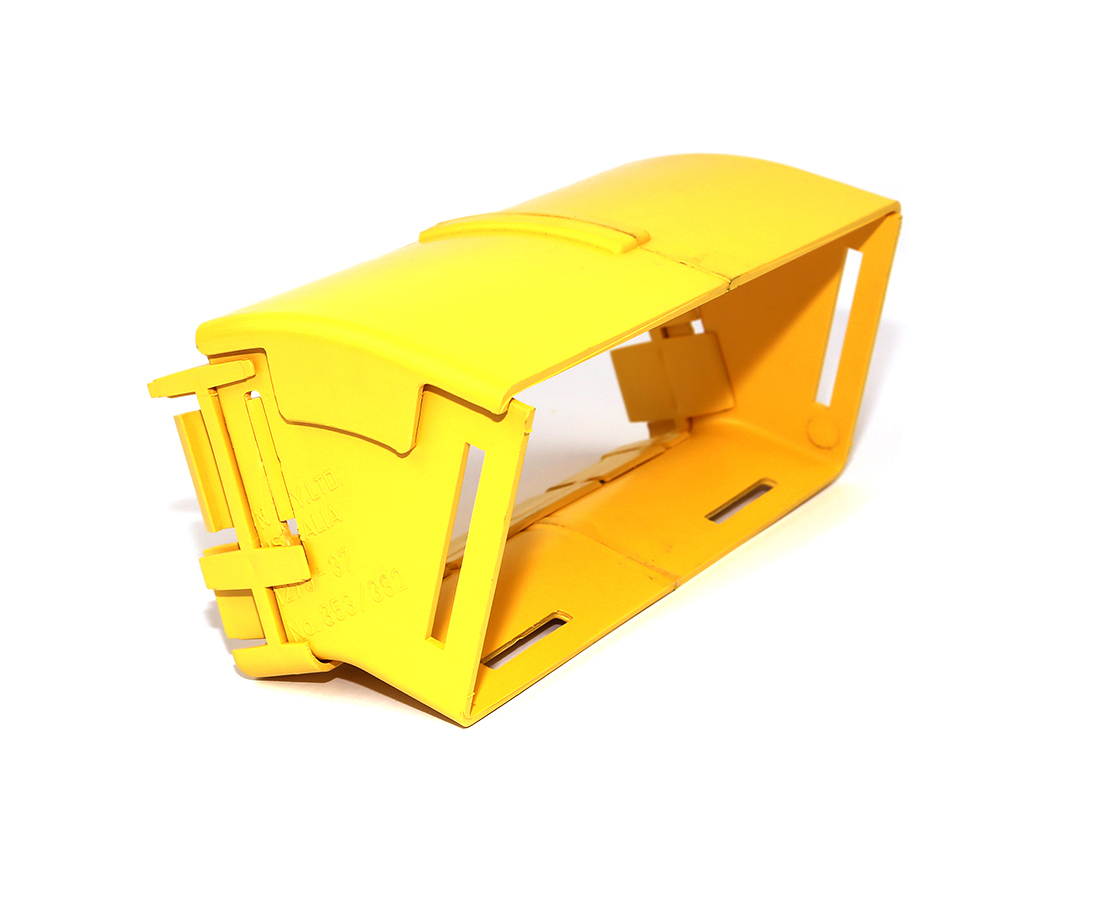

Fiber Raceway Elbow, 4x8, 30 Degree Down
Fiber Raceway Elbow, 4x8, 30 Degree Down, without Lid, Yellow
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRCE4YN3D is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRCE4YN3D | Yellow | 4.173 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 0.661 lbs |
|---|---|
| Overall Height | 6.889 in (174.981 mm |
| Overall Width | 6.889 in |
| Overall Length | 4.173 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Fire retardant plastic, Halogen free, UL94-VO rated |
|---|
Product Notes
| Notes | The 30-degree down elbow is a 220-mm angled lead off with an external lid, so that new optical fibre cords can be installed within the elbow and existing optical fibre cords removed, where necessary. This is usually used where an angular duct feed off or an alignment adjustment is needed. There are two 220-mm outlets. One is equipped with a glued-in, modified joiner. (The special joiner provides a smooth internal curve for optical fibre cords). The other side uses either: a standard joiner or a slotless joiner that are available separately. |
|---|
History
| Update and Revision | Revision Number: 0.72 Revision Date: 03-28-2024 |
|---|
