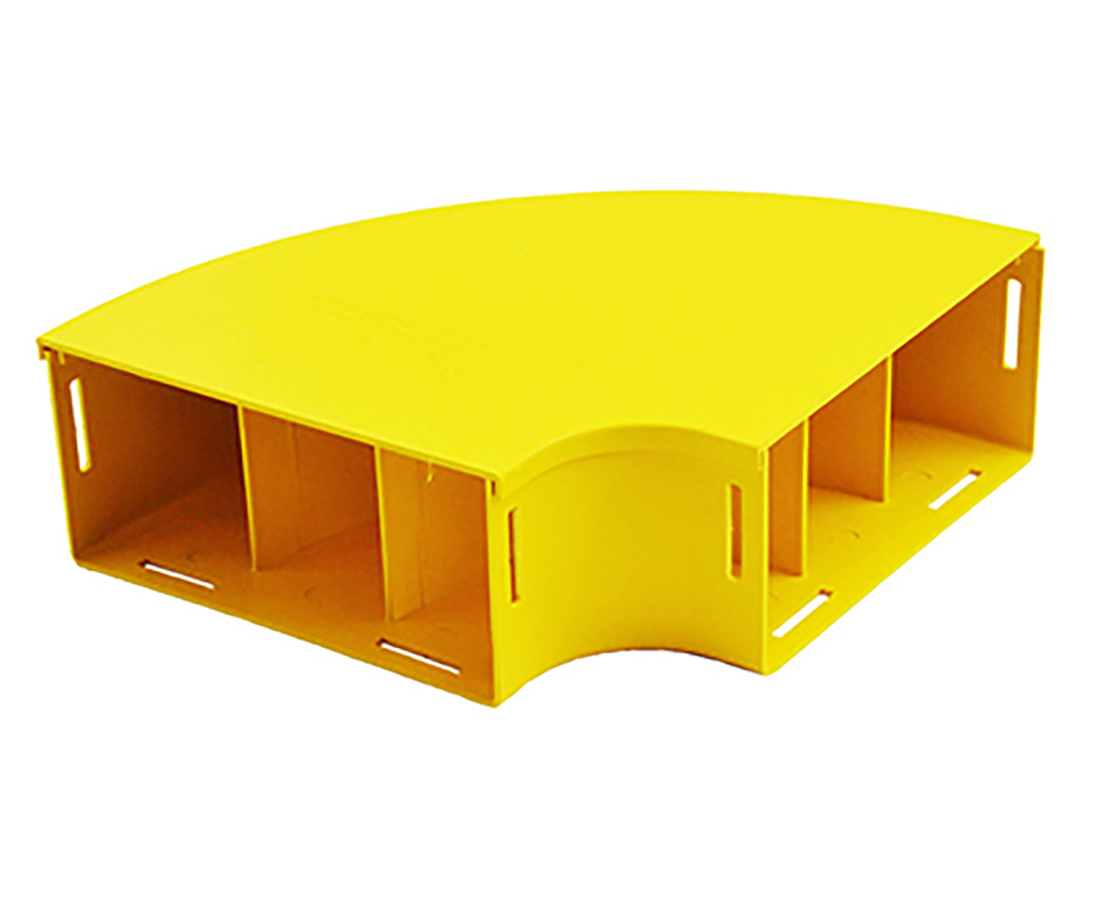

Fiber Raceway Elbow, 4x8, 90 Degree Horizontal, Lid
Fiber Raceway Elbow, 4x8, 90 Degree Horizontal, with Lid, Yellow
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRCE4YL9H is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRCE4YL9H | Yellow | 12.007 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 1.79 lbs |
|---|---|
| Overall Height | 4.133 in (104.978 mm |
| Overall Width | 12.007 in |
| Overall Length | 12.007 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Fire retardant plastic, Halogen free, UL94-VO rated |
|---|
Product Notes
| Notes | The 220mm elbow assembly is used to provide a horizontal, right angled bend (right or left hand) with standard 220mm straight ducting. It requires a standard joiner at each interface, which provides a smooth & strong joint. (Note: A slotless joiner is also available). |
|---|
History
| Update and Revision | Revision Number: 0.202 Revision Date: 03-28-2024 |
|---|
