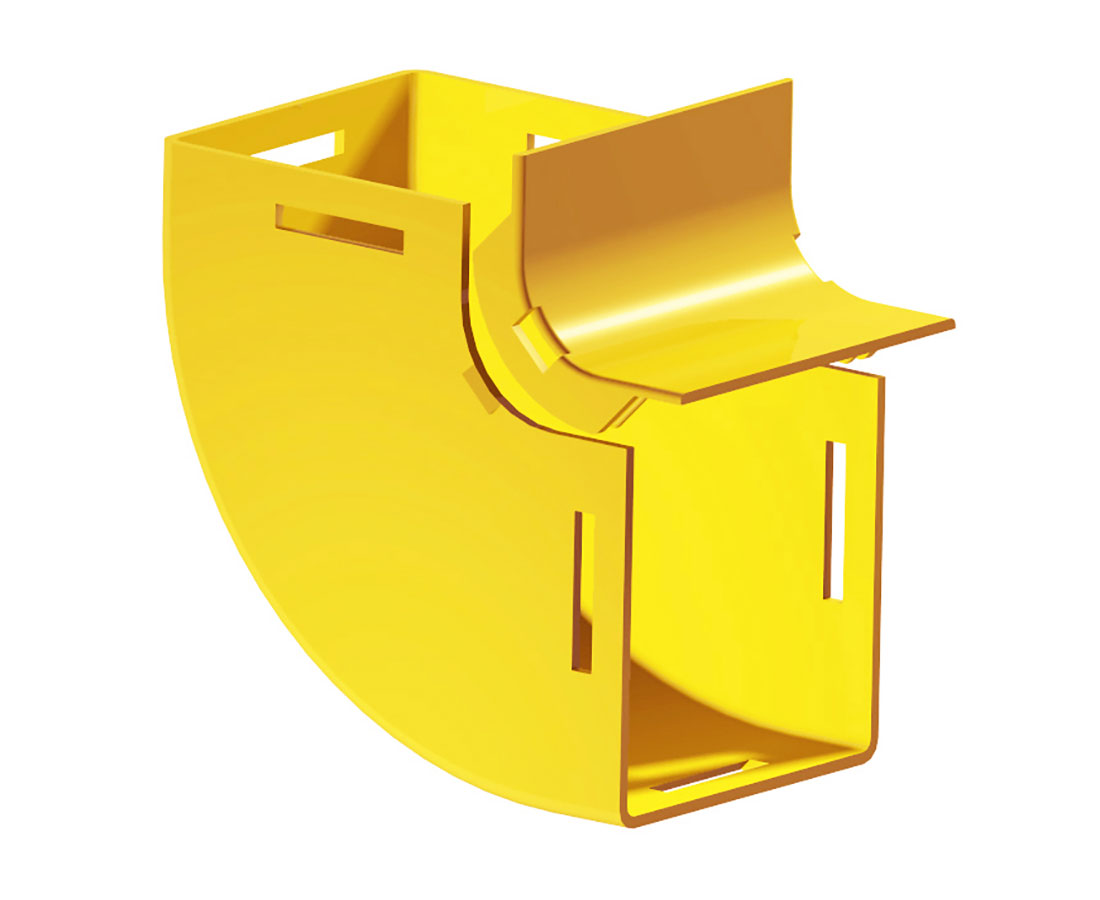

Fiber Raceway Elbow, 4x4, 90 Degree Up, Lid
Fiber Raceway Elbow, 4x4, 90 Degree Up, with Lid, Yellow
- Availability
- EMEA | Americas
- Status
- Active
- Orderable items
- 1
Part numbers
FRCE3YL9U is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| FRCE3YL9U | Yellow | 4.173 in | Order online |
Specifications
Product Overview
| Environmental Space | Indoor |
|---|
Construction
| Weight | 0.661 lbs |
|---|---|
| Overall Height | 6.889 in (174.981 mm |
| Overall Width | 6.889 in |
| Overall Length | 4.173 in |
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Material | Fire retardant plastic, Halogen free, UL94-VO rated |
|---|
Product Notes
| Notes | The 90-degree up elbow is a 100-mm vertical lead off with an internal lid, so that new optical fibre cords can be installed within the elbow and existing optical fibre cords removed, where necessary. This is usually used where optical fibre cords are to be installed vertically. There are two 100-mm outlets which use either: standard joiners or slotless joiners that are available separately. |
|---|
History
| Update and Revision | Revision Number: 0.79 Revision Date: 03-28-2024 |
|---|
